5.FUNCTION DESCRIPTIONS FANUC AC SPINDLE MOTOR αi series B-65280EN/05

- 320 -

5.10.3 Block Diagram

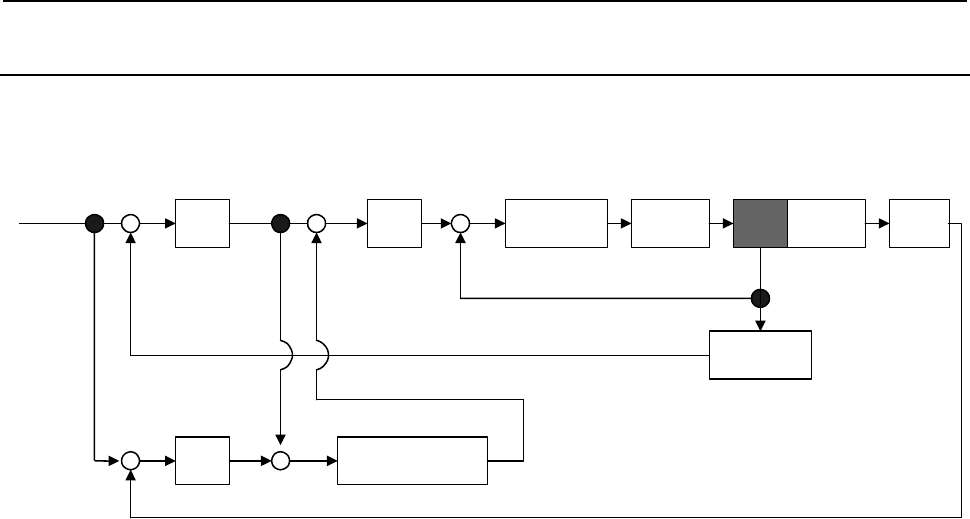

The following shows a block diagram of dual position feedback:

Velocity

control

Move

command

Velocity feedback

mplifier

Conversion

coefficient

Primary delay time

constant

Position feedback (from motor sensor)

ER1

Spindle motor

Position gain

Spindle

sensor

ER2

Spindle

Motor

sensor

Position feedback (from the spindle sensor)

As shown in the above diagram, error counter ER1 in the semi-closed

loop and error counter ER2 in the closed loop are prepared. The

primary delay time constant is expressed as follows:

Primary delay time constant = (1 + τ s)

-1

Here, consider actual error ER by time constant.

(1) When time constant τ = 0: (1 + τ s)

-1

= 1

ER = ER1 + (ER2 - ER1) = ER2 (error counter in the closed

loop)

(2) When time constant τ = ∞: (1 + τ s)

-1

= 0

ER = ER1 (error counter in the semi-closed loop)

From the primary delay time constant, control can be provided in the

semi-closed loop when a transition state is present, and control can be

provided in the closed loop when positioning is performed. According

to this principle, vibration during movement can be suppressed to a

level equivalent to the level obtained in the semi-closed loop.
