AC Spindle Motor Alpha i / Beta i Series Parameter manual Page 222

Parameter manual
3.I/O SIGNALS (CNC ↔ PMC) FANUC AC SPINDLE MOTOR αi series B-65280EN/05
- 198 -

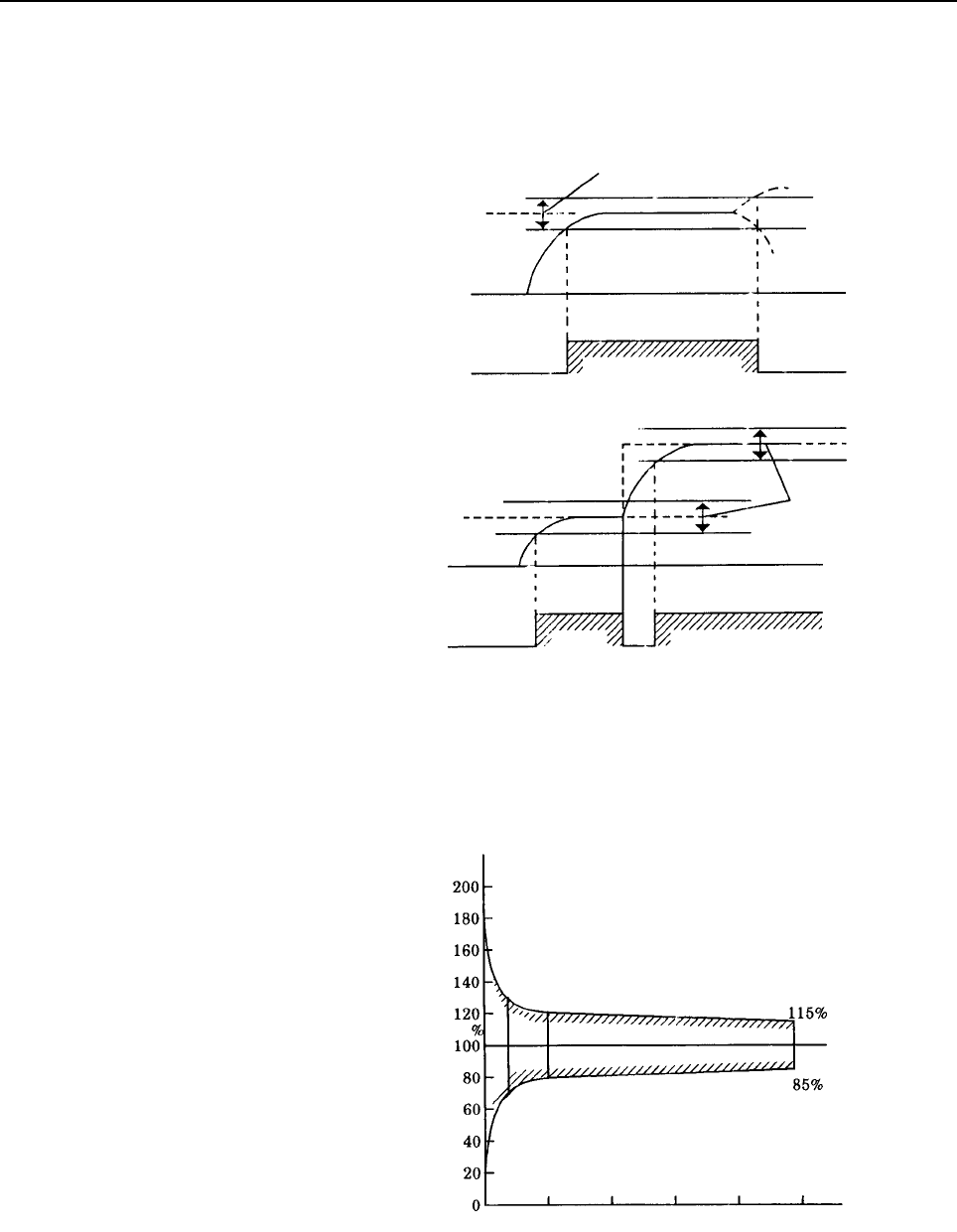

(d) Speed arrival signal (SARA)
(1) When the actual rotation speed of the spindle motor has reached
a predetermined range for a speed command, SARA is set to 1.
(2) The setting range is ±1 to 100% of a specified speed. When a
speed not higher than 10% of the maximum rotation speed is
specified, however, the detection range is wider than the set
range.
(3) The standard setting is ±15%. The detection range of this speed
arrival signal widens for low speeds as shown below.
(4) This signal is output when SFRA or SRVA is set to 1.
Detection range (see (2) and (3))
0
0
1 1
SARA
Detection range
(see (2) and (3))
Motor
speed
Specified
speed 2
0
1
SARA
Motor
speed
Specified
speed
Specified
speed 1
Detection range (%) of speed
(%)
333 1000 min
–1
177%(at 80min
–1
)
23%(at 80min
–1
)
Speed command
