B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 5.FEEDBACK SENSOR

- 93 -

5.1.2 Connecting a Pulsecoder

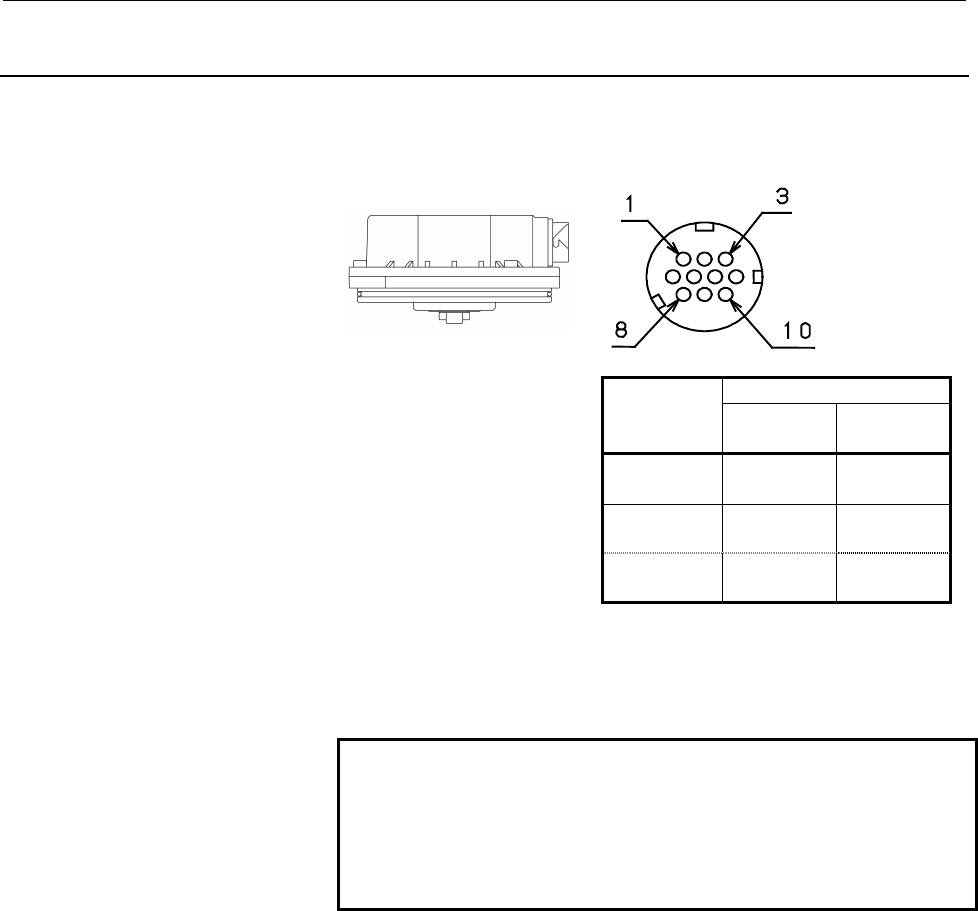

Layout of connector pins

The signals of the αi series Pulsecoder are arranged as follows:

→

Pin No.

Signal

name

αα

α1000i

αα

α16000iA

αα

α1000iI

RD 6 6

*RD 5 5

+5V 8,9 8,9

0V 7,10 7,10

FG 3 3

+6V 4 -

Connector kits

For information on connectors and crimping jigs required for creating

a feedback cable, see Subsec. 2.2.3.

NOTE

If the motor is movable or a flexible cable is

connected to a connector, excessive force may be

applied to the connector. In this case, fix the

feedback cable to prevent the connector from being

broken.

Connecting a Pulsecoder to an amplifier

For cables connecting a Pulsecoder and amplifier, refer to "FANUC

SERVO AMPLIFIER αi series Descriptions (B-65282EN)."
