2.2.3.6 Connectors on the cable side (for fan : models α
αα
α50is(with fan)
to α
αα
α1000HVis and α
αα
α40i(with fan))
The models α50is (with fan) to α1000HVis and α40i (with fan) use a
dedicated connector to connect the cooling fan and power supply for
the fan.
This connector is dripproof. It is connected by soldering, so no special
tool is required.
This connector differs from conventional connectors used for the α
series. The following subsection explains this connector.
Consider soldering, cable clamp, and voltage drop. Also note that
there are restrictions.

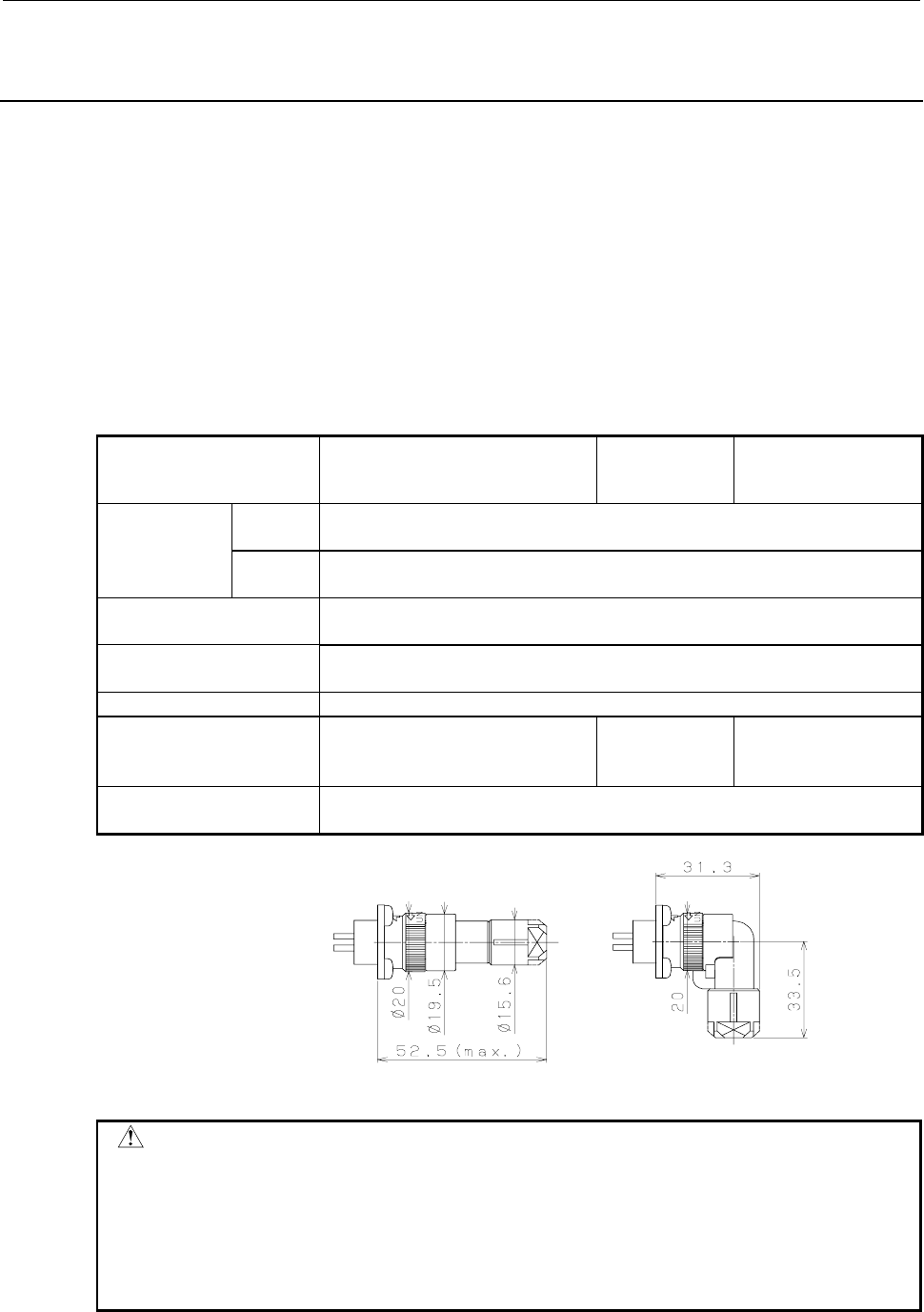

Specifications of connectors for fan
(models α
αα
α50is(with fan) to α
αα
α1000HVis and α
αα
α40i(with fan))
Motor models
α50/3000i
S (with fan)
α40/3000i (with fan)
α300/2000iS
α500/2000iS
α300/2000HViS
α500/2000HViS
α1000/2000HViS
Straight
type
JN2DS04FK2X (Japan Aviation Electronics Industry)
A06B-6114-K214#S (FANUC specification)
Connector
specifications
Elbow
type
JN2FS04FK2X (Japan Aviation Electronics Industry)
A06B-6114-K214#E (FANUC specification)
Applicable wire size
AWG#16 or less (1.25mm
2
or less)
* Solder pot diameter φ1.9
Insulation external
diameter
φ2.7 or less
Compatible cable O.D. φ6.5 to 8.0
Example of applicable wire
300-V two-conductor vinyl heavy-
duty power cord cable VCTF (JIS
C 3306) or equivalent
300-V rated
cable
600-V rated cable
(300/500-V rated
cable: IEC standard)
Applicable wire size and
cable length
0.5mm
2
or more (AWG#20)
Straight type
Elbow type
CAUTION
1 The same body is used for the brake and fan connectors. They differ in the
key position to prevent an improper insertion.
2 If the cable length is longer than or equal to 50 m, take measures such as
installation of repeaters so that the sum of wire resistance (for both ways)
becomes 1.5Ω or less.
3 For details of brakes, see Chapter 7, "BUILT-IN BRAKE."
