B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 2.HOW TO USE SERVO MOTORS

- 19 -

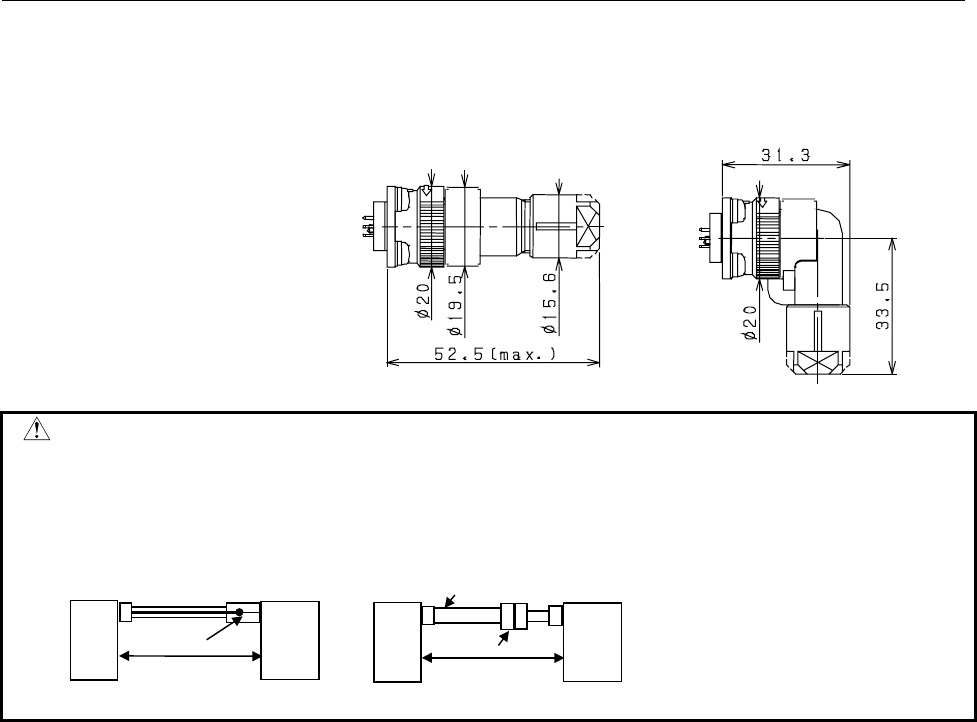

The outside dimensions of each type of connector when engaged are

shown below:

CAUTION

1 In case that the cable is prepared by MTB, total resistance of 5V and 0V must be less than 2Ω.

2 Pulsecoder side connector can accept maximum 0.5mm

(wire construction 20/0.18 or 104/0.08,

diameter φ1.5 or less) wire and sheath diameter is φ5.7 to φ8.0. In case of using thicker wire or

cable, take measures described below.

The total resistance of 5 V

and 0 V must be less than 2Ω.

[Case 1] Cable conductor exceeds 0.5mm

. [Case 2] Sheath diameter of exceeds

Soldering or crimping

Servo motor

SVM

Connector

Cable thicker than

SVM Servo motor

The total resistance of 5 V and

0 V must be less than 2Ω.

3 In case of incremental Pulsecoder, 6V is not necessary to be connected.

Straight type

Elbow type
