AC Servo Motor Alpha i/is Series Descriptions Page 193

Descriptions

Page of 368

/ 368

B-65262EN/03 FANUC AC SERVO MOTOR αi SERIES 3.SPECIFICATIONS AND CHARACTERISTICS

- 175 -

odel Specificatio

A06B-0257-B

□

Data sheet

Parameter Symbol Unit

Stall Torque

(*)

Ts 38 Nm

388 kgfcm

Stall Current

(*)

Is 32.3 A (rms)

Rated Output

(*)

Pr 6.0 kW

8.0 HP

Rating Speed

Nr 2000

min

-1

Maximum Speed

Nmax 3000

min

-1

Maximum Torque

(*)

Tmax 130 Nm

1330 kgfcm

Rotor Inertia

Jm 0.022

kgm

0.224

kgfcms

Rotor Inertia (with Brake)

Jm 0.0226

kgm

0.231

kgfcms

Torque constant

(*)

Kt 1.18 Nm/A (rms)

12.0 kgfcm/A (rms)

Back EMF constant (

１

１１

１

phase)

(*)

Ke 41

V (rms)/1000 min

-1

Kv 0.39 V (rms)sec/rad

Armature Resistance (1 phase)

(*)

Ra 0.068

Mechanical time constant tm 0.003 s

Thermal time constant tt 75 min

Static friction Tf 1.8 Nm

18 kgfcm

Weight w51 kg

Weight (with Brake) w57 kg

Maximum Current of Servo Amp. Imax 160 A (peak)

Value

(*) The values are the standard values at 20

℃

and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting,

and input voltage of the digital servo software. (The above figures show average values.)

These values may be changed without notice.

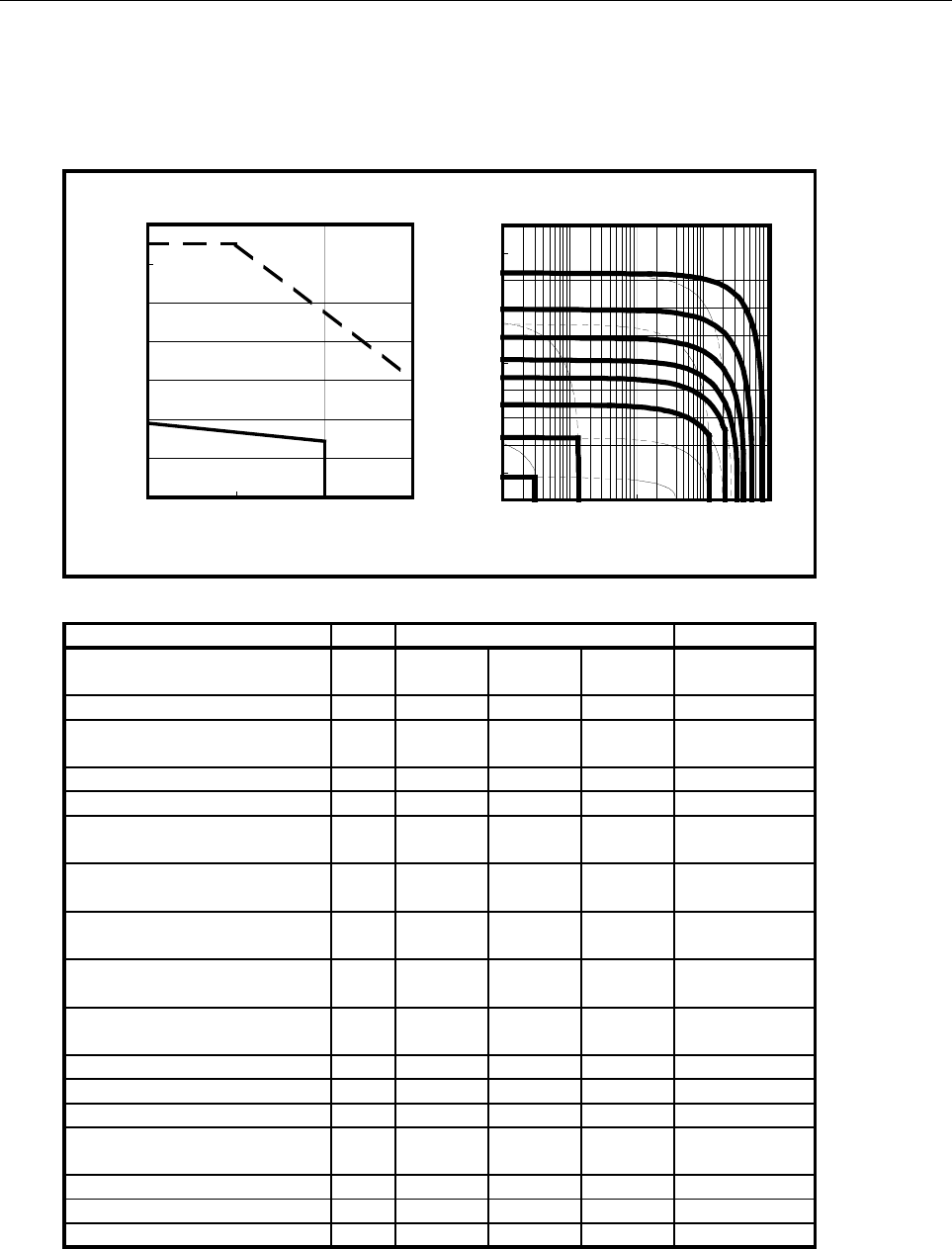

@40/3000*

Over Load Duty

100

1 10 100 1000 10000

"On" time (sec)

Duty (time%)

Speed-Torque Characteristics

100

120

140

0 1000 2000 3000

Speed (min

-1

)

Torque (Nm)

Intermitting

Operation

110%

120%

130%

140%

150%

170%

210%

MAX

Continuous

Operation
