2.HOW TO USE SERVO MOTORS SPECIFICATIONS FOR THE αiS/αi SERIES B-65262EN/03

- 30 -

Direct connection using a flexible coupling

Direct connection by a flexible coupling has the following advantages

over connection using gears:

• Even if the angle of the motor shaft to the ball screw changes, it

can be compensated to a certain extent.

• Because a flexible coupling connects elements with less

backlash, driving noise from joints can be significantly

suppressed.

However, this method has the following disadvantages:

• The motor shaft and the ball screw must not slide from each

other in the radial direction (for single coupling).

• Loose assembly may result in lower rigidity.

When the motor shaft needs to be connected directly to the ball screw,

connecting them using a flexible coupling facilitates adjustment and

installation of the motor.

To use a single coupling, the machine needs to be designed so that the

centers of the motor shaft and the ball screw are aligned. (In the same

way as with a rigid coupling, the use of a single coupling demands

that there be almost no relative eccentricity between the axes.)

If it is difficult to align the centers, a double coupling needs to be

employed.

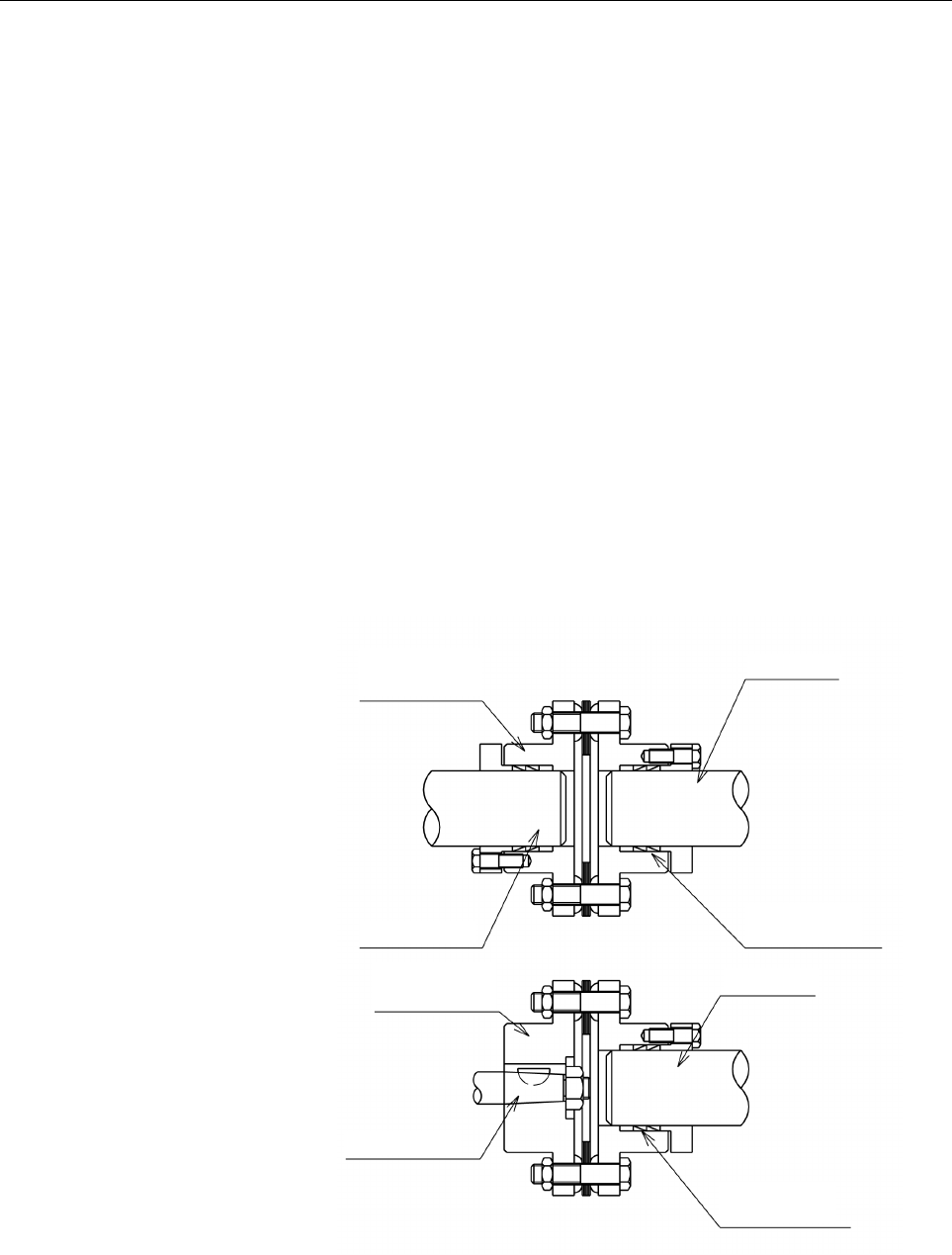

Flexible

coupling

Ball screw

Motor shaft

Locking

element

Flexible

coupling

Ball screw

Motor shaft

Locking

element
