2.HOW TO USE SERVO MOTORS SPECIFICATIONS FOR THE αiS/αi SERIES B-65262EN/03

- 8 -

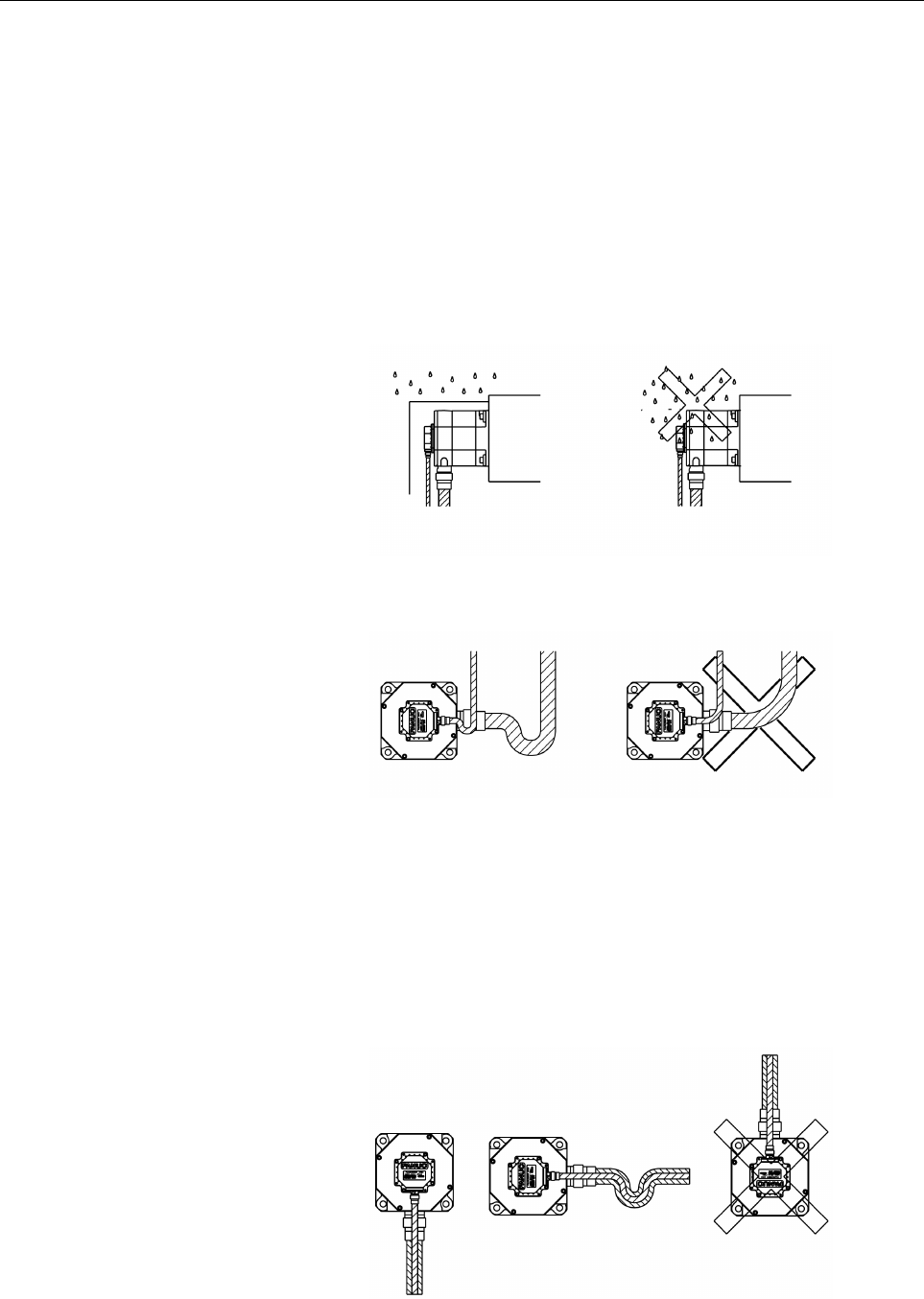

Drip-proof environment

The level of motor protection is such that a single motor unit can

satisfy IP65 of the IEC standard. (The fan-equipped models is

excluded.) However, this standard relates only to short-term

performance. So, note the following when using the motor in actual

applications:

• Protect the motor surface from the cutting fluid or lubricant.

Use a cover when there is a possibility of wetting the motor

surface. Only the telescopic cover of the sliding part can not

completely prevent leakage of the cutting fluid. Pay attention to

the drop along the structure body, too.

• Prevent the cutting fluid from being led to the motor through the

cable. When the motor connector is used in the up position, put a

drip loop in the cable.

• When the motor connector is up, the cutting fluid is collected in

the cable connector through the cable. Turn the motor connector

sideways or downward as far as possible. Most of the defects

caused by the cutting fluid have occurred in the cable connector.

The standard receptacle on the motor side is waterproof. If the

cable connector will be subjected to moisture, it is recommended

that an R class or waterproof plug be used. Suitable plugs are

listed in the cable plug combination recommendations in Chapter

8. (The standard MS plug is not waterproof; water is liable to

enter the pin section.)
