B-65262EN/03 SPECIFICATIONS FOR THE αiS/αi SERIES 2.HOW TO USE SERVO MOTORS

- 37 -

The above values can be obtained by calculating the elastic

deformation for each section of the driving system. The machine

should be designed so that the value of this natural frequency [Hz]

will be more than or equal to the value of the position loop gain [sec

]. For example, when setting 20 [sec

-1

] as the value of position loop

gain, natural frequency of machine system must be more than 20 [Hz].

In this case, the response of the control system becomes a problem for

extremely small amounts of movement. Consequently, the natural

frequency should be calculated from the rigidity at extremely small

displacement such as 10 [µm] or less.

Stick slip

If machine movement causes a stick slip, the control system does not

operate normally. That is, it does not stop where it is supposed to, but

a phenomenon occurs where it goes beyond and then back within an

extremely small range (hunting).

To avoid stick slip, the machine rigidity should be increased, or

friction characteristics of the sliding surface should be improved.

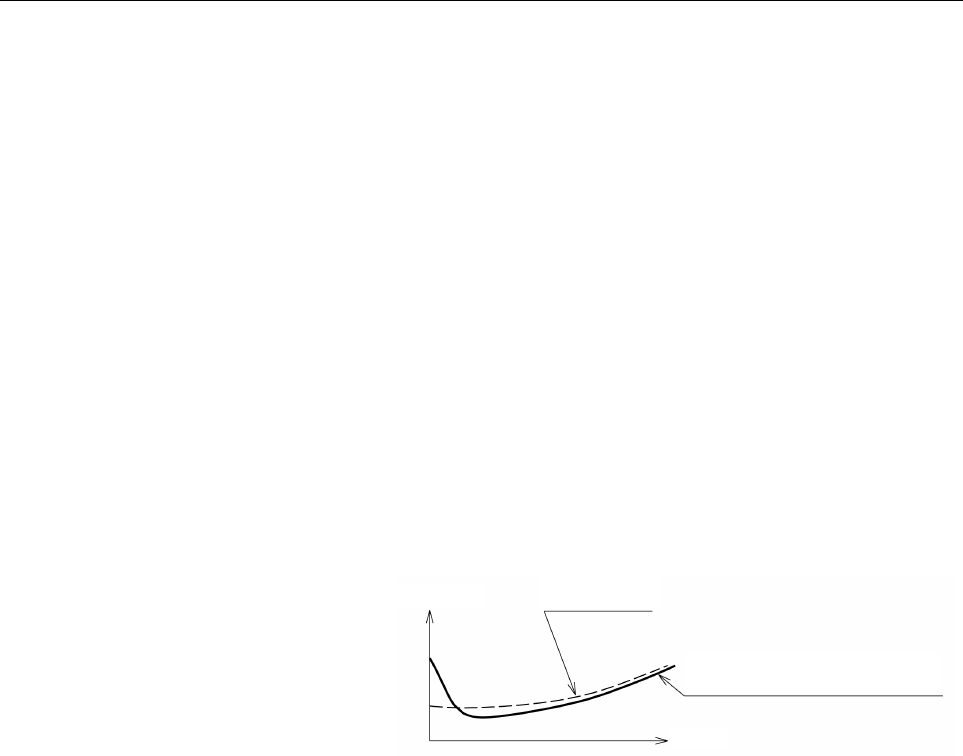

When the sliding surface friction characteristic is as in the figure

below, stick slip occurs easily.

Friction coefficient

Proper friction

characteristic

Friction characteristic which

causes stick slip

Speed

Value of machine overrun (Damping coefficient of machine system)

When the machine is floated by static pressure, etc., there are cases

where the machine keeps on moving within the range of backlash

although the motor shaft has stopped. If this amount is large, hunting

will also occur. To avoid this, backlash should be reduced (especially

the backlash of the last mass where position sensor is mounted) and

the appropriate damping should be considered.
