6.BUILT-IN BRAKE SPECIFICATIONS FOR THE αiS/αi SERIES B-65262EN/03

- 102 -

6.2.2 Connection of the Brakes

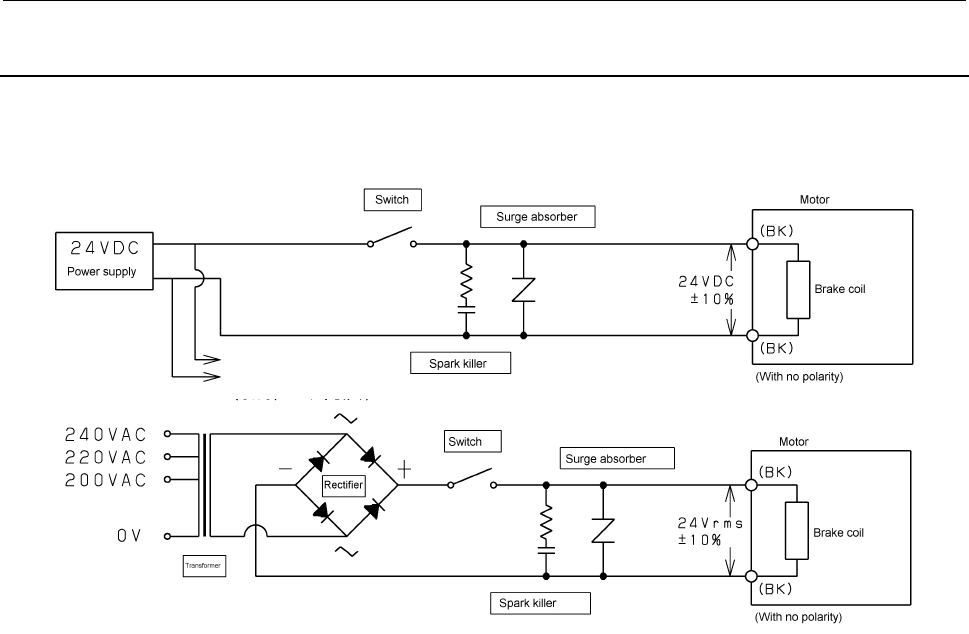

Configure a brake circuit by referencing the following brake

connection diagrams and the recommended parts shown in the

following section.

To other 24 VDC peripheral devices

(such as a relay and solenoid)

(CNCs and amplifiers not included)

1 Use a 24 VDC power supply as the power supply for the αi

series servo motor brake. Power (equivalent to 24 Vrms)

produced by full-wave rectification after transforming

commercial power (50 Hz/60 Hz) is also available.

2 Use a power supply separate from the 24-V power supply for the

CNC and amplifier as the power supply for the brake. If the

control power supply is also used for the brake, an CNC or

amplifier malfunction or another danger may occur. The power

supply for a relay, solenoid, or another peripheral device can be

used for the brake. Be careful of the power capacity and changes

in voltage due to changes in load.

3 For full-wave rectification, transform the secondary side voltage

obtained during energization of the brake into approximately 29

VAC by taking voltage drop in the rectifier or cable into account.

In this case, check the power capacity and power voltage

fluctuations sufficiently and then make sure the fluctuations of

the voltage applied to the brake during energization falls within

24 Vrms ±10%. Switch the transformer's primary side input to a

desired position such as 100-110-120 VAC or 200-220-240

VAC.

4 If the contact is installed on the DC side (at the position shown

in the figure), the life of the contact is generally shortened due to

the surge voltage at brake off. Provide an adequate contact

capacity and always use a surge absorber and spark killer for

protecting the contact.

5 You can use either positive or negative power pin to connect the

brake because the brake coil is nonpolarized.

6 Use a shielded cable as required.
