3.2.3 Calculating the load inertia

Unlike the load torque, an accurate load inertia can be obtained just

by calculation.

The inertia of all objects moved by the revolution of a driving motor

forms the load inertia of the motor. It does not matter whether the

object is rotated or moved along a straight line. Calculate the inertia

values of individual moving objects separately, then add the values

together, according to a rule, to obtain the load inertia. The inertia of

almost all objects can be calculated according to the following basic

rules:

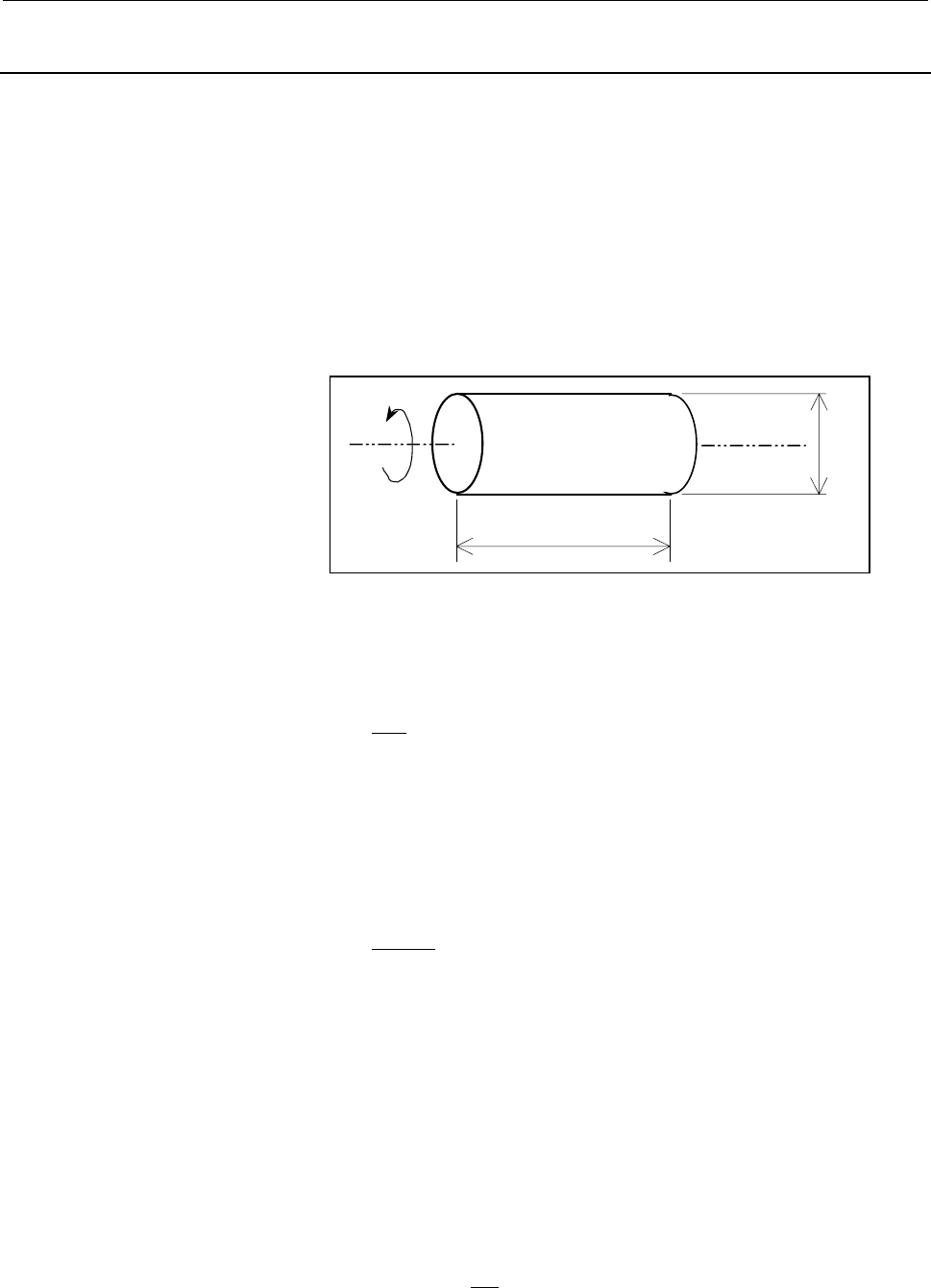

Inertia of a cylindrical object (ball screw, gear, coupling, etc.)

The inertia of a cylindrical object rotating about its central axis is

calculated as follows:

SI unit

][

mkg

Jb ⋅=

πγ

: Inertia [kg⋅m

]

: Weight of the object per unit volume [kg/m

]

: Diameter of the object [m]

: Length of the object [m]

Gravitational system of units

][

98032

scmkgf

Jb ⋅⋅

πγ

: Inertia [kgf⋅cm⋅s

]

: Weight of the object per unit volume [kg/cm

]

: Diameter of the object [cm]

: Length of the object [cm]

Example)

When the shaft of a ball screw is made of steel

(γ=7.8×10

[kg/m

]), inertia Jb of the shaft is calculated as

follows:

When D

=0.040[m], L

=1[m],

Jb=7.8×10

×π÷32×0.040

×1=0.00196[kg⋅m

] (=0.0200[kgf⋅cm⋅s

])

)

8.9

100

scmkgfmkg ⋅⋅=⋅
