AC Servo Motor Alpha i/is Series Descriptions Page 188

Descriptions

Page of 368

/ 368

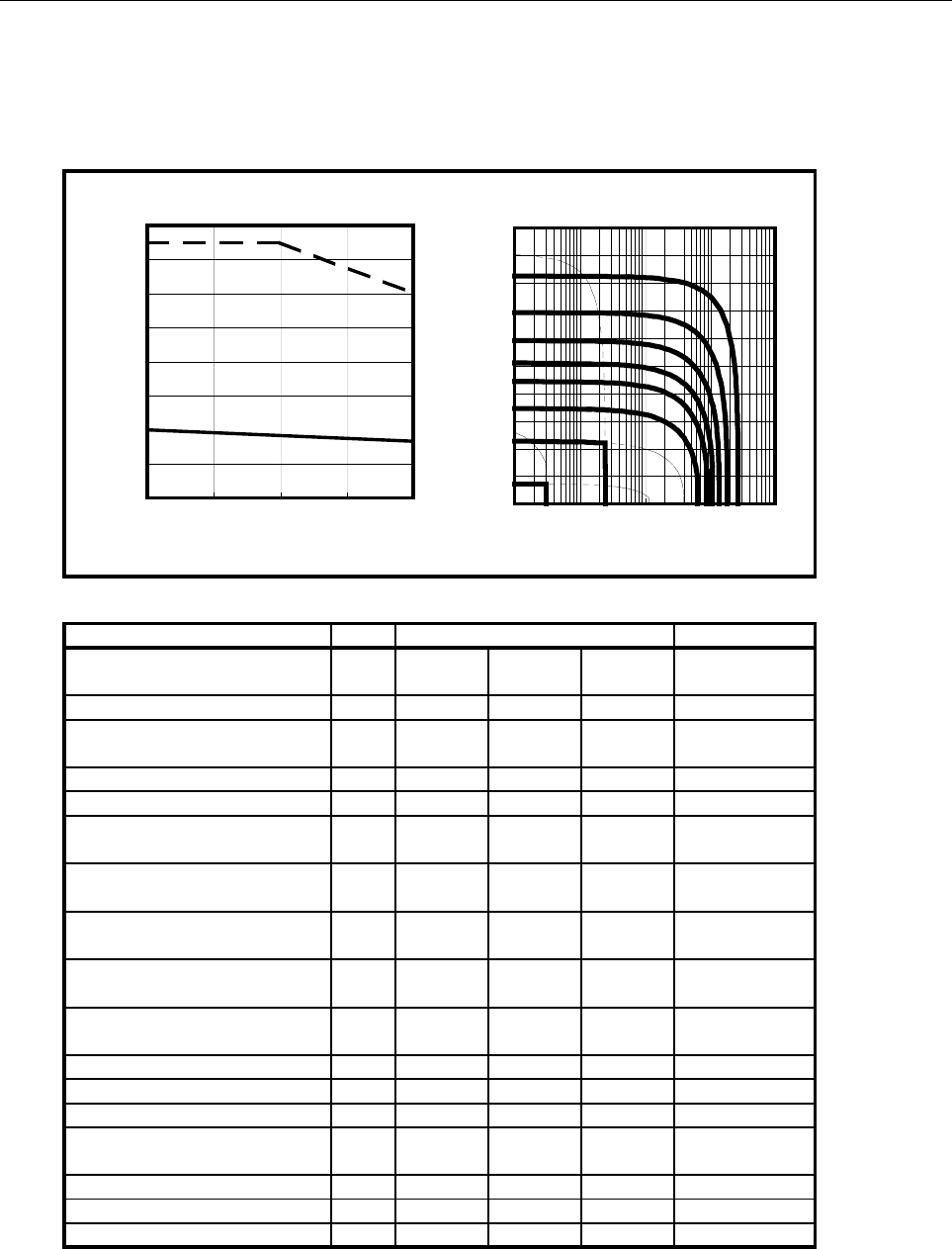

3.SPECIFICATIONS AND CHARACTERISTICS FANUC AC SERVO MOTOR αi SERIES B-65262EN/03

- 170 -

odel Specificatio

A06B-0223-B

□

Data sheet

Parameter Symbol Unit

Stall Torque

(*)

Ts 4 Nm

41 kgfcm

Stall Current

(*)

Is 7.7 A (rms)

Rated Output

(*)

Pr 1.4 kW

1.9 HP

Rating Speed

Nr 4000

min

-1

Maximum Speed

Nmax 4000

min

-1

Maximum Torque

(*)

Tmax 15 Nm

153 kgfcm

Rotor Inertia

Jm 0.00135

kgm

0.0138

kgfcms

Rotor Inertia (with Brake)

Jm 0.00142

kgm

0.0145

kgfcms

Torque constant

(*)

Kt 0.52 Nm/A (rms)

5.3 kgfcm/A (rms)

Back EMF constant (

１

１１

１

phase)

(*)

Ke 18

V (rms)/1000 min

-1

Kv 0.17 V (rms)sec/rad

Armature Resistance (1 phase)

(*)

Ra 0.40

Mechanical time constant tm 0.006 s

Thermal time constant tt 25 min

Static friction Tf 0.3 Nm

3kgfcm

Weight w7.5 kg

Weight (with Brake) w9.7 kg

Maximum Current of Servo Amp. Imax 40 A (peak)

Value

(*) The values are the standard values at 20

℃

and the tolerance is ±10%.

The speed-torque characteristics very depending on the type of software, parameter setting,

and input voltage of the digital servo software. (The above figures show average values.)

These values may be changed without notice.

@4/4000*

Over Load Duty

100

1 10 100 1000 10000

"On" time (sec)

Duty (time%)

Speed-Torque Characteristics

0 1000 2000 3000 4000

Speed (min

-1

)

Torque (Nm)

Intermitting

Operation

110%

120%

130%

140%

150%

170%

210%

MAX

Continuous

Operation
