(2)Tool figure data
The tool figure data is shown below.
For details of the tool figure data, see Section 2 in Chapter V.
[Turning tools]
Center drill, drill
Tool for grooving and residual
machining
NOSE ANGLE AN =. . . . . . .
DRILL DIAMETER DD =. . . .
NOSE RADIUS RN =. . . . . . . . .
CUTTING EDGE AC =. . . . . . . .
NOSE ANGLE AN =. . . . . . . . . .
VIRTUAL TOOL POS. XN =. . .
ZN =
Tool for threading General–purpose tool
CUTTING EDGE AC =. . . . .
NOSE ANGLE AN =. . . . . . .
VIRTUAL TOOL POS. XN =
ZN =
NOSE RADIUS RN =. . . . . . . . .
CUTTING EDGE AC =. . . . . . . .
NOSE ANGLE AN =. . . . . . . . . .
PROTECTION ANGLE AP =. . .
VIRTUAL TOOL POS. XN =. . .
ZN =
Reamer Tap
TOOL DIAMETER DT =. . . .
CUT LENGTH LT =. . . . . . .
PECK DEPTH LE =. . . . . . .
TOOL DIAMETER DT =. . . . . . .
CUT LENGTH LT =. . . . . . . . . .
PECK DEPTH . . . . . . . . . . . . . . . . .
LE =
PITCH PT =. . . . . . . . . . . . . . . . .
Finger
VIRTUAL TOOL POS. XN =

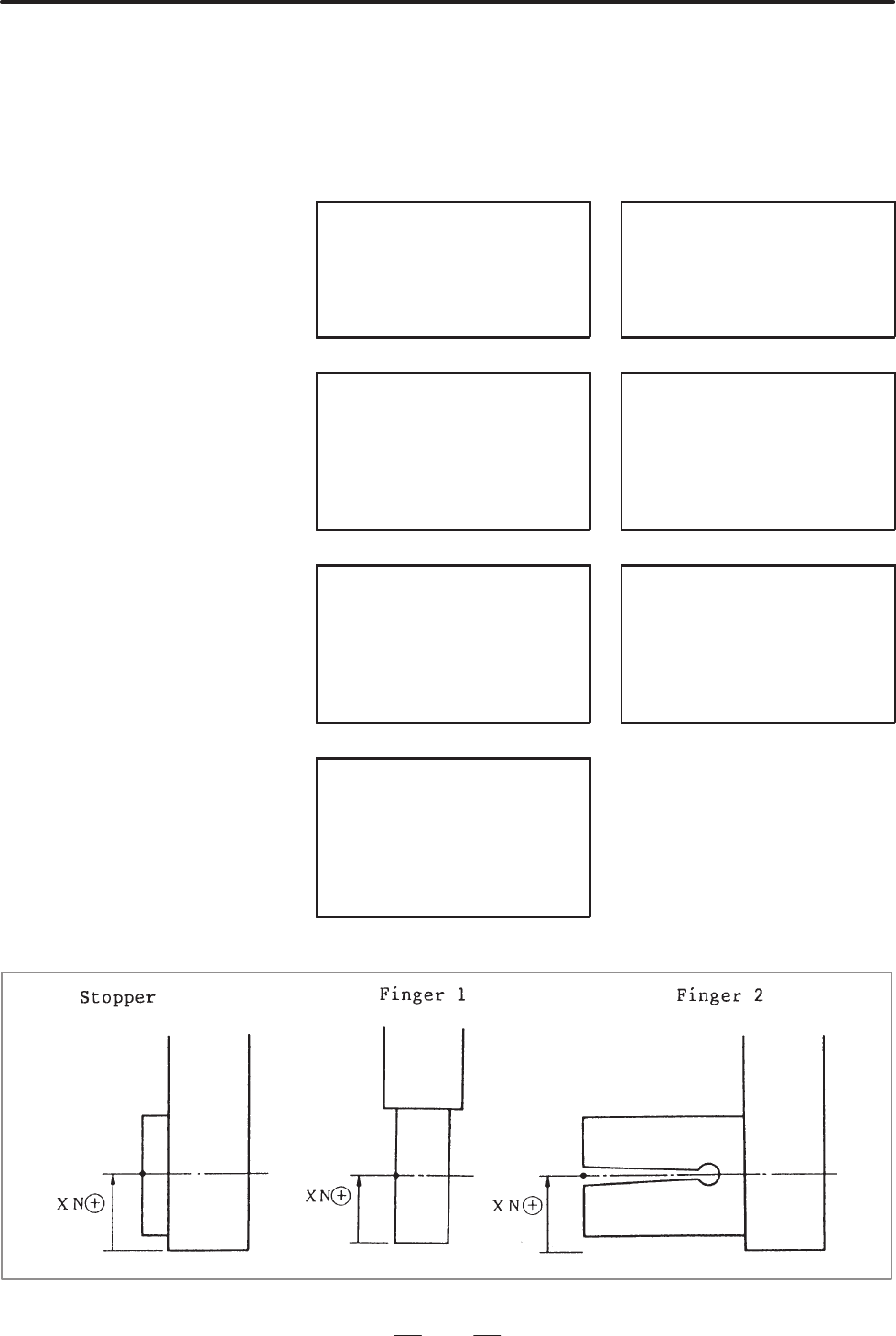

As the XN value of a finger bit, enter the dimensions shown below:
