Conversional Automatic Programming (CAP) Operators manual Page 159

Operators manual
PROGRAMMING AND
OPERATION BY SYMBOLIC FAPT
B–61804E–2/05
3. EXECUTION OF
SYMBOLIC FAPT
148
(e) NC data output for a single turret
When outer surface roughing is defined for turret 1 only, for
example, the NC data is output as shown below.
A waiting M code is output immediately before the program end
(MTF function table No. 2001).
In this case, the value of system parameter No. 730 (initial value
of the waiting M code) is output as a waiting M code.

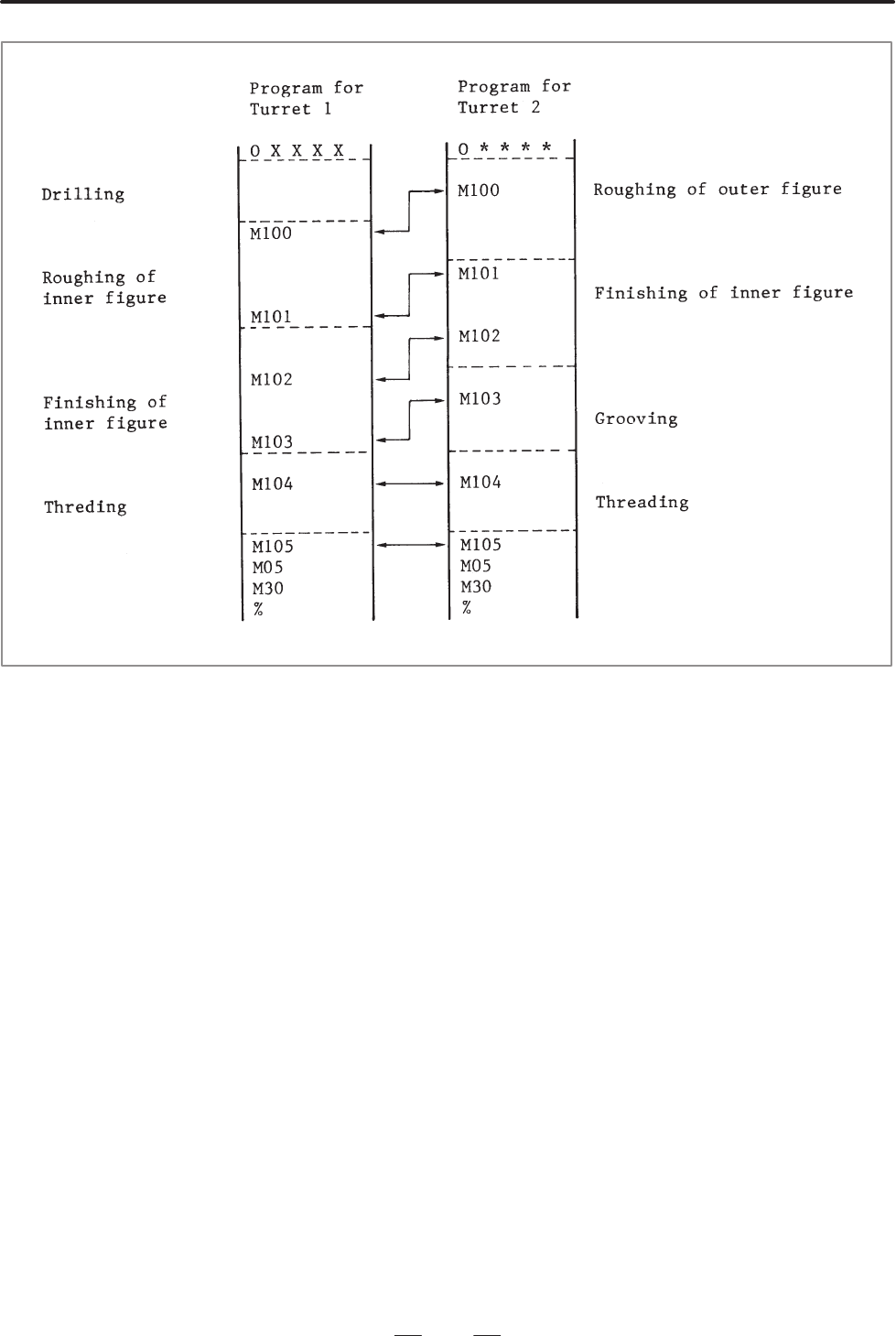

Turret 1 NC data Turret 2 NC data
OXXXX ; O**** ;
NC data for outer surface roughing
TXX00 ;
M01 ;
M100 ; ²Waiting M code output ³ M100 ;
M05 ; ²Program end (MTF2001) ³ M05 ;
M30 ; M30 ;
%%
