Y–AXIS FAPT FUNCTION
B–61804E–2/05
2. PART FIGURE DEFINITION
(MENU 2)
236
POSITION ANGLE: G1 = Position of the first phase (angle)
G2 = Position of the second phase (angle)
G3 = Position of the third phase (angle)
G4 = Position of the fourth phase (angle)
G5 = Position of the fifth phase (angle)
G6 = Position of the sixth phase (angle)

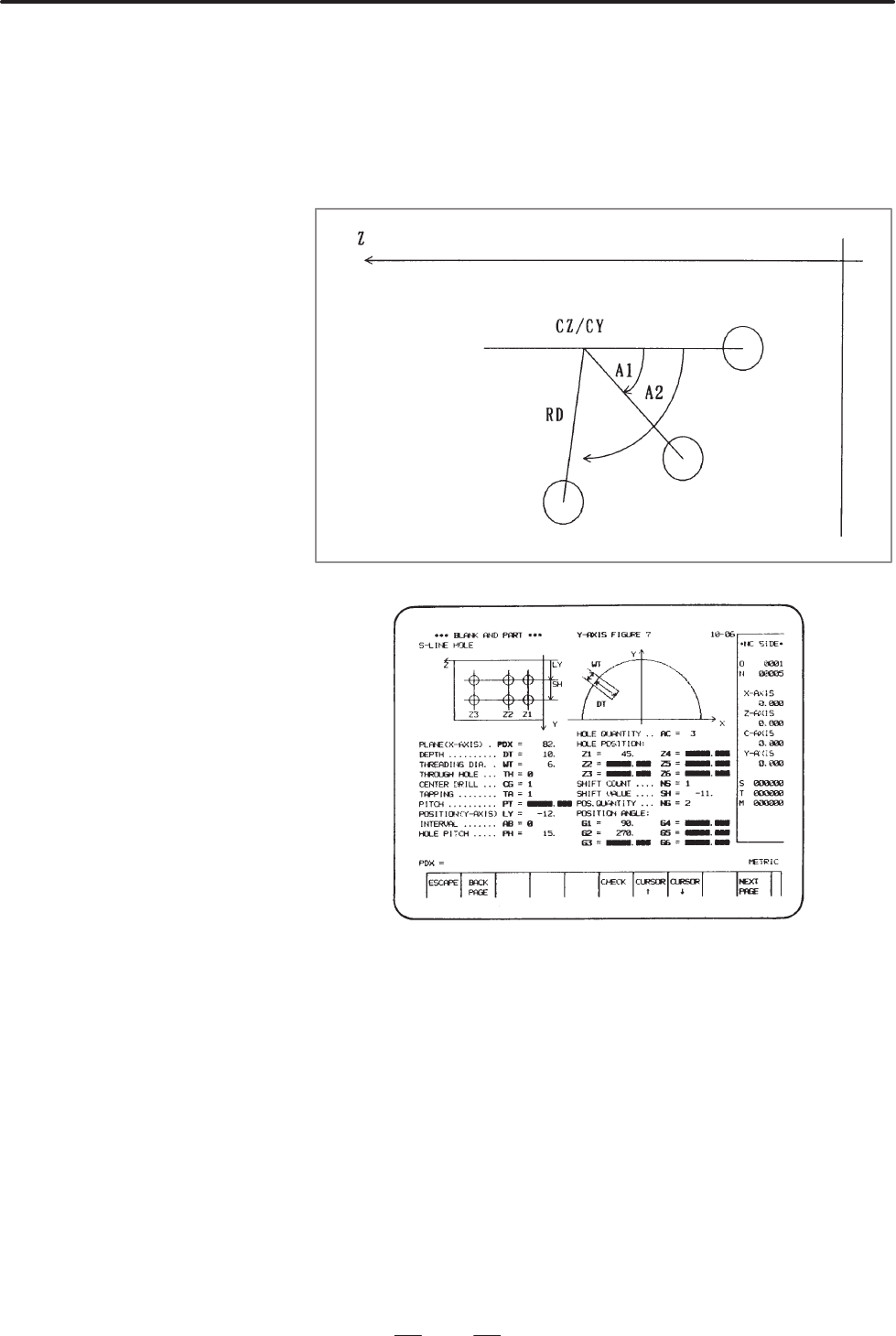

(5)Screen for specifying holes on a line on the side face
Specify the following values:
PLANE (X–AXIS): PDX=Position of the drilling plane (diameter)
DEPTH: DT = Hole depth
THREADING DIA: WT = Hole diameter
THROUGH HOLE: TH = 1 for a through hole, 0 for a blind hole
CENTER DRILL: CG = 1 for center drilling, 0 for other
machining
TAPPING: TA = 1 for tapping, 0 for other machining
PITCH: PT = Pitch of tapping
POSITION (Y–AXIS): LY = Position of the line (radius)
INTERVAL: AB = Whether multiple holes are drilled at
regular intervals (0 for regular intervals,
1 for irregular intervals)
Previous page
Next page
