Y–AXIS FAPT FUNCTION

B–61804E–2/05

2. PART FIGURE DEFINITION

(MENU 2)

240

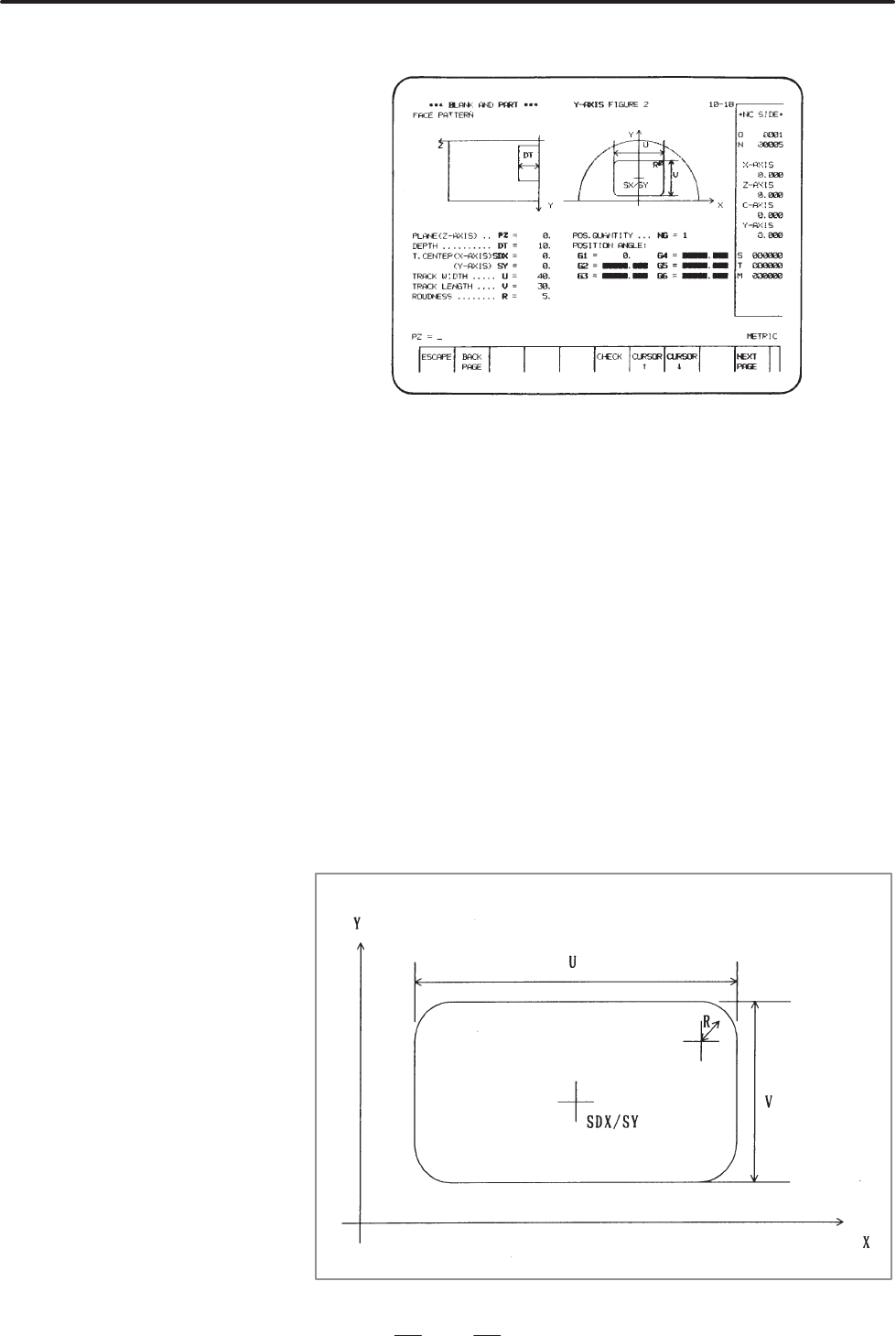

(7)Screen for specifying a pattern on the end face

Specify the following values:

PLANE (Z–AXIS): PZ = Position of the cutting plane

DEPTH: DT = Cutting depth

T.CENTER (X–AXIS): SDX=Center of the rectangle (diameter)

(Y–AXIS): SY = Center of the rectangle (radius)

TRACK WIDTH: U = Width of the rectangle (radius)

TRACK LENGTH: V = Length of the rectangle (radius)

ROUNDNESS: R = Radius if the corners are rounded

POS.QUANTITY: NG = Number of phases (up to 6)

POSITION ANGLE: G1 = Position of the first phase (angle)

G2 = Position of the second phase (angle)

G3 = Position of the third phase (angle)

G4 = Position of the fourth phase (angle)

G5 = Position of the fifth phase (angle)

G6 = Position of the sixth phase (angle)
