Conversional Automatic Programming (CAP) Operators manual Page 89

Operators manual

Page of 799

/ 799

PROGRAMMING AND

OPERATION BY SYMBOLIC FAPT

B–61804E–2/05

3. EXECUTION OF

SYMBOLIC FAPT

Number 1 element ± SDX = 0 SZ = 0 PE =1

DX = 20

Number 2 element ² Z = 10

Number 3 element ¾ DX = Undefined Z = Undefined TN = 0

A = 45

Number 4 element ² Z = 30 Z = 20 TN = 0

Number 5 element ± DX = 20

Number 6 element ² Z = 25

Number 7 element ´ DX = 40

Number 8 element ² Z = 30

Number 9 element

The following explanation is based on an example where the above

mentioned data has been defined and one copy is required from No.3

element to No.8 element.

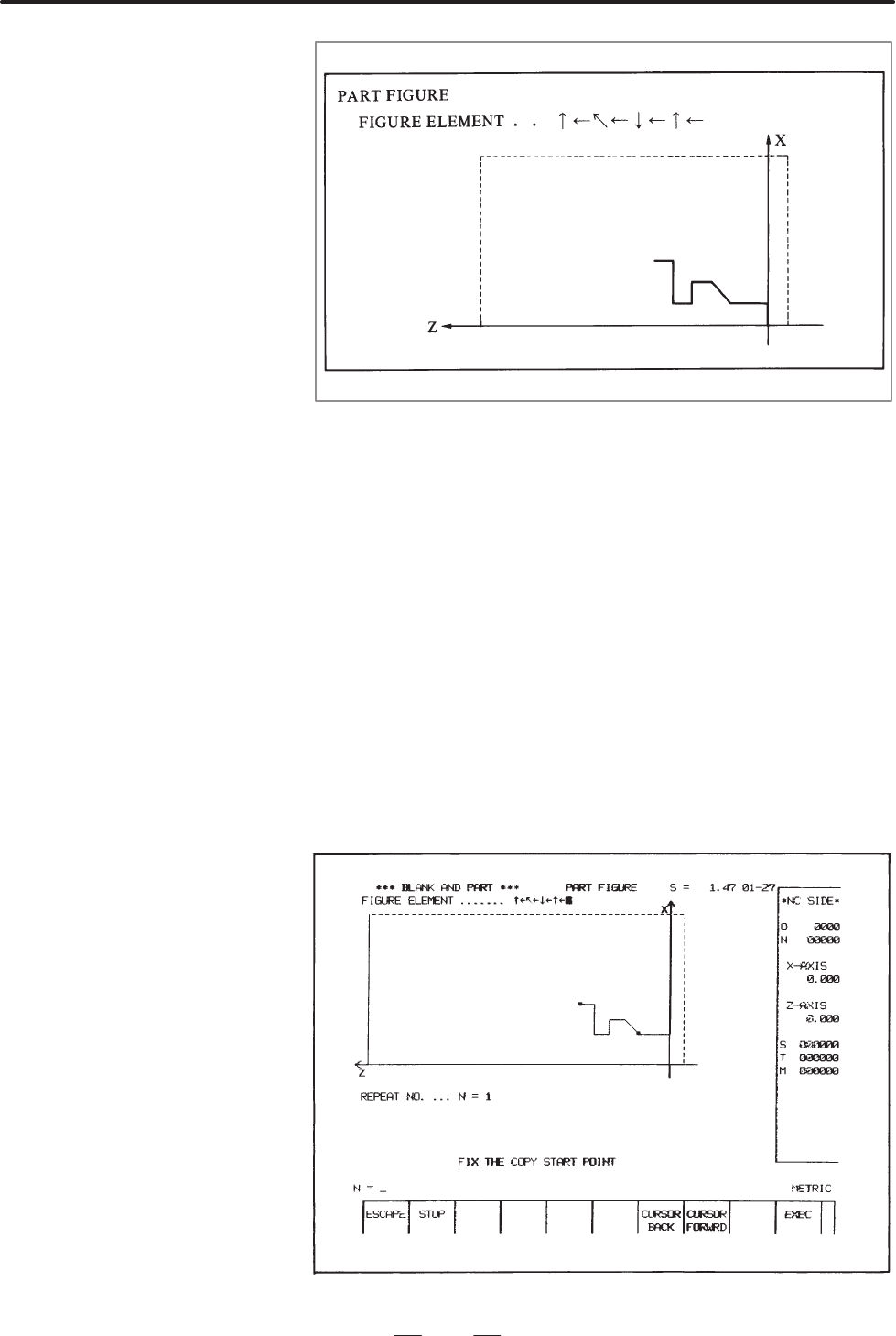

By pressing the soft key “ELEMENT COPY”, the copy area specification

screen will be displayed, set the repeat number to 1 and specify the No.3

element at copy start point and No.8 element at the copy end point.
