Conversional Automatic Programming (CAP) Operators manual Page 178

Operators manual
B–61804E–2/05
3. EXECUTION OF
SYMBOLIC FAPT
PROGRAMMING AND
OPERATION BY SYMBOLIC FAPT
167
[MENU SCREEN] Return to the main menu screen.. . . .
[CHUCK] Screen for setting chuck figure appears.. . . . . . . . . . .
[TAILSTOCK] Screen for setting tailstock figure appears.. . . . . . .
[TOOL HOLDER] Screen for setting tool holder figure. . . .
appears.
[CURSOR ´] [CURSOR ±] Press this to select the question. .
items.
[END] Return to the previous screen (animation. . . . . . . . . . . . . .
drawing screen here).
[CHUCK]
There are two types of chuck figures, namely standard figure and special
figure.
Up to 16 standard figures and up to 5 special figures can be registered.
The numbers 1–16 and 21–25 are assigned to the standard figure and
special figure, respectively.

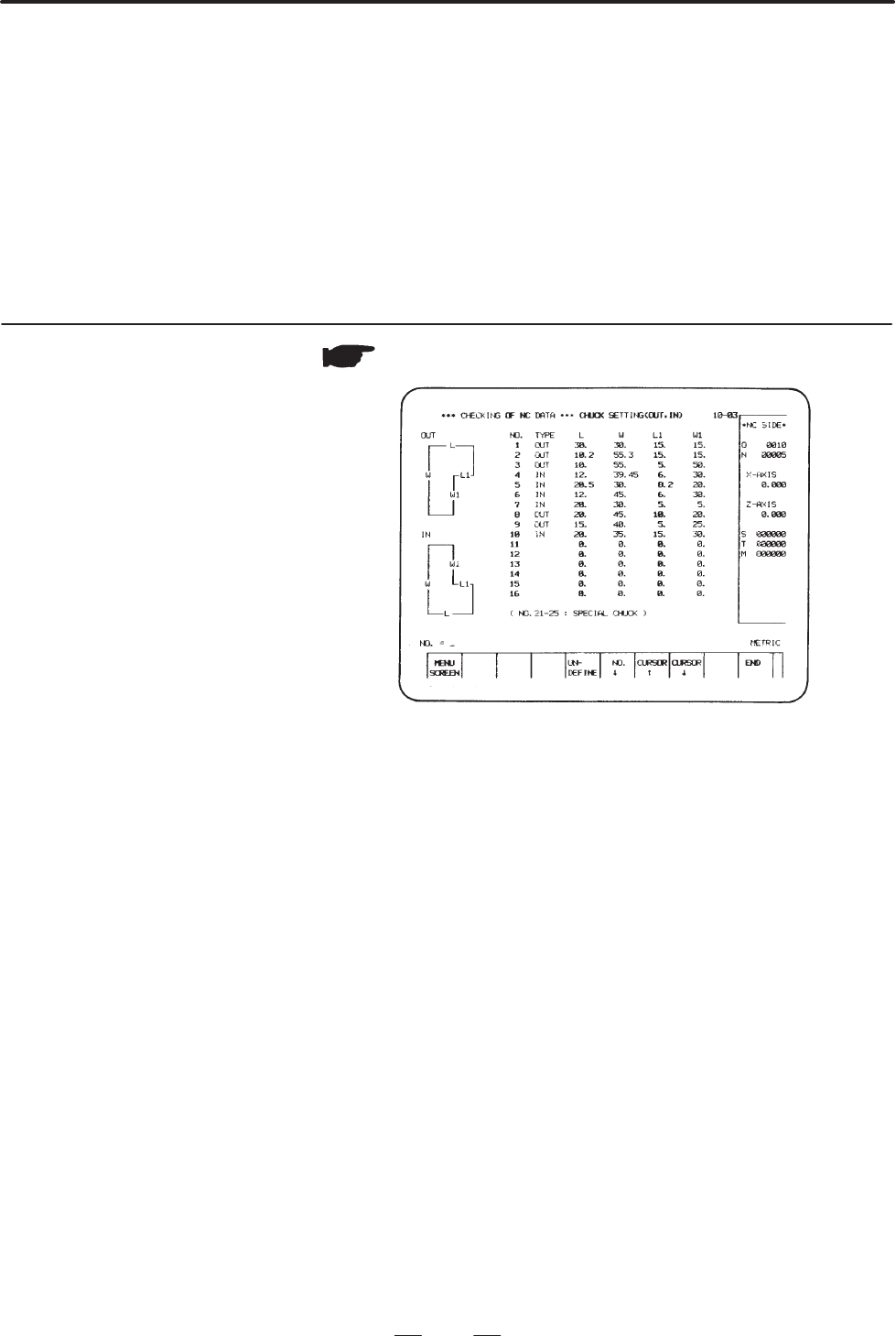

(1)Setting of standard figure
Set the data L, W, L1, and W1 by referring to the illustration diagram
on the screen.
When the cursor is at the “TYPE” position, either “OUT” or “IN” is
displayed.
Press either software key to select type.
[MENU SCREEN] Return to the main menu screen.. . . .
[UNDEFINE] Let the data where a cursor exists to an. . . . . . . .
undefined one.
[NO. ±] The cursor moves to the start of next line.. . . . . . . . . . . . .
3.6.5
Setting of Chuck
Figure
