Conversional Automatic Programming (CAP) Operators manual Page 195

Operators manual
PROGRAMMING AND
OPERATION BY SYMBOLIC FAPT
B–61804E–2/05
4. SUB CYCLE FUNCTION
184
WARNING
After process editing, check the editing results. If edits are
made incorrectly, the tool may collide with the workpiece
and/or machine, or forced machining may occur, possibly
causing damage to the machine and/or tool itself, or injury
to the user.

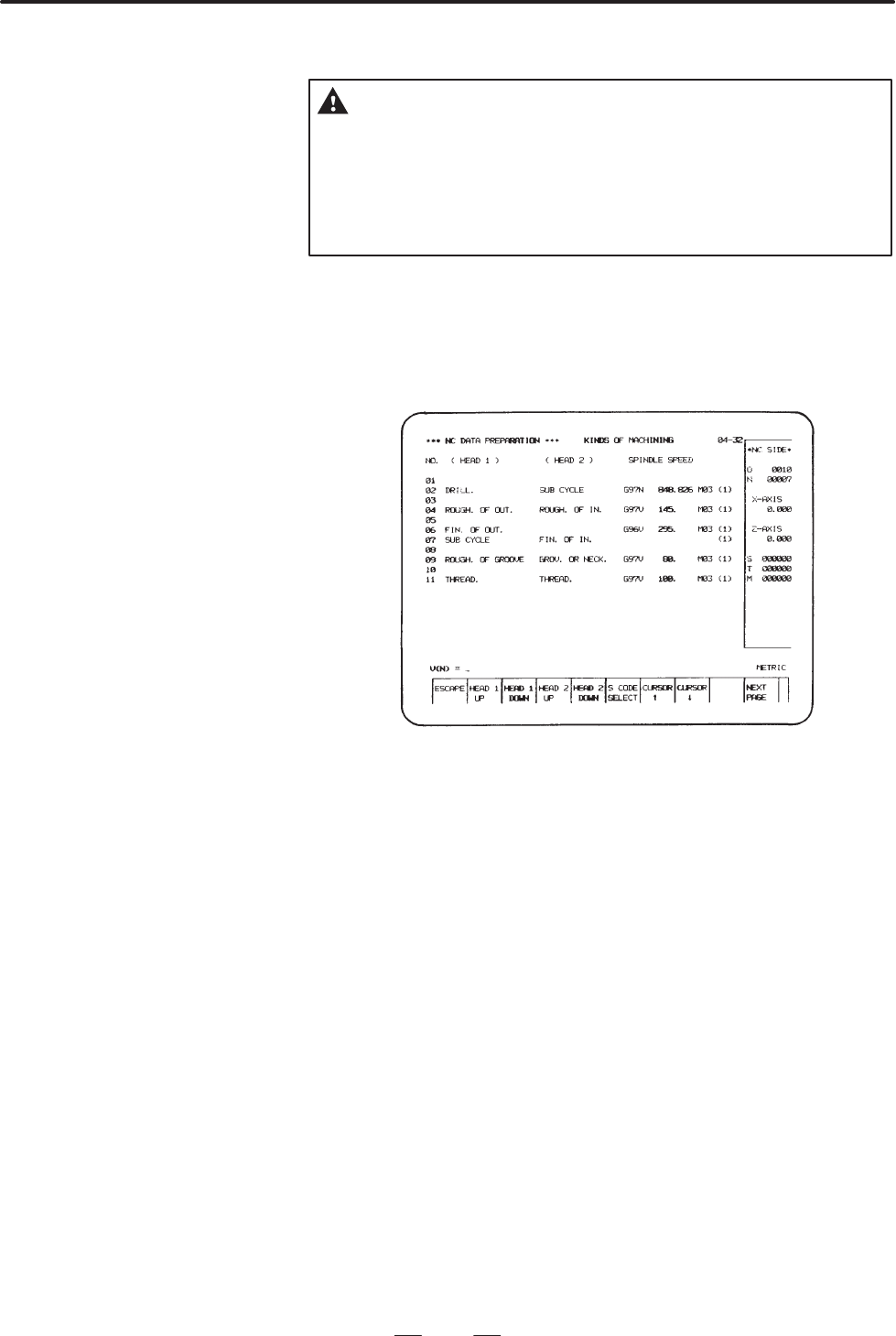

The auxiliary machining process is also edited as well as other machining
process. However, when an auxiliary machining is selected by S CODE
SELECT, no data is displayed under spindle speed column.
Actually control of the S code depends on the auxiliary machining macro
prepared by MTB.
4.4
PROCESS EDITING
OF SUB CYCLE
(2–PATH LATHE)
