Conversional Automatic Programming (CAP) Operators manual Page 642

Operators manual
B–61804E–2/05
4. ANIMATED SIMULATION
SCREENS
ANIMATED SIMULATION FUNCTION II
7

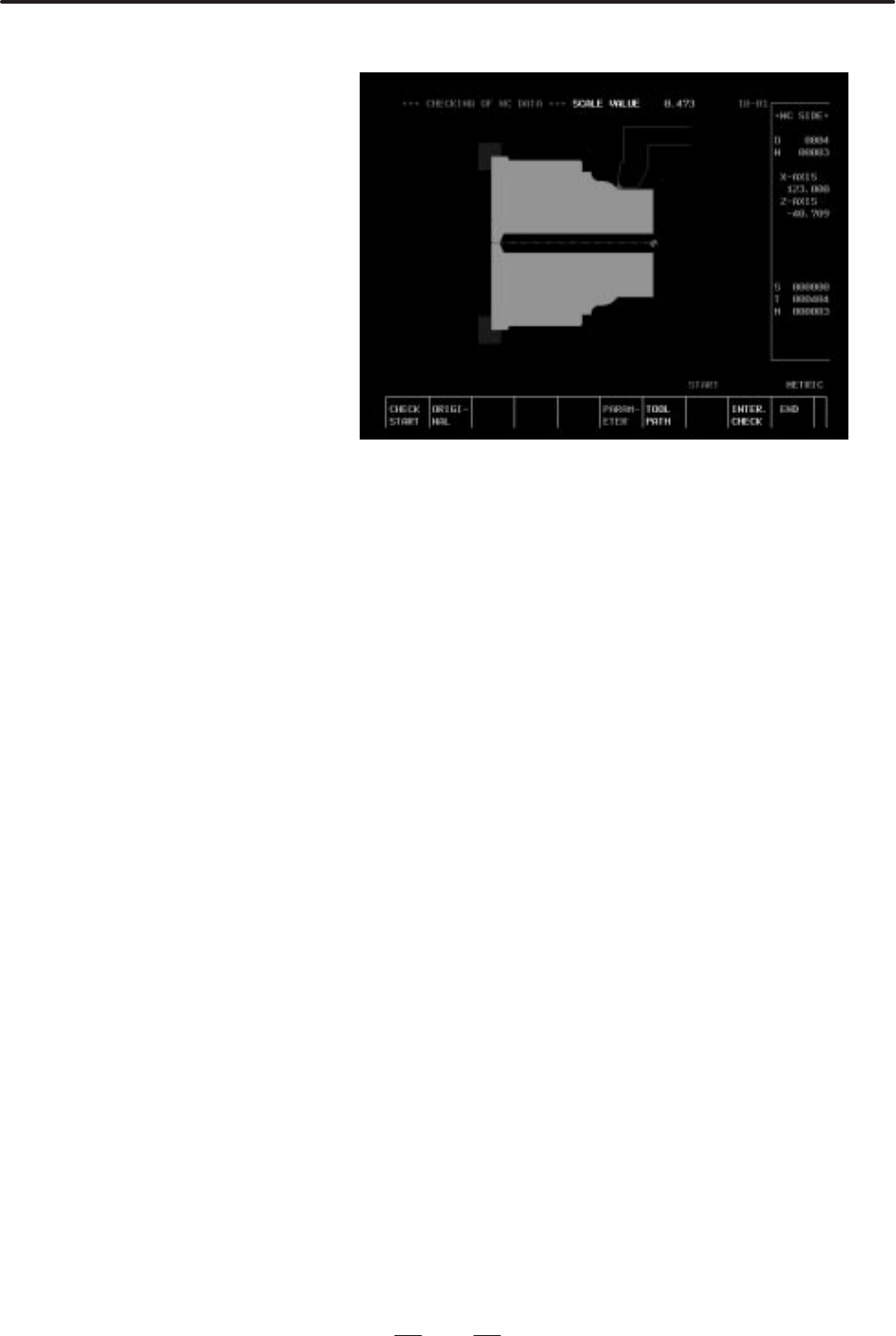

(1)When menu 6 is selected, a blank viewed on the XZ plane is drawn.
Drawing based on the XC plane is not performed.
(2)Either the interference check function or tool path plotting function is
enabled. To use the interference check function, the [INTER CHECK]
soft key must be set to on before executing animated simulation.
(3)This screen is used only for drawing animated simulation of turning.
When C– or Y–axis animated simulation begins, this screen is
switched to another screen.
(4)Up to 160 tools, consisting of 128 turning tools and 32 milling tools,
can be used for the animated simulation of turning.
