Grooving
G
Grooving is designated by
G
, which indicates the capital of groove.
(a) ELEMENT SYMBOL ES =. . . . . .
Input
G
when the system asks you the above question.
(b)SURFACE ROUGHNESS SR =. . .
Input the number of
marks indicating the surface roughness
when the system asks you the above question.
(c) ON WHICH ELEMENT? EE = On which element is . . . .
grooving made?
DIRECTION DN = Grooving direction. . . . . . . . . . . . . .
WIDTH WT = Grooving width. . . . . . . . . . . . . . . . . .
DEPTH DT = Grooving depth. . . . . . . . . . . . . . . . . .
R/C OF CORNER (ALONG ELEMENT)
1’ST KC = CV = . . . . . . . .
2’ND KC = CV = . . . . . . .
3’RD KC = CV = . . . . . . .
4’TH KC = CV =. . . . . . .
The system asks you these questions sequentially, starting with the
top question by displaying them on the CRT screen.
Input a numerical value for each question.
(d)“ON NEXT ELEMENT” or “ON LAST ELEMENT”?
G
is input before and after arrows, in general.
It indicates whether threading is made on a figure element to be
input or on the last figure element already input.
“ON NEXT ELEMENT” Input “1”.. . . . . . .
“ON LAST ELEMENT” Input “0”.. . . . . . .

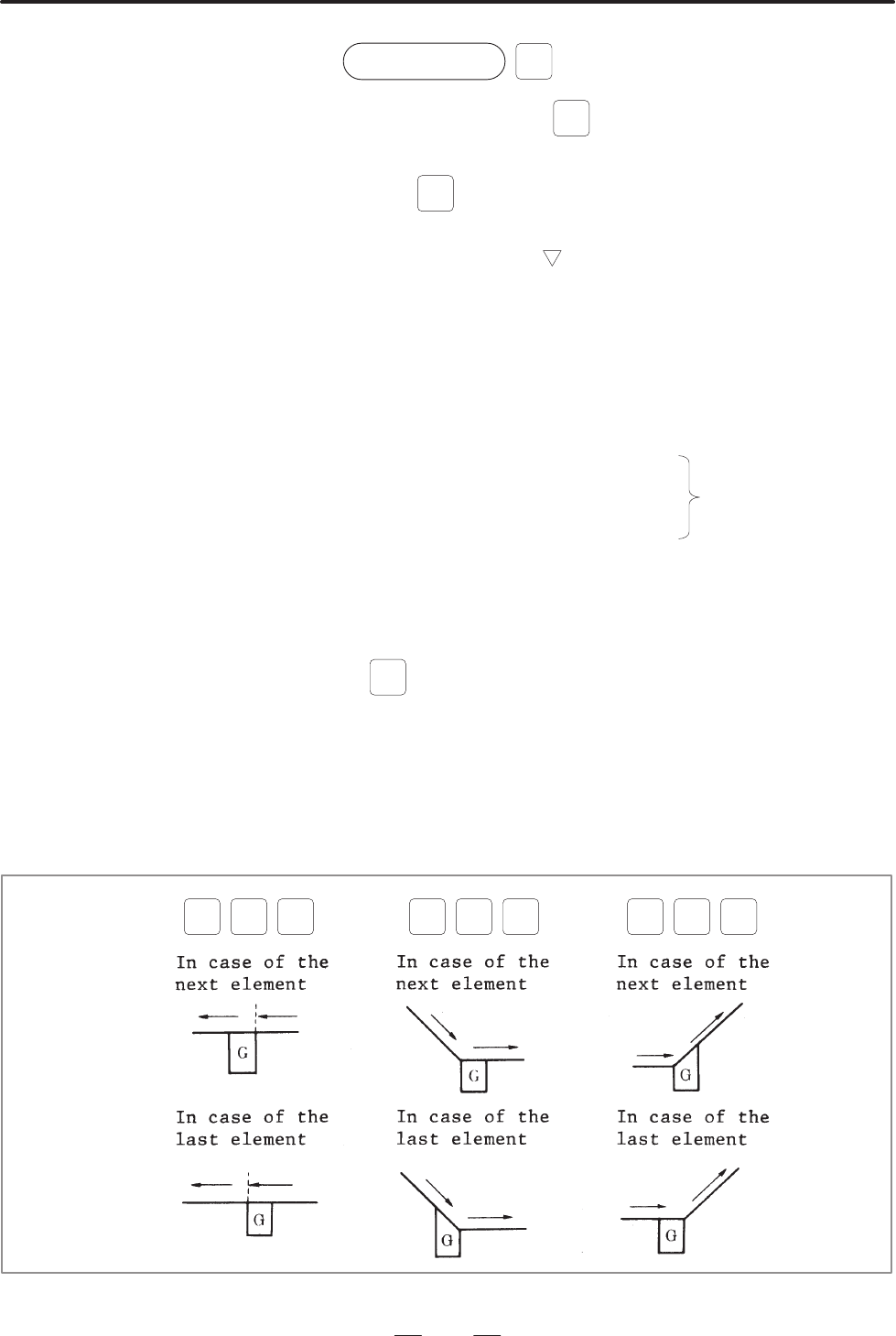

Identify “ON NEXT ELEMENT” and “ON LAST ELEMENT”
from each other in the following illustration.
G
² ²
G
¿ ³
G
³ ½
Designation of groove
shape
