Conversional Automatic Programming (CAP) Operators manual Page 439

Operators manual
B–61804E–2/05
4. MATERIAL AND TOOL DATA
C–AXIS FAPT FUNCTION
173

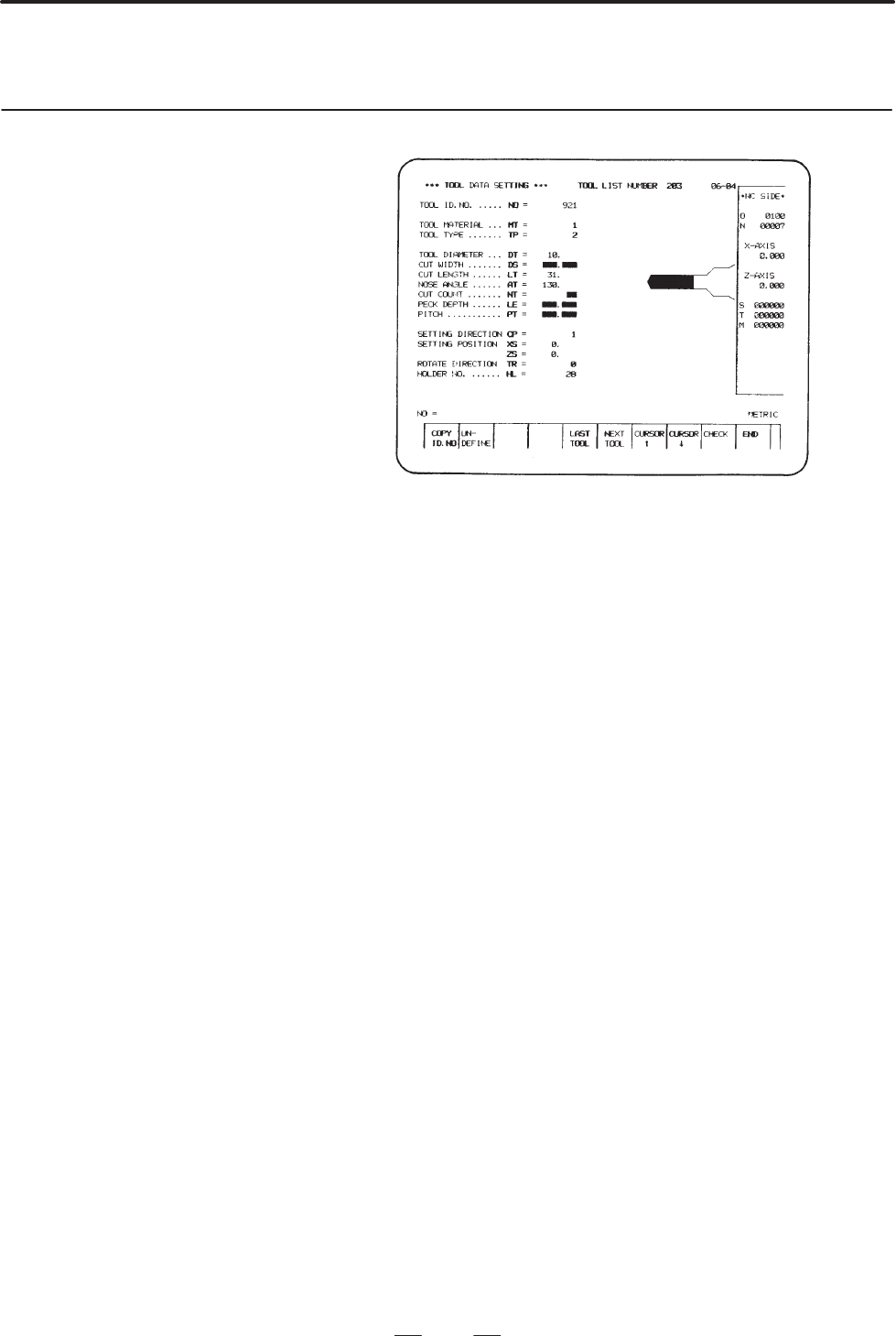

The questions of milling machining tool data are as follows.
TOOL ID. NO. NO =. . . . . . . . .
TOOL MATERIAL MT = 1: HIGH SPEED 2: CARBIDE 3:. . . . .
SPECIAL
TOOL TYPE TP = 1: CENTER DRILL 2: DRILL . . . . . . . . . .
3: TAP 4: END MILL
HEAD NO. HD = (Not used in 16–TA). . . . . . . . . . . .
HOLDER NO. HL = Holder No. for animated. . . . . . . . .
simulation
ROTATE DIRECTION TR = 0: NORMAL 1: REVERSE. .
TOOL DIAMETER DT =. . . . .
CUT WIDTH DS =. . . . . . . . . .
CUT LENGTH LT =. . . . . . . . .
NOSE ANGLE AT =. . . . . . . . .
CUT COUNT NT = No. of blades of end mill tool. . . . . . . . . .
PECK DEPTH LE = Peck depth of tapping tool. . . . . . . . .
PITCH PT = Pitch of tapping tool. . . . . . . . . . . . . . .
SETTING DIRECTION CP = 0: SIDE 1: FACE. .
SETTING POSITION XS =. . .
ZS =
HEAD NO. HD = (15–TTF/16–TTA only). . . . . . . . . . . .
4.2
TOOL DATA
4.2.1
Tool Data
