Conversional Automatic Programming (CAP) Operators manual Page 86

Operators manual
B–61804E–2/05
3. EXECUTION OF
SYMBOLIC FAPT
PROGRAMMING AND
OPERATION BY SYMBOLIC FAPT
75

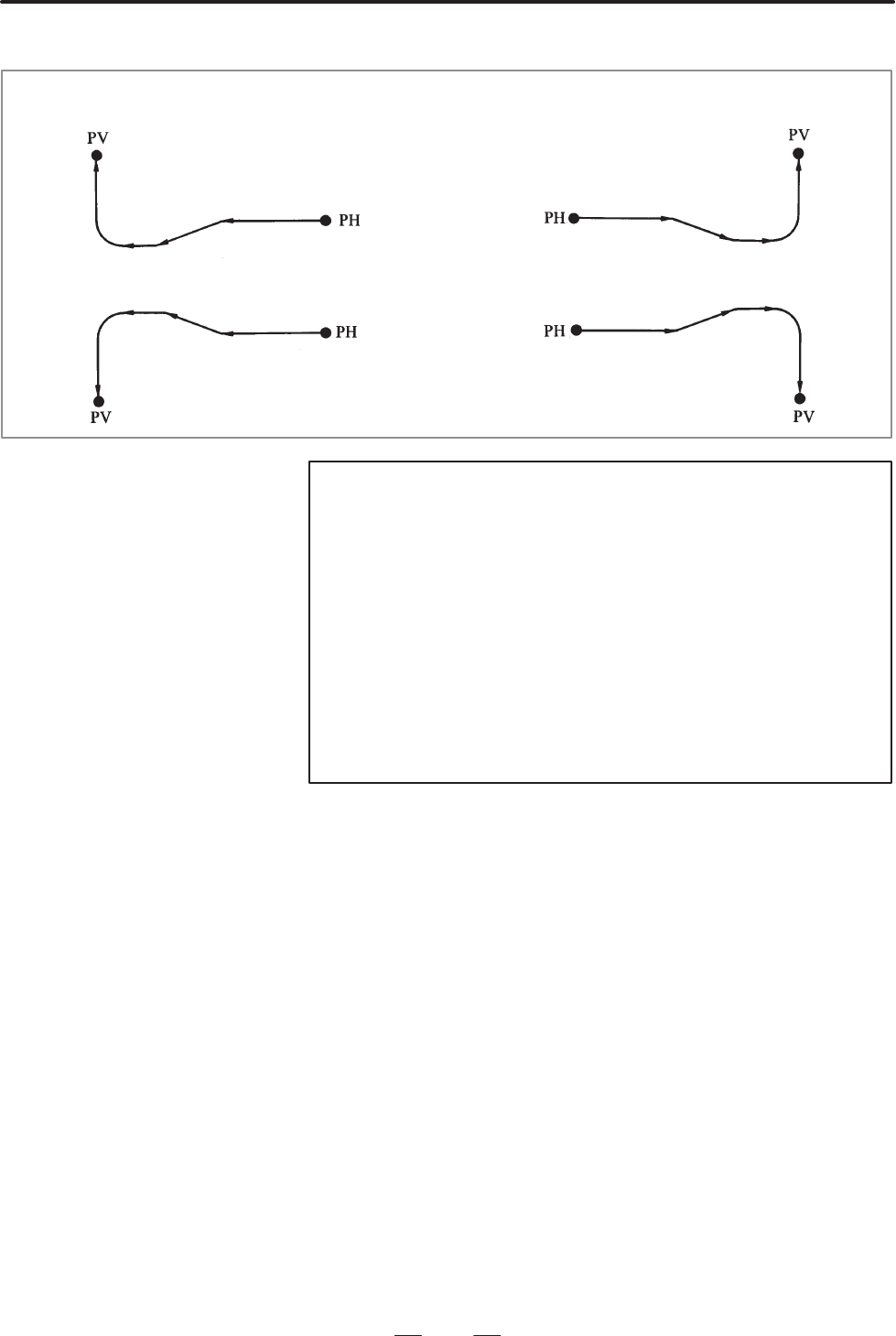

b) When define direction is 1 (PH: horizontal plane PV: vertical plane)
End point PV is upper left with regard to PV End point PV is upper right with regard to PV
End point PV is lower left with regard to PH End point PV is lower right with regard to PH
NOTE
4 As for the end point value, input the absolute values only.
It is not possible to input the incremental value.
5 Input positive neck, depth and side depth values.
6 Input values smaller than the difference between the Z
values of PV point and PH point for neck width. An alarm
(END POINT OR NECK WIDTH IS NOT CORRECT) is
displayed if a bigger value is input.
Note that if a bigger depth or side depth value is input, it is
possible that a figure other than a neck figure will be
created.
