Conversional Automatic Programming (CAP) Operators manual Page 136

Operators manual
B–61804E–2/05
3. EXECUTION OF
SYMBOLIC FAPT
PROGRAMMING AND
OPERATION BY SYMBOLIC FAPT
125

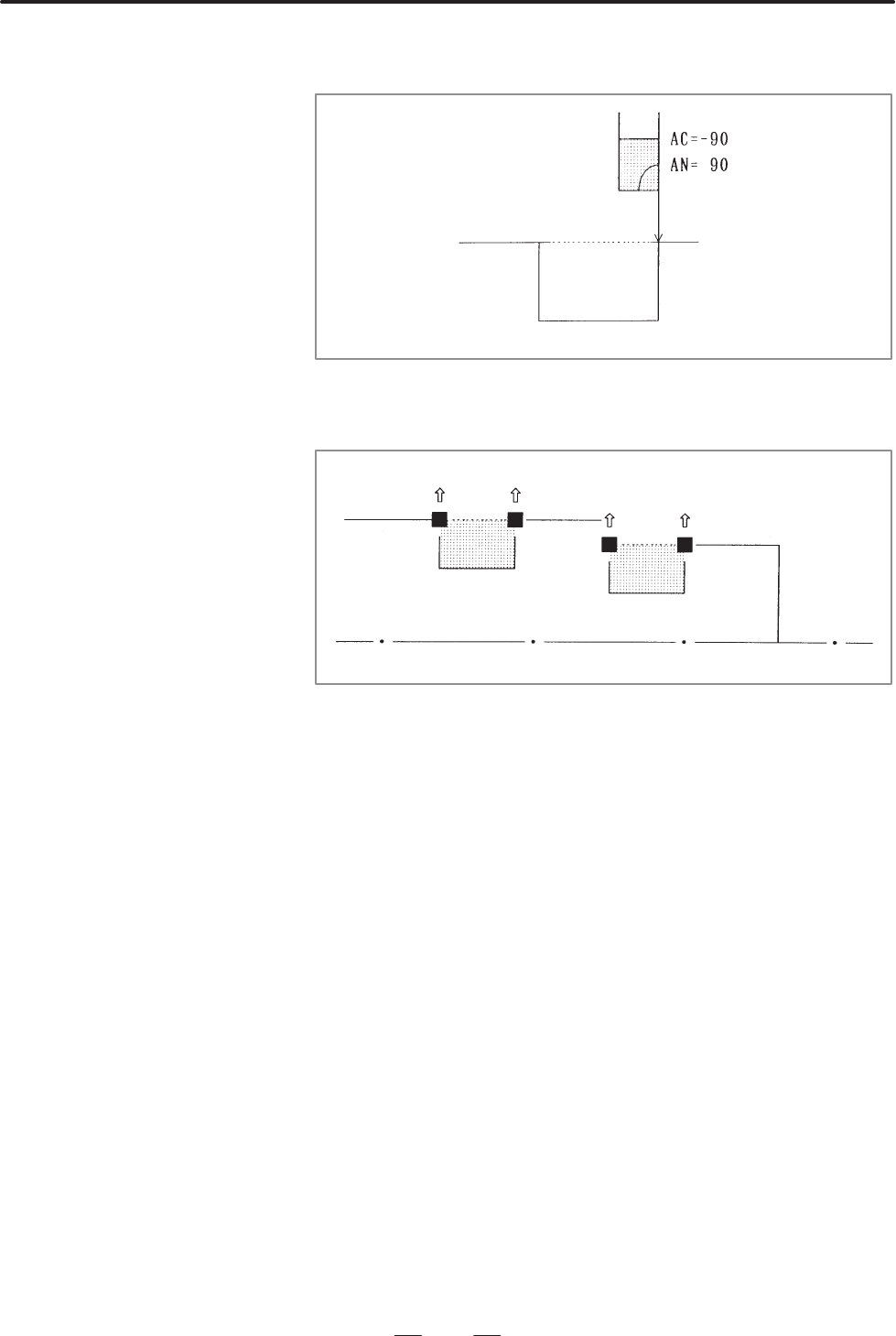

If AC is set to –90 and AN is set to 90, the virtual tool tip is on the right
side of the tool.
A specified cutting area must not contain two or more grooves or cuts.
Divide the cutting area so that a single cutting area contains only one
groove or cut.
(12)Threading
CUTTING METHOD TP = 1 : Single–edge thread cutting with.
constant cutting amount
2 : Both–edge zigzag thread cutting
with constant cutting amount
3 : Single–edge thread cutting with
constant cutting depth
4 : Both–edge zigzag thread cutting
with constant cutting depth
CLEARANCE CT = Clearance quantity (mm or inch). . . . . . .
(Default value is system parameter
No.190)
CS = Clearance quantity (mm or inch)
(Default value is system parameter
No.191)
CE = Clearance quantity (mm or inch)
(Default value is system parameter
No.192)
DEPTH OF CUT D = Depth of cut (mm or inch). . . . .
DL = Final depth of cut (mm or inch)
(Default value is system parameter
No.119)
CUTTING SPEED V = Cutting speed (m/min or feet/min). . . .
