Conversional Automatic Programming (CAP) Operators manual Page 441

Operators manual
B–61804E–2/05
4. MATERIAL AND TOOL DATA
C–AXIS FAPT FUNCTION
175

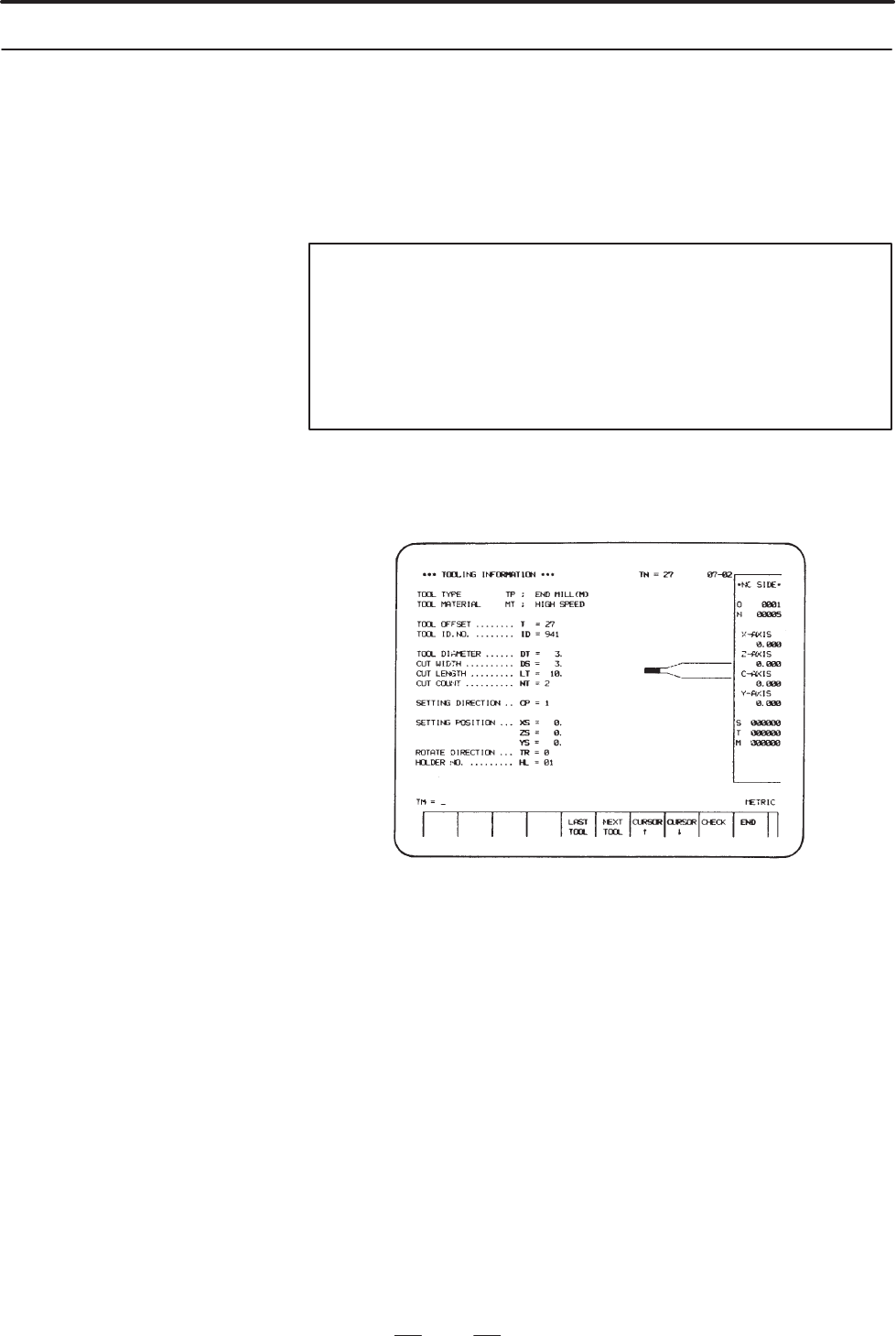

The display method of the tooling information list screens is as usual. The
screen moves to the tooling information setting screen when the soft key
“DATA SETTING” is pushed on this screen. The screens of four kinds
are prepared by the tool type.
TOOL OFFSET NO. TM =. . . . . . .
TOOL ID NO. ID = (Note 1). . . . . . . . . . . .
NOTE
The tool ID number (ID) to be input must have been
registered in tool data. If a number not registered in tool
data is input, a message “This ID is not registered in tool
data.” is displayed. The registered ID is deleted from the
tooling information if keyed in as “DEL” “INPUT”.
When the tool ID number (ID) is input, the tool registered in tool data is
tooled and the data of the tool configuration and that of setting are set.
Display of tool figure data (The tool type (TP) and tool material (MT) are
displayed only; they cannot be changed.)
Note that the messages of the tool type (TP) for 5700 series of 16–T CAP
II are displayed as follows:
(5700 series)
Center drill (M) C–axis center drill
Drill (M) C–axis drill
Tap (M) C–axis tap
End mill (M) C–axis end mill
(Center Drill)
TOOL TYPE TP; Center drill (M)
TOOL MATERIAL MT;
TOOL DIAMETER DT =. . . . . .
CUT WIDTH DS =. . . . . . . . . .
CUT LENGTH LT = . . . . . . . . .
NOSE ANGLE AT =. . . . . . . . .
4.2.3
Displaying and Setting
of Tooling Informations
