Conversional Automatic Programming (CAP) Operators manual Page 761

Operators manual
B–61804E–2/05
B. RESTRICTIONS ON EACH SYSTEM
APPENDIX
111

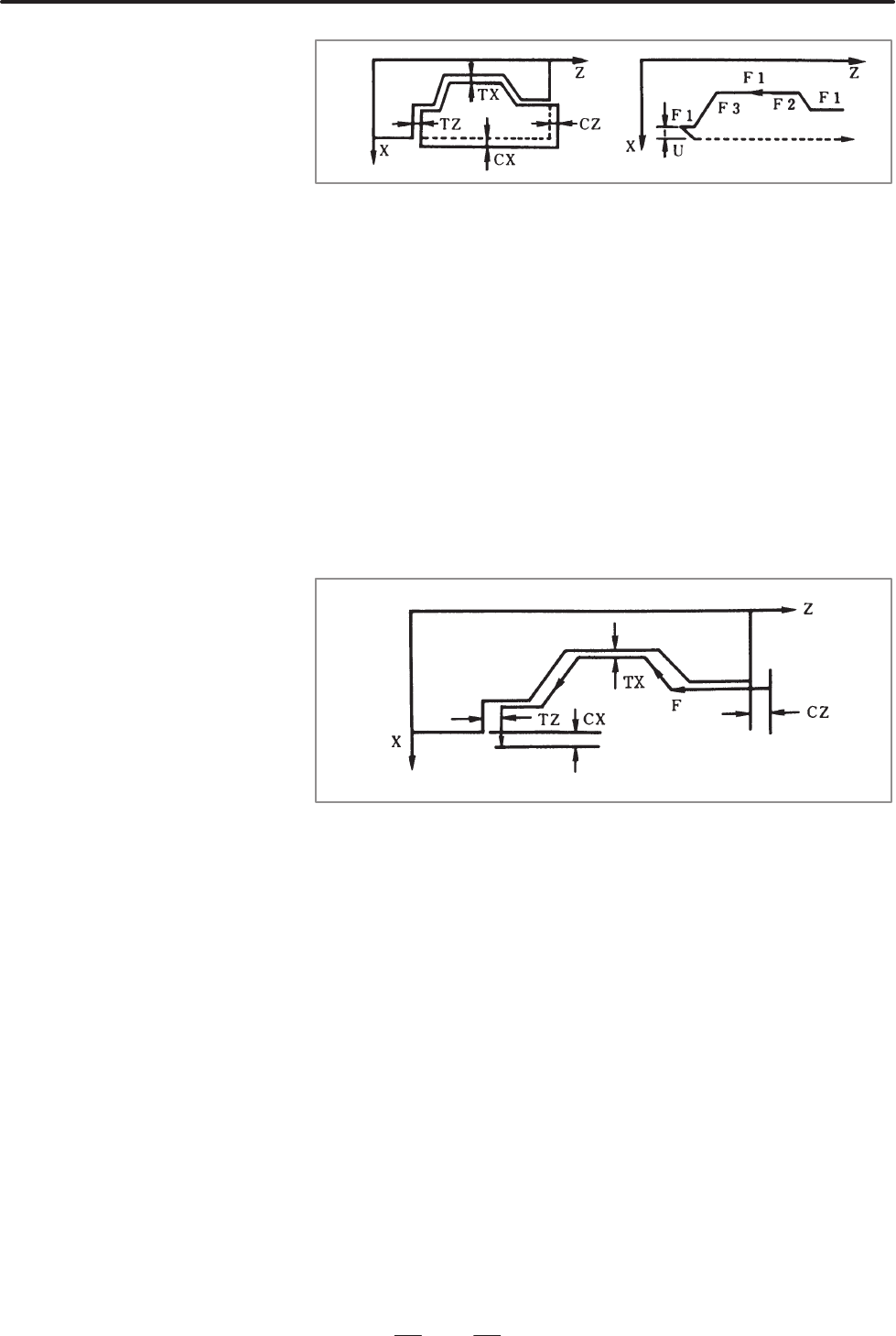

(7)Semi–finishing conditions of outer figure
(8)Semi–finishing conditions of inner figure
CLEARANCE CX = Clearance quantity in X–axis. . . . . . . . .
(mm or inch)
CZ = Clearance quantity in Z–axis
(mm or inch)
FINISH ALLOWANCE TX = Finish allowance in X–axis . .
(mm or inch)
TZ = Finish allowance in Z–axis
(mm or inch)
CUTTING SPEED V = Cutting speed (m/min). . . . . .
FEED RATE F = Feedrate (mm/rev or inch/rev). . . . . . . . . . .
MAXIMUM RPM N = Maximum spindle speed . . . . . .
(CAUTION 2)
(9)Finishing conditions of outer figure
(10)Finishing conditions of inner figure
CLEARANCE CX = Clearance quantity in X–axis. . . . . . . . .
(mm or inch)
CZ = Clearance quantity in Z–axis
(mm or inch)
CUTTING SPEED V = Cutting speed . . . . . .
(m/min or feet/min)
FEED RATE F1 = Feedrate for (mm/rev or inch/rev. . . . . . . . . . .
F2 = Feedrate for (mm/rev or inch/rev)
F3 = Feedrate for (mm/rev or inch/rev)
F4 = Feedrate for (mm/rev or inch/rev)
MAXIMUM RPM N = Maximum spindle speed . . . . . .
(CAUTION 2)
