Conversional Automatic Programming (CAP) Operators manual Page 262

Operators manual
B–61804E–2/05
2. TOOL DATA AND TOOLING
INFORMATION
SETTING AND DISPLAY OF DATA
255

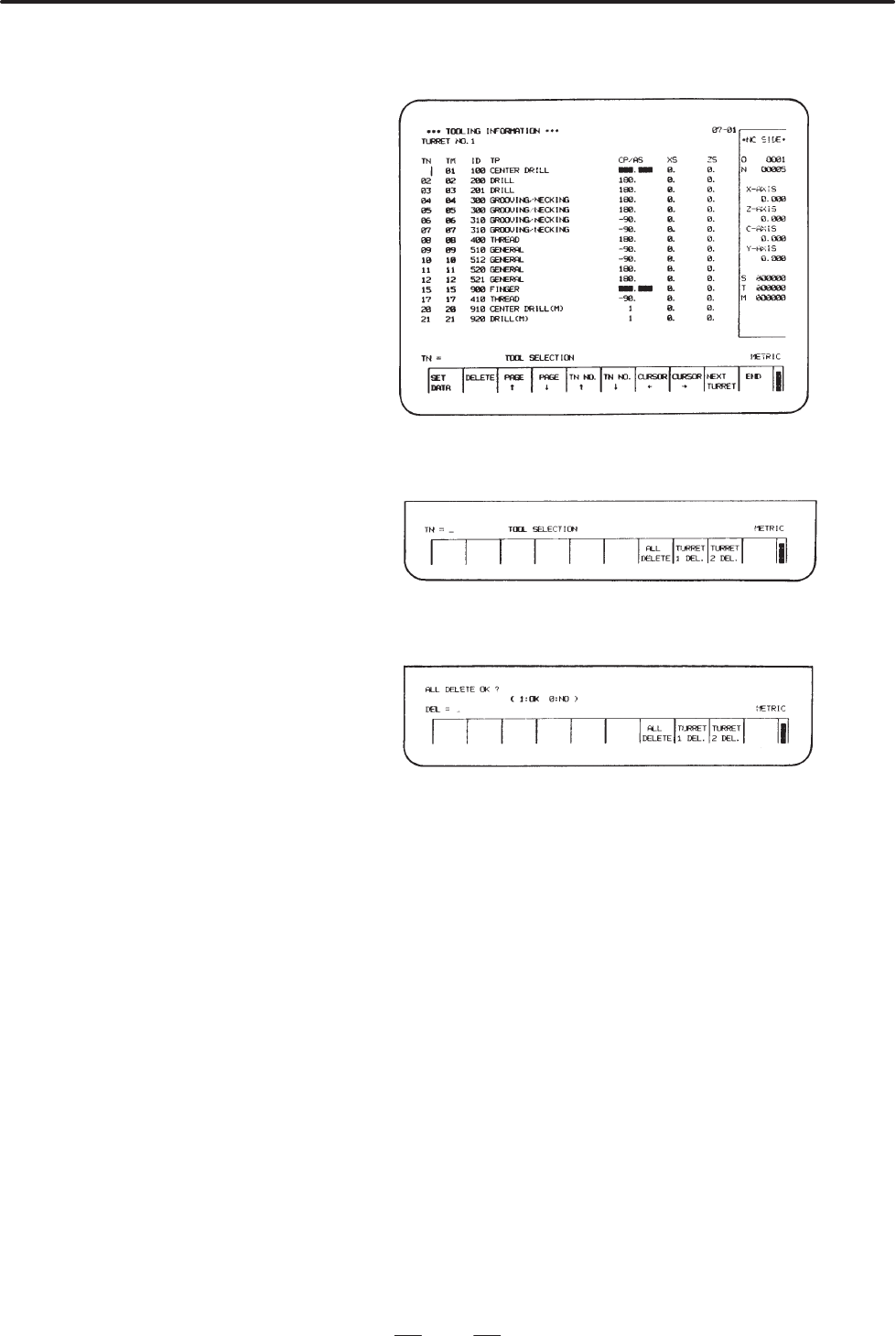

Tooling information can be initialized on the tooling information list
screen.
When the [
] soft key at the right on the tooling information list screen
is pressed, the following soft keys are displayed:
When the “ALL DELETE” soft key is pressed, the system prompts the
user to confirm whether the data is to be deleted.
When 1 is entered, all the tooling information in main memory is deleted.
Meanings of the soft keys
“ALL DELETE” Deletes all the tooling information. . . . . . . .
registered in main memory.
“TURRET 1 DEL.” Deletes all the TL1 tooling information. . . . . .
registered in main memory (only for the TT
specifications).
“TURRET 2 DEL.” Deletes all the TL2 tooling information. . . . . .
registered in main memory (only for the TT
specifications).
“” The displayed soft key menu changes. . . . . . . . . . . . . . . . . .
cyclically.
2.5
INITIALIZATION OF
TOOLING
INFORMATION
