Conversional Automatic Programming (CAP) Operators manual Page 579

Operators manual
AUTOMATIC PROCESS
DETERMINATION FUNCTION
B–61804E–2/05
2. EXECUTING AUTOMATIC
PROCESS DETERMINATION
318

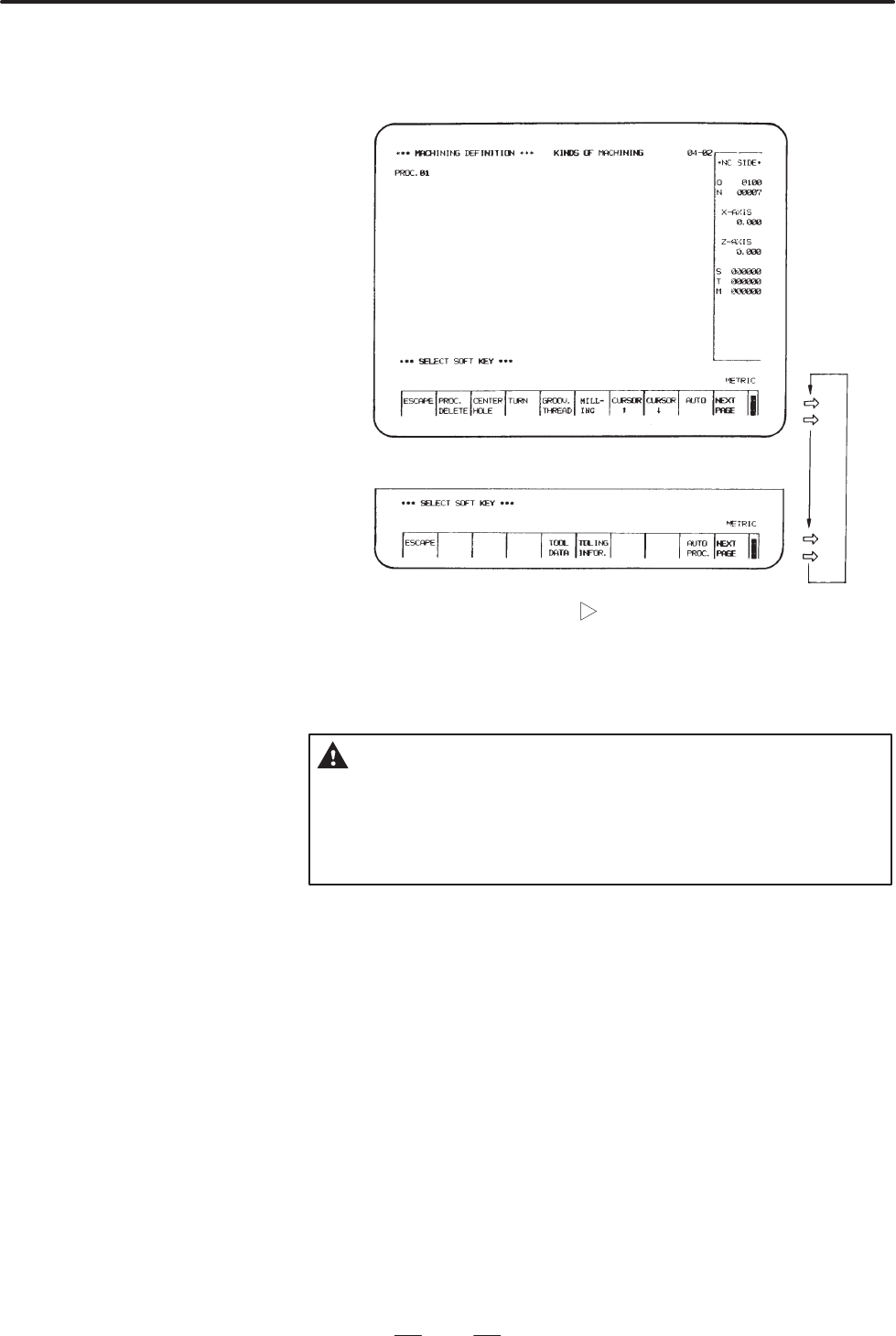

If the soft key for defining machining (menu item 4) is pressed when no
process is defined yet, the “KINDS OF MACHINING” screen appears.
On this screen the automatic process determination function is enabled.
Pressing the right–most soft Key changes the soft key menu. Pressing
the AUTO soft key starts (executes) the automatic process determination
function. Pressing the AUTO PROC. soft key displays the PROCESS
SETTING screen (see Chapter 3, “Setting the Machining Procedure” for
setting machining procedure data).
CAUTION
Pressing the AUTO soft key starts the automatic process
determination immediately without displaying the
PROCESS SETTING screen. Set machining procedure
data beforehand.
2.1
DEFINING A NEW
PROCESS
