Conversional Automatic Programming (CAP) Operators manual Page 773

Operators manual
B–61804E–2/05
B. RESTRICTIONS ON EACH SYSTEM
APPENDIX
123
Fig. B.1.2.2 (b)

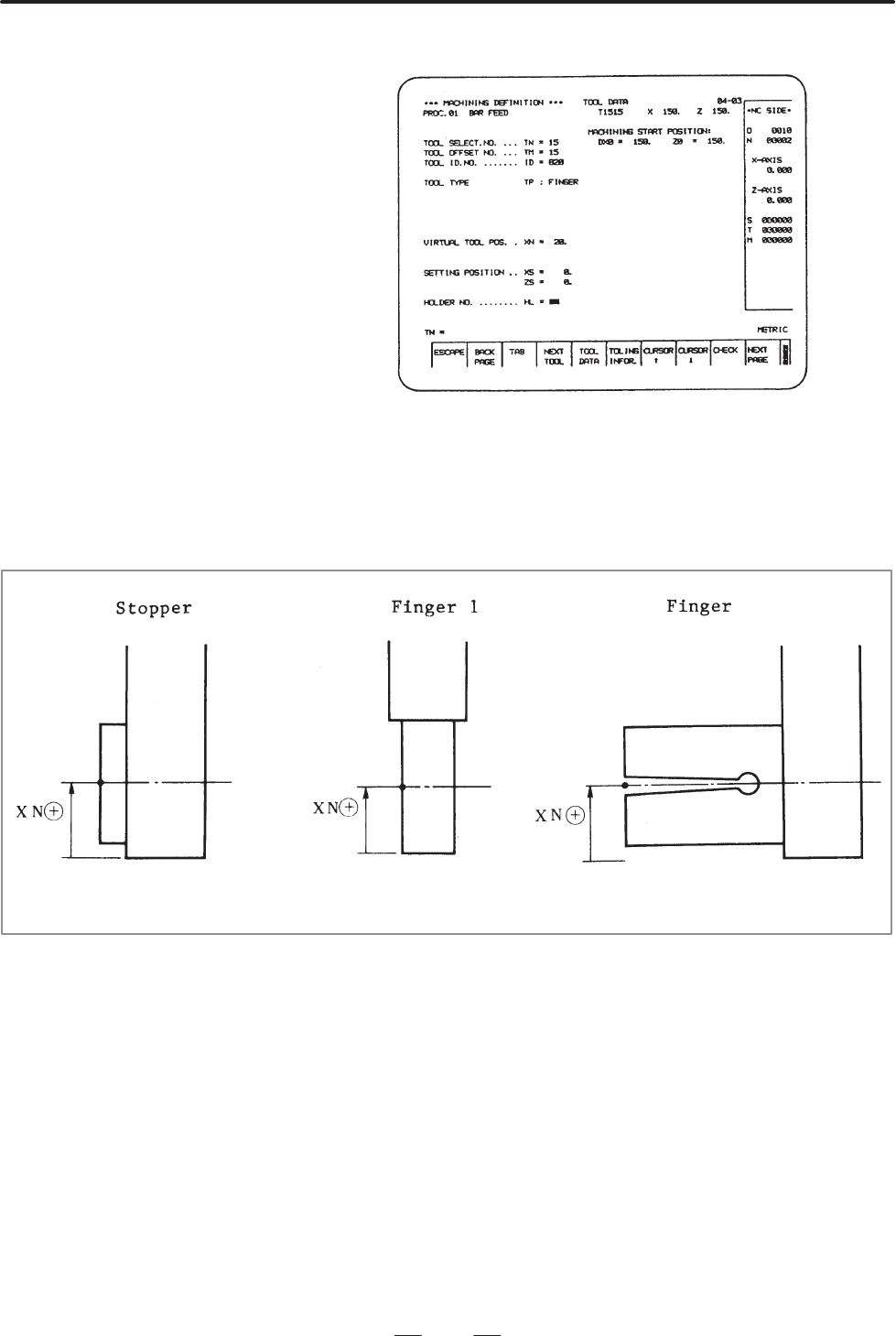

VIRTUAL TOOL POS: XN =. . . . . . . . . .
SETTING POSITION: XS =. . . . . . . . . . .
ZS =
Input the virtual tool position and the setting position. For the virtual tool
position setting, refer to the following figures.
Fig. B.1.2.2 (c) Fig. B.1.2.2 (d) Fig. B.1.2.2 (e)
The cutting condition screen initially asks you to input the type of
machining.
Type BT = . . . . . . . .
Type 1: Pull–out method 1
Type 2: Pull–out method 2
Type 3: Slide–stop method 1
Type 4: Slide–stop method 2
Changing the type value alters the contents of the prompt accordingly.
Tool data setting
Setting of cutting
conditions
Previous page
Next page
