Conversional Automatic Programming (CAP) Operators manual Page 400

Operators manual

Page of 799

/ 799

C–AXIS FAPT FUNCTION

B–61804E–2/05

1. PART FIGURE DEFINITION

(MENU 2)

134

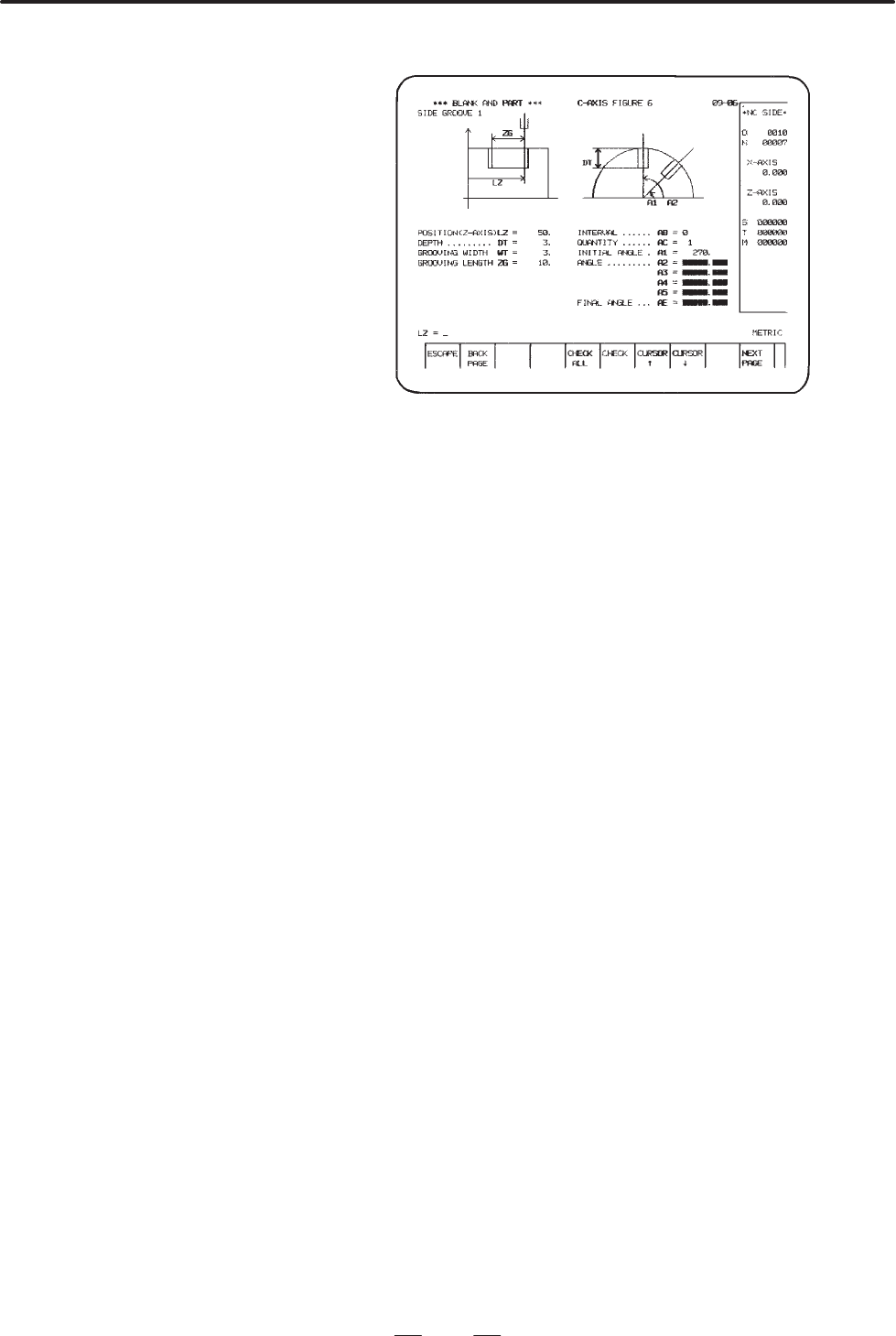

(5)Insert screen for the side face grooving

POSITION (Z–AXIS) LZ = Position of groove (Z coordinate. . .

value)

DEPTH DT = Depth of a groove. . . . . . . . . . . . . . .

GROOVING WIDTH WT = Diameter of a groove. . .

GROOVING LENGTH ZG = Length of a groove. .

INTERVAL AB = When plural grooves are drilled,. . . . . . . . . . . .

set interval of grooves to be fixed

or variable.

(0: FIXED 1: VARIABLE)

QUANTITY AC = Number of grooves . . . . . . . . . . .

(in case of fixed interval, up to

100 holes can be specified.)

For 5700 series of 16–T CAP II,

up to 16 holes can be specified

along fixed interval.

INITIAL ANGLE A1 = Position of groove (Angle. Angle. . . . . . .

of the first groove in case of plural

grooves)

ANGLE A2 = Angle of the 2nd groove . . . . . . . . . . . . . .

(in case of variable interval)

A3 = Angle of the 3rd groove

(in case of variable interval)

A4 = Angle of the 4th groove

(in case of variable interval)

A5 = Angle of the 5th groove

(in case of variable interval)

FINAL ANGLE AE = Angle of the last groove when. . . . . . . .

plural grooves are drilled.
