Conversional Automatic Programming (CAP) Operators manual Page 79

Operators manual
PROGRAMMING AND
OPERATION BY SYMBOLIC FAPT
B–61804E–2/05
3. EXECUTION OF
SYMBOLIC FAPT
68
Press “EXEC”

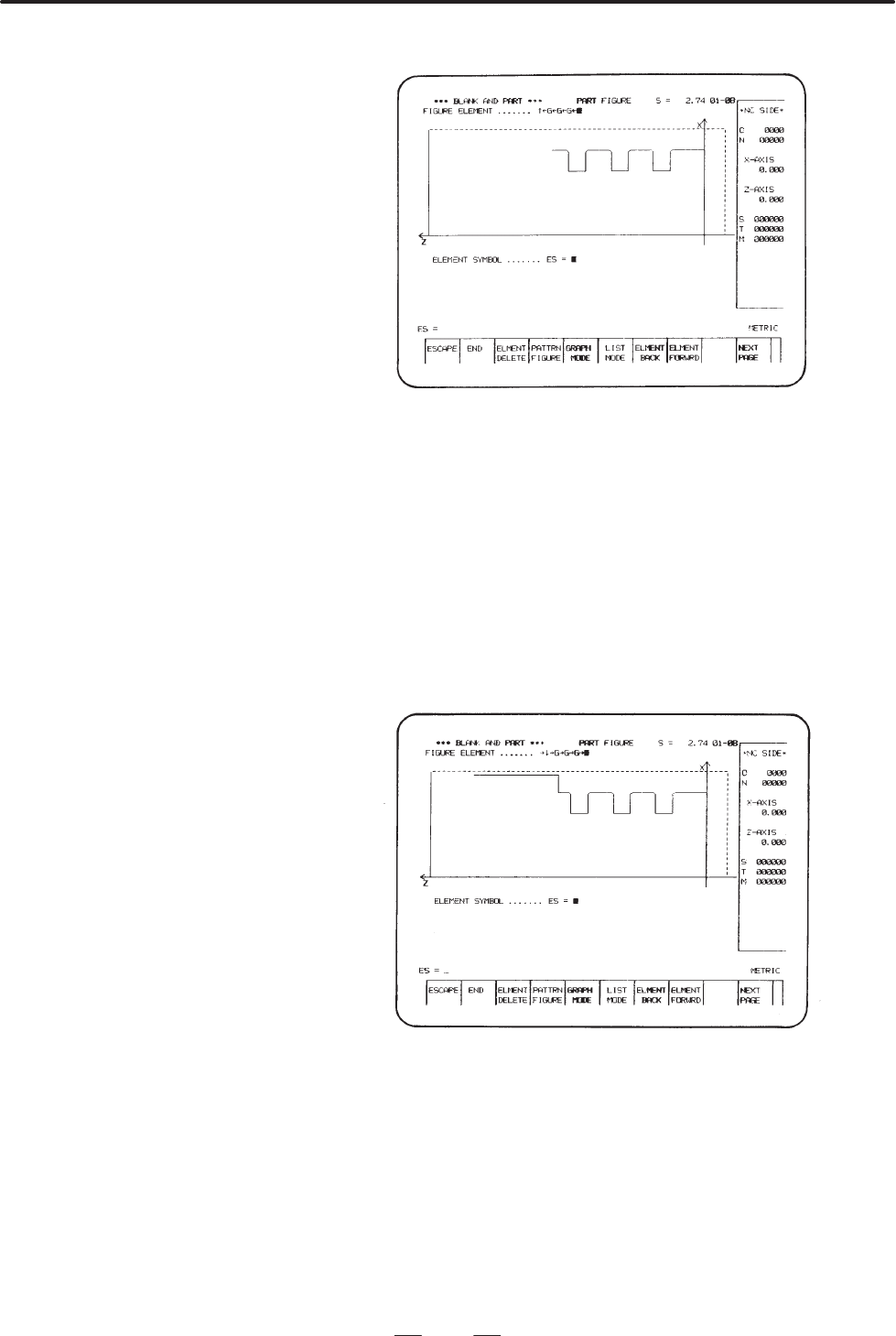

Thus, based on the preset data, a figure is defined and drawn.
The setting of 2) above is as follows.
End point value of previous element DX = 40, Z = 32
END POINT EDX =. . . . . .
EZ = 0.0
QUANTITY N = 3. . . . . . .
PITCH PT = 10.0. . . . . . . . . . .
DIRECTION DN = . . . . . .
WIDTH WT = 4.0. . . . . . . . . .
DEPTH DT = 5.0. . . . . . . . . . .
R/C OF CORNER
K1 = C V1 = 0.5
K2 = V2 =
K3 = V3 =
K4 = C V4 = 0.5
Press “EXEC”
Thus, based on the preset data, a figure is defined and drawn.
