4.FUNCTIONS TO SIMPLIFY PROGRAMMING PROGRAMMING B-63944EN-1/02

- 96 -

- Drilling cycle (G83 or G87)

If depth of cut (Q) is not specified for each drilling, the normal drilling

cycle is used. The tool is then retracted from the bottom of the hole

in rapid traverse.

Format

G83 X(U)_ C(H)_ Z(W)_ R_ P_ F_ K_ M_ ;

G87 Z(W)_ C(H)_ X(U)_ R_ P_ F_ K_ M_ ;

X_ C_ or Z_ C_ : Hole position data

Z_ or X_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time at the bottom of a hole

F_ : Cutting feedrate

K_ : Number of repeats (When it is needed.)

M_ : M code for C-axis clamp (When it is needed.)

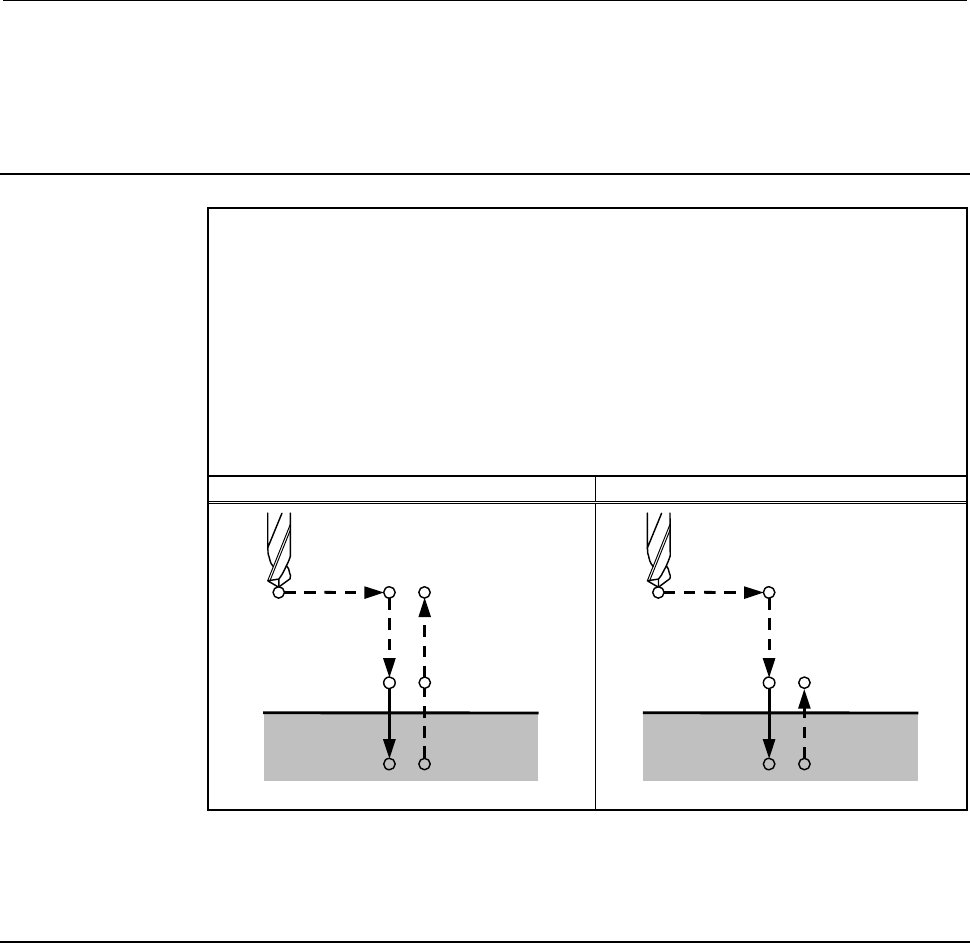

G83 or G87 (G98 mode) G83 or G87 (G99 mode)

Initial level

Point R

Point Z

Point R level

M (

+ 1), P2

Point R level

Point R

Point Z

M (

+ 1), P2

Mα : M code for C-axis clamp

M (α + 1) : M code for C-axis unclamp

P1 : Dwell specified in the program

P2 : Dwell specified in parameter No. 5111

Example

M51 ; Setting C-axis index mode ON

M3 S2000 ; Rotating the drill

G00 X50.0 C0.0 ; Positioning the drill along the X- and

C-axes

G83 Z-40.0 R-5.0 P500 F5.0 M31 ; Drilling hole 1

C90.0 M31 ; Drilling hole 2

C180.0 M31 ; Drilling hole 3

C270.0 M31 ; Drilling hole 4

G80 M05 ; Canceling the drilling cycle and

stopping drill rotation

M50 ; Setting C-axis index mode off
