B-63944EN-1/02 PROGRAMMING 4.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 61 -

(5) After all rough cutting terminates along the first axis on the plane

(Z-axis for the ZX plane), the tool temporarily returns to the

cycle start point. At this time, when there is a position whose

height equals to that at the start point, the tool passes through the

point in the position obtained by adding depth of cut ∆d to the

position of the figure and returns to the start point.

Then, rough cutting is performed as finishing along the target

figure. At this time, the tool passes through the point in the

obtained position (to which depth of cut ∆d is added) when

returning to the start point.

Bit 2 (RF2) of parameter No. 5105 can be set to 1 so that rough

cutting as finishing is not performed.

Depth of cut

∆

{

Start point

{

Escaping operation after

rough cutting

Escaping operation after rough cutting

as finishing

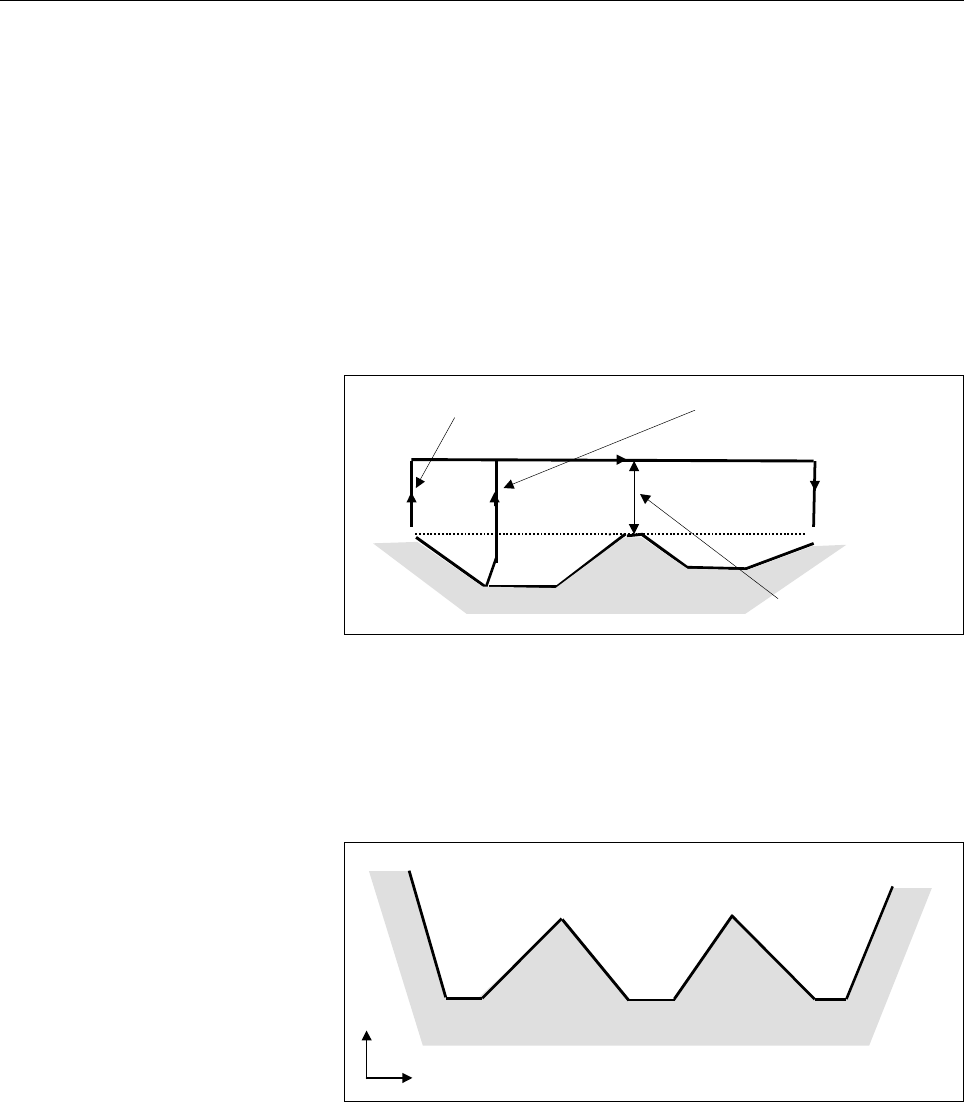

Fig. 4.2.1 (k) Escaping operation when the tool returns to the start point

(type II)

(6) Order and path for rough cutting of pockets

Rough cutting is performed in the following order.

(a) When the figure shows monotone decrease along the first

axis on the plane (Z-axis for the ZX plane)

<1>

<2>

<3>

Rough cutting is performed in the order <1>, <2>, and <3>

from the rightmost pocket.

Fig. 4.2.1 (l) Rough cutting order in the case of monotone decrease

(type II)
