B-63944EN-1/02 PROGRAMMING 4.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 59 -

(2) The figure need not show monotone increase or decrease in the

direction of the second axis on the plane (X-axis for the ZX

plane) and it may have concaves (pockets).

. . .

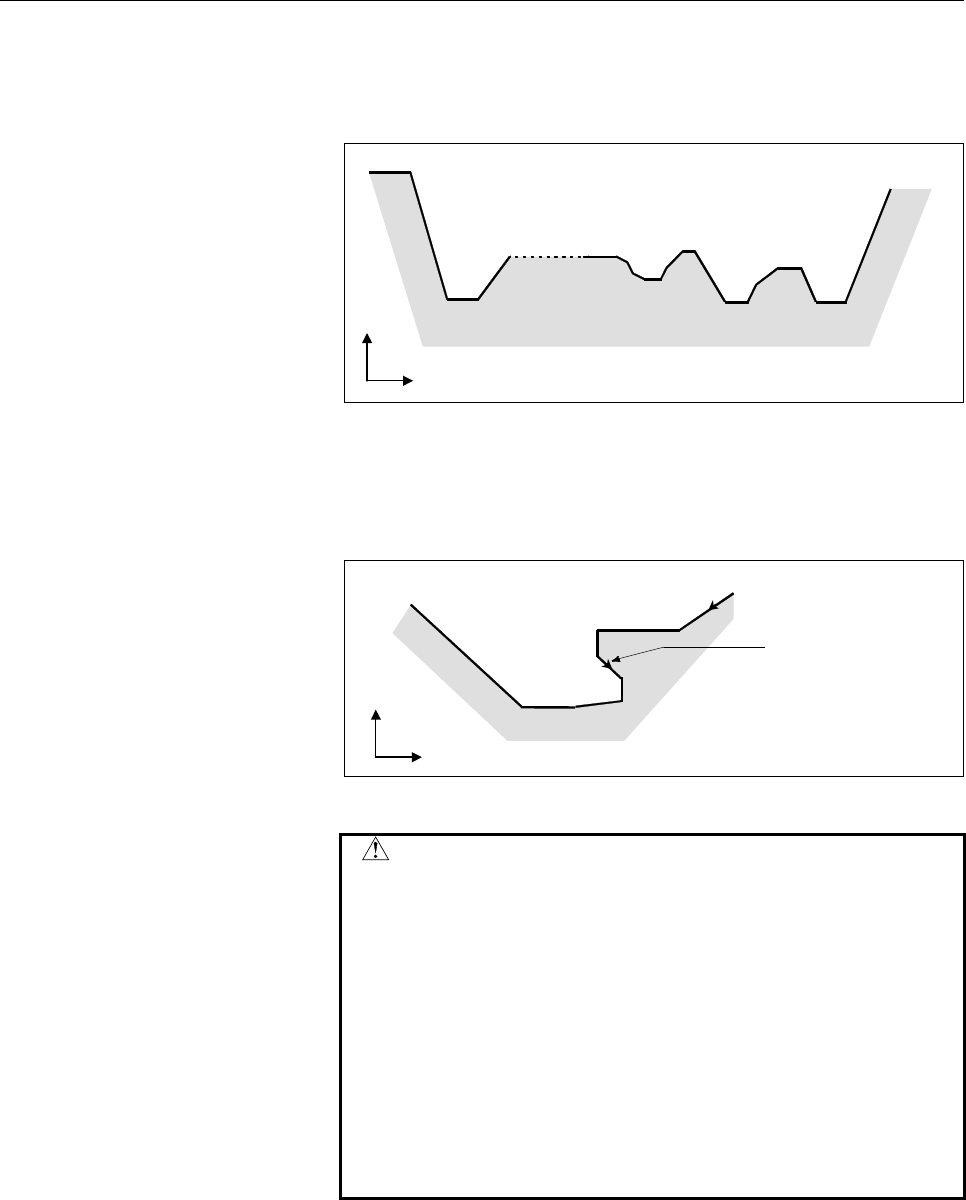

Fig. 4.2.1 (f) Figure having pockets (type II)

The figure must show monotone change in the direction of the

first axis on the plane (Z-axis for the ZX plane), however. The

following figure cannot be machined.

Monotone change is not

observed along the Z-

axis.

Fig. 4.2.1 (g) Figure which cannot be machined (type II)

CAUTION

For a figure along which the tool moves backward

along the first axis on the plane during cutting

operation (including a vertex in an arc command),

the cutting tool may contact the workpiece. For this

reason, for a figure which does not show monotone

change, alarm PS0064 or PS0329 is issued. If the

movement does not show monotone change, but is

very small, and it can be determined that the

movement is not dangerous, however, the

permissible amount can be specified in parameter

No. 5145 to specify that the alarm is not issued in

this case.

The first cut portion need not be vertical. Any figure is

permitted if monotone change is shown in the direction of the

first axis on the plane (Z-axis for the ZX plane).
