5.COMPENSATION FUNCTION PROGRAMMING B-63944EN-1/02

- 164 -

5.3 OVERVIEW OF CUTTER COMPENSATION (G40-G42)

When the tool is moved, the tool path can be shifted by the radius of

the tool (Fig. 5.3 (a)).

To make an offset as large as the radius of the tool, CNC first creates

an offset vector with a length equal to the radius of the tool (start-up).

The offset vector is perpendicular to the tool path. The tail of the

vector is on the workpiece side and the head positions to the center of

the tool.

If a linear interpolation or circular interpolation command is specified

after start-up, the tool path can be shifted by the length of the offset

vector during machining.

To return the tool to the start point at the end of machining, cancel the

cutter compensation mode.

Start-up

Cutter

compensation

cancel

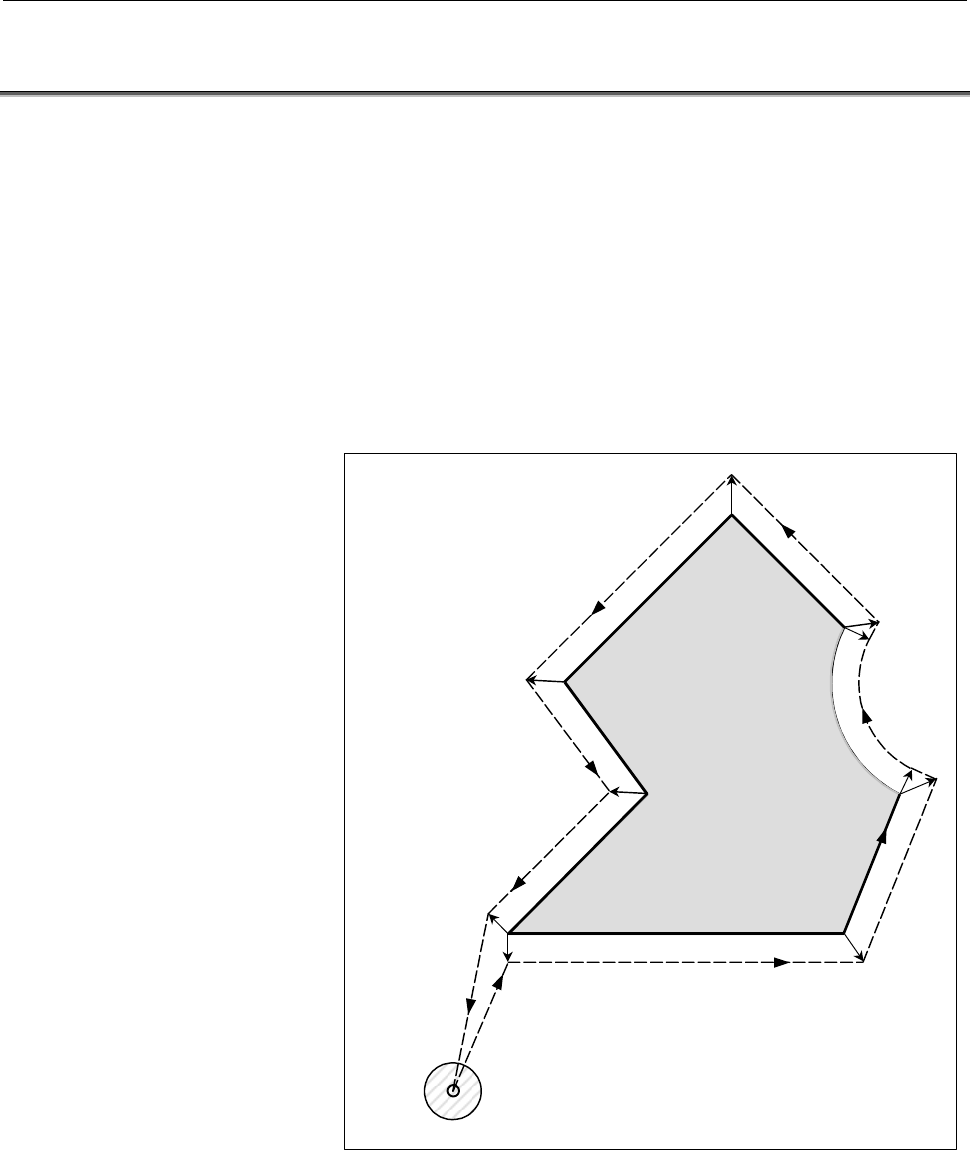

Fig. 5.3 (a) Outline of cutter compensation
