6.5.5 Tapping Cycle (G84)

This cycle performs tapping.

In this tapping cycle, when the bottom of the hole has been reached,

the spindle is rotated in the reverse direction.

Format

G84 X_ Y_ Z_ R_ P_ F_ L_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time

F_ : Cutting feedrate

L_ : Number of repeats (When it is needed.)

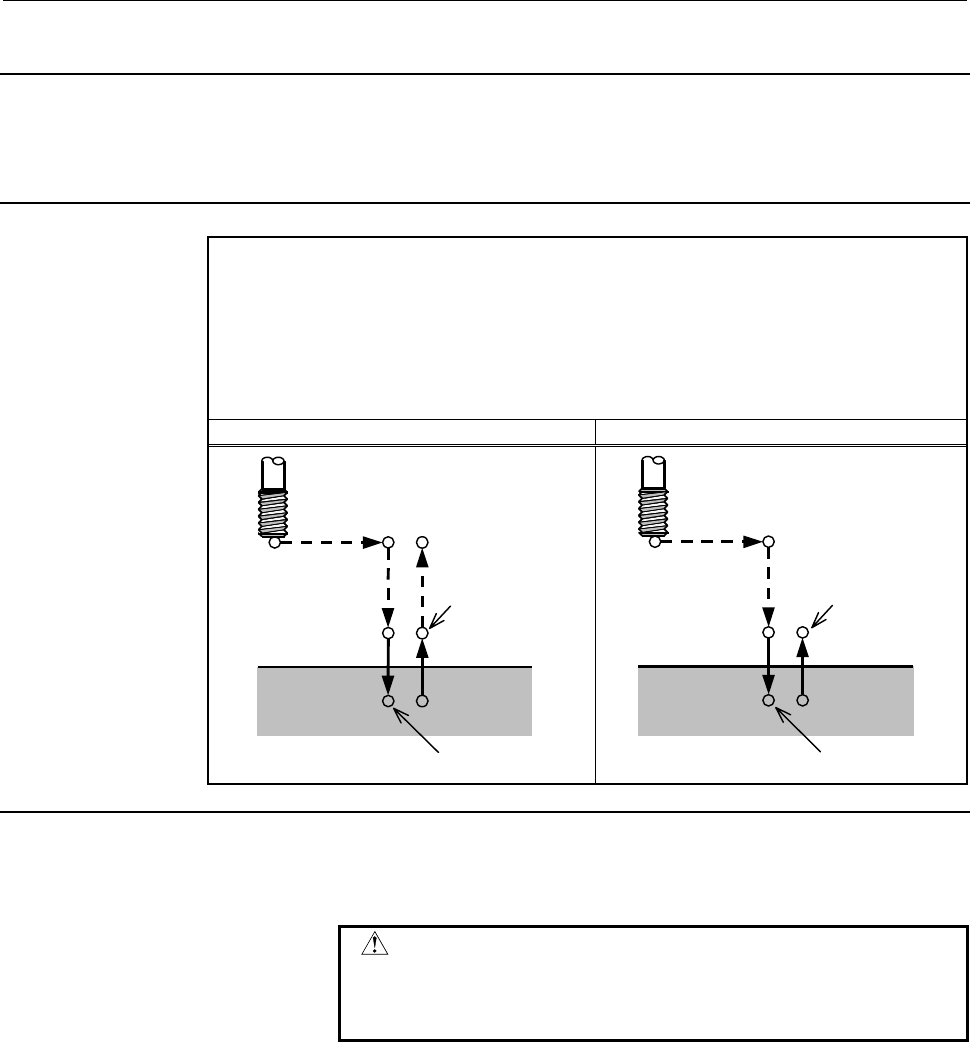

G84 (G98 mode) G84 (G99 mode)

Point R

Point Z

Spindle CCW

Spindle CW

Initial level

Point R

Point Z

Spindle CCW

Spindle CW

Point R level

Explanation

- Operations

Tapping is performed by rotating the spindle clockwise.

CAUTION

Feedrate override is ignored during tapping. In

addition, applying feed hold does not stop the

machine until return operation is completed.

- Spindle rotation

Before specifying G84, use an auxiliary function (M code) to rotate

the spindle.

When drilling in which the distance from the hole position and initial

level to the point R level is short is continuously performed, the

spindle may not reach the normal speed by the time cutting operation

for the hole is ready to be performed. In this case, reserve a time by

inserting dwelling by G04 before each drilling operation without

specifying repetitive count L.

Since this consideration may not be required depending on the

machine type, refer to the manual issued by the machine tool builder.
