5.COMPENSATION FUNCTION PROGRAMMING B-63944EN-1/02

- 194 -

- Command canceling the offset vector temporarily

During offset mode, if G50 (workpiece coordinate system setting) or

G52 (local coordinate system setting) is commanded, the offset vector

is temporarily cancelled and thereafter offset mode is automatically

restored.

In this case, without movement of offset cancel, the tool moves

directly from the intersecting point to the commanded point where

offset vector is canceled.

Also when restored to offset mode, the tool moves directly to the

intersecting point.

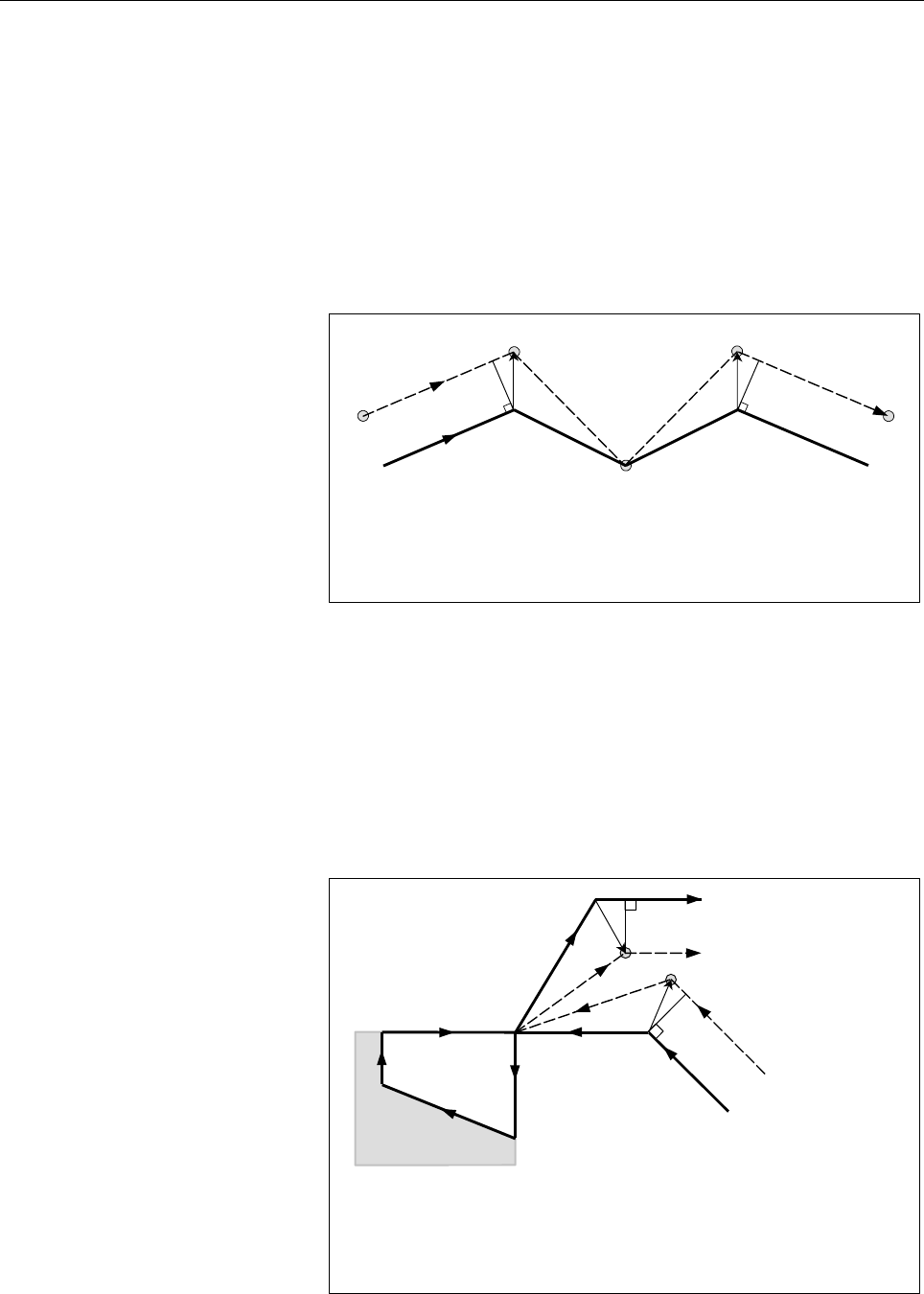

Tool nose radius

center path

Programmed path

G50 block

(G41)

N5 G01 U300.0 W700.0 ;

N6 U-300.0 W600.0 ;

N7 G50 X100.0 Z200.0 ;

N8 G01 X400.0 Z800.0 ;

Before specifying G28 (reference position return), G29 (return from

reference position), G30 (second, third, and fourth reference position

returns), G30.1 (floating reference position return), and G53 (machine

coordinate system selection) commands, cancel offset mode, using

G40. If an attempt is made to specify any of the commands in offset

mode, the offset vector temporarily disappears.

- Canned cycles (G90, G92, G94) and multiple repetitive cycles (G71 to G76)

See the cautions for the tool nose radius compensation related canned

cycles.

Tool nose radius

center path

(G42)

N5 G01 U50.0 W-60.0 ;

N6 W-80.0 ;

N7 G90 U-60.0 W-80.0 R-30.0 ;

N8 G01 U120.0 W50.0 ;

N9 W50.0 ;

N6(G42)

Programmed path
