B-63944EN-1/02 PROGRAMMING 4.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 53 -

Unit

Diameter/radius

programming

Sign

∆d

Depends on the increment

system for the reference

axis.

Radius programming

Not

required

Depends on the increment

system for the reference

axis.

Radius programming

Not

required

∆u

Depends on the increment

system for the reference

axis.

Depends on

diameter/radius

programming for the

second axis on the plane.

Required

∆w

Depends on the increment

system for the reference

axis.

Depends on

diameter/radius

programming for the first

axis on the plane.

Required

(R)

(F)

∆u/2

∆d

’

∆W

Target figure

45°

(F): Cutting feed

(R): Rapid traverse

e: Escaping amount

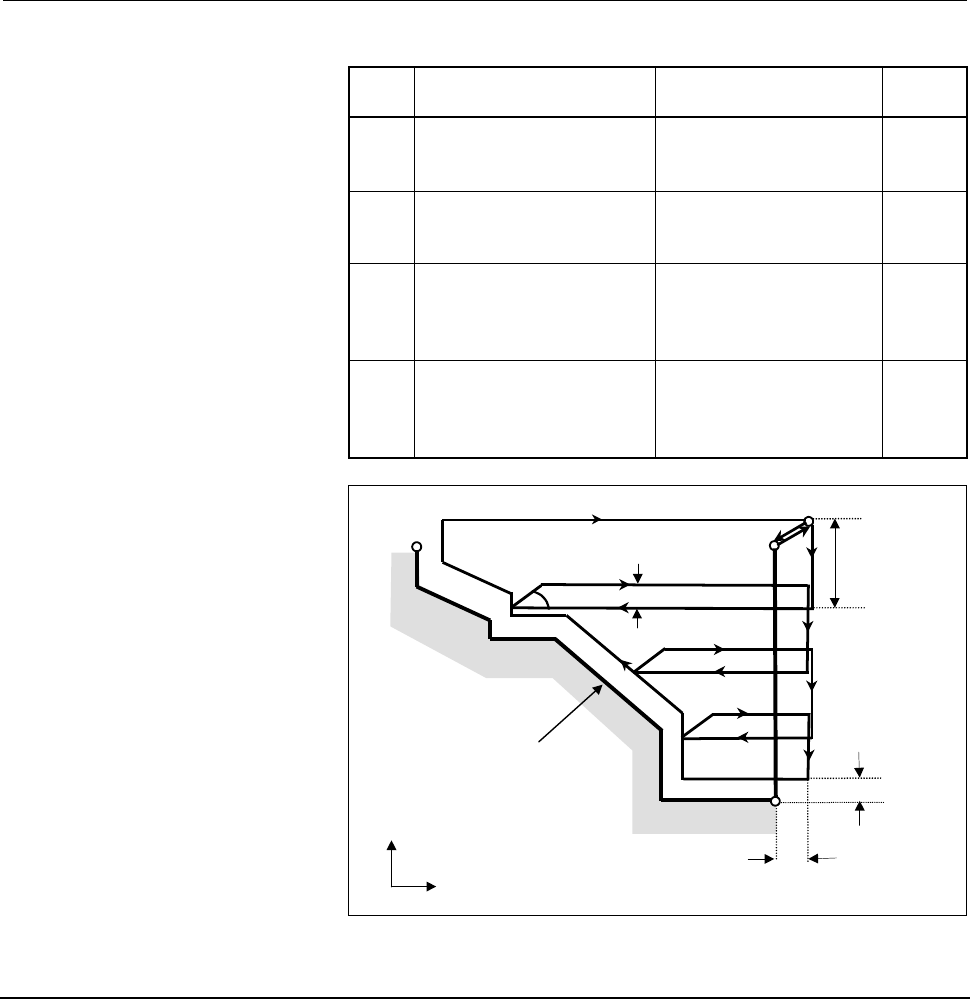

Fig. 4.2.1 (a) Cutting path in stock removal in turning (type I)

Explanation

- Operations

When a target figure passing through A, A', and B in this order is

given by a program, the specified area is removed by ∆d (depth of cut),

with the finishing allowance specified by ∆u/2 and ∆w left. After the

last cutting is performed in the direction of the second axis on the

plane (X-axis for the ZX plane), rough cutting is performed as

finishing along the target figure. After rough cutting as finishing, the

block next to the sequence block specified at Q is executed.
