B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 251 -

6.3.1 Outer Diameter/Internal Diameter Cutting Cycle (G90)

This cycle performs straight or taper cutting in the direction of the

length.

6.3.1.1 Straight cutting cycle

Format

G90X(U)_Z(W)_F_;

X_,Z_ : Coordinates of the cutting end point (point A' in the

figure below) in the direction of the length

U_,W_ : Travel distance to the cutting end point (point A' in

the figure below) in the direction of the length

F_ : Cutting feedrate

X/2

X axis

Z axis

2(F)

3(F)

1(R)

4(R)

U/2

’

(R)....Rapid traverse

(F) ....Cutting feed

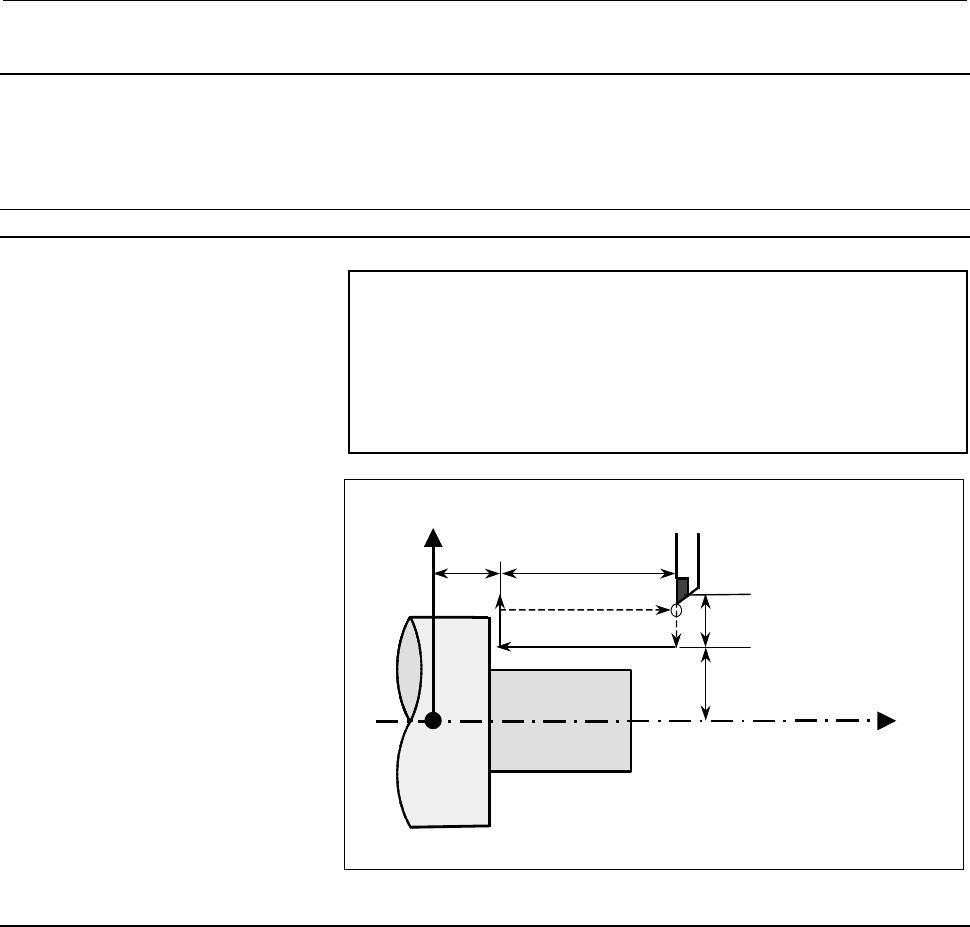

Fig. 6.3.1 (a) Straight cutting cycle

Explanation

- Operations

A straight cutting cycle performs four operations:

(1) Operation 1 moves the tool from the start point (A) to the

specified coordinate of the second axis on the plane (specified

X-coordinate for the ZX plane) in rapid traverse.

(2) Operation 2 moves the tool to the specified coordinate of the first

axis on the plane (specified Z-coordinate for the ZX plane) in

cutting feed. (The tool is moved to the cutting end point (A') in

the direction of the length.)

(3) Operation 3 moves the tool to the start coordinate of the second

axis on the plane (start X-coordinate for the ZX plane) in cutting

feed.

(4) Operation 4 moves the tool to the start coordinate of the first axis

on the plane (start Z-coordinate for the ZX plane) in rapid

traverse. (The tool returns to the start point (A).)
