B-63944EN-1/02 PROGRAMMING 4.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 39 -

4.1.2.2 Taper threading cycle

Format

G92 X(U)_Z(W)_R_F_Q_;

X_,Z_ : Coordinates of the cutting end point (point A' in the

figure below) in the direction of the length

U_,W_ : Travel distance to the cutting end point (point A' in

the figure below) in the direction of the length

Q_ : Angle for shifting the threading start angle

(Increment: 0.001 degrees,

Valid setting range: 0 to 360 degrees)

R_ : Taper amount (R in the figure below)

F_ : Thread lead (L in the figure below)

Detailed chamfered thread

1(R)

Z axis

3(R)

4(R)

2(F)

U/2

X/2

X axis

pprox. 45

(The chamfered angle in the left figure

is 45 degrees or less because of the

delay in the servo system.)

(R) ....Rapid traverse

(F) ....Cutting feed

’

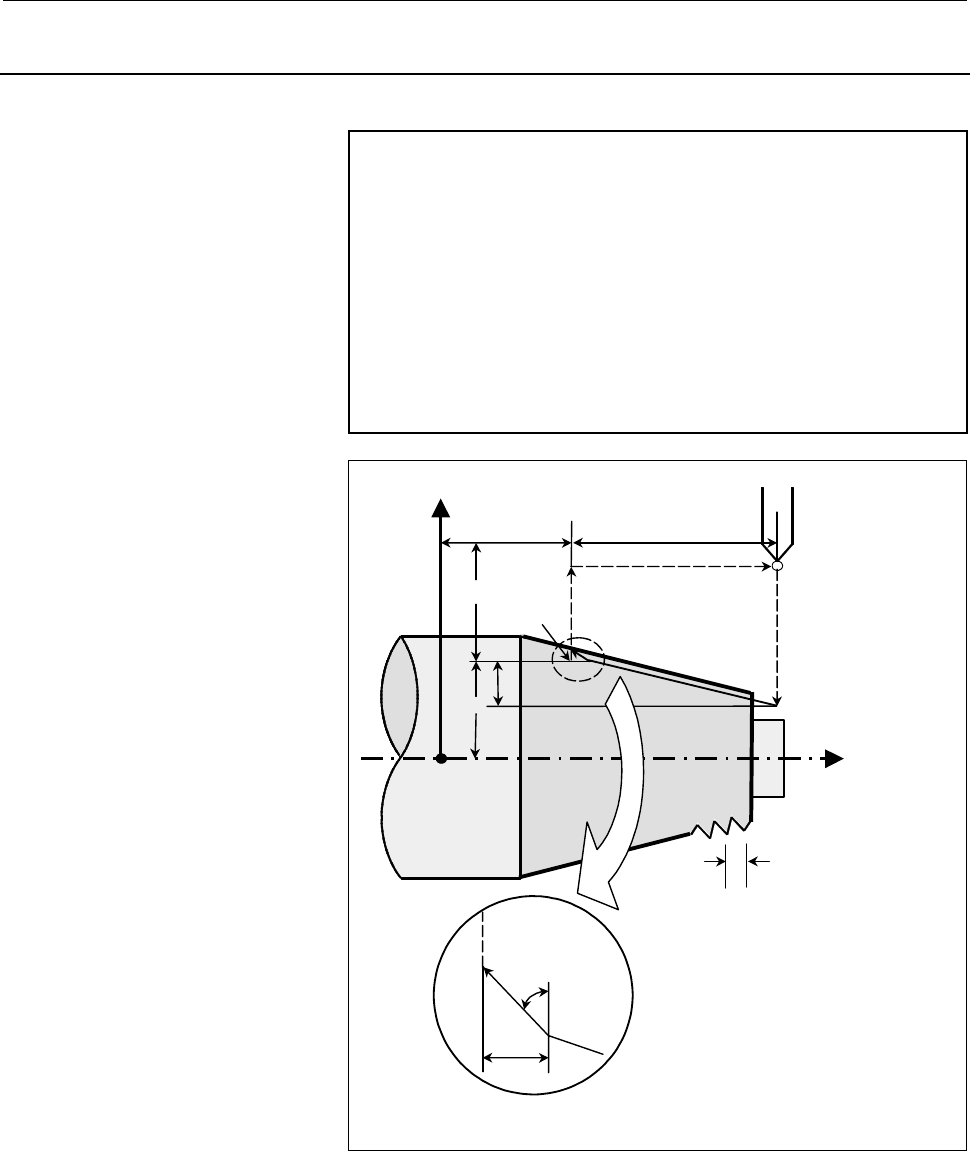

Fig. 4.1.2 (d) Taper threading cycle
