B-63944EN-1/02 PROGRAMMING 7.MUITI-PATH CONTROL FUNCTION

- 337 -

7.1 BALANCE CUT (G68, G69)

Overview

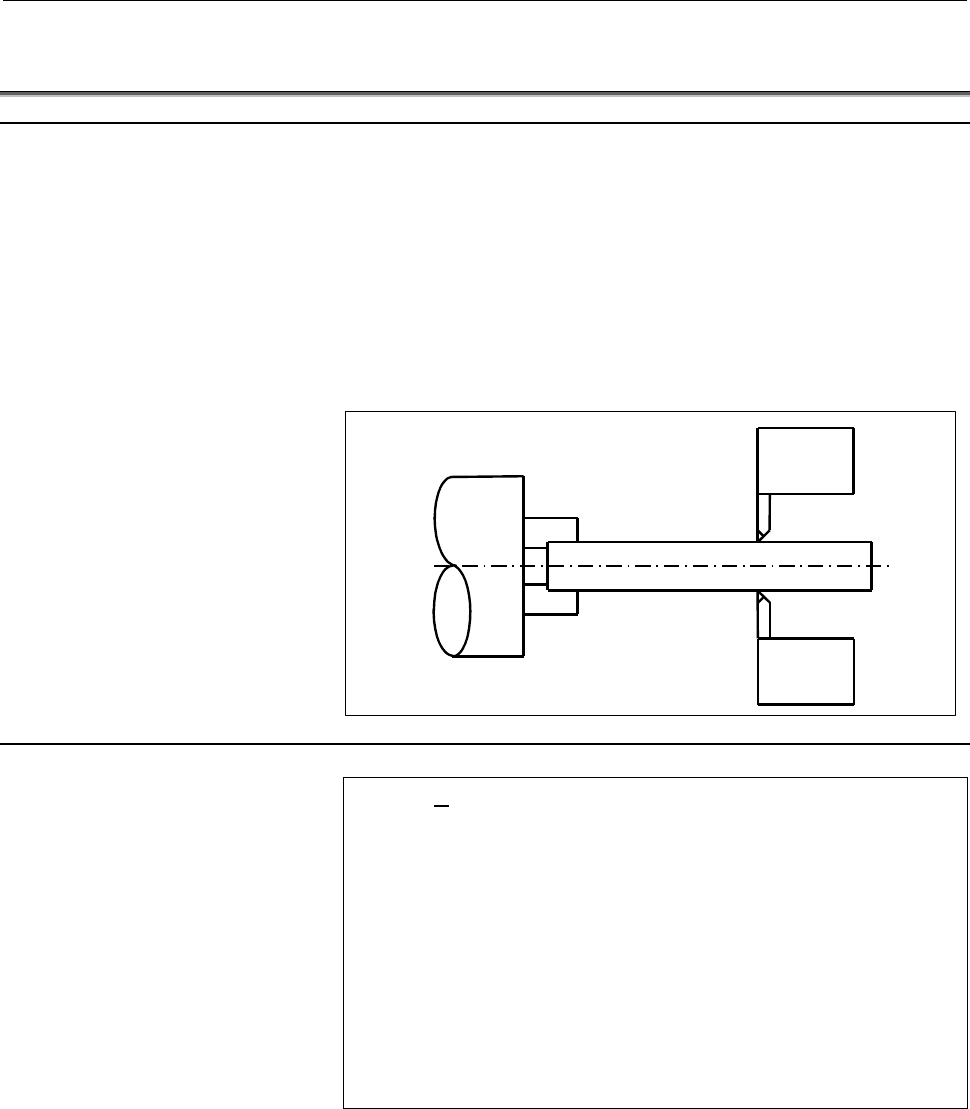

When a thin workpiece is to be machined as shown below, a precision

machining can be achieved by machining each side of the workpiece

with a tool simultaneously; this function can prevent the workpiece

from warpage that can result when only one side is machined at a time

(see the figure below). When both sides are machined at the same

time, the movement of one tool must be in phase with that of the other

tool. Otherwise, the workpiece can vibrate, resulting in poor

machining. With this function, the movement of one tool post can

be easily synchronized with that of the other tool post.

Tool post 1

Tool post 2

Format

G68 (Pp); Balance cut mode on

p: Number which specifies a balance cut combination

(1) In the binary value specification mode, specify the

sum of the binary values corresponding to the

numbers of paths which require balance cutting.

(2) In the path number specification mode, specify the

numbers of all paths that require balance cutting in

combination.

When address P is not specified, balance cutting is

performed for paths 1 and 2.

G69; Balance cut mode cancel
