6.MEMORY OPERATION BY Series 15 FORMAT PROGRAMMING B-63944EN-1/02

- 316 -

Operation 1

Operation 2

Point R level

Initial level

Operation 6

Operation 5

Operation 3

Operation 4

Rapid traverse

Feed

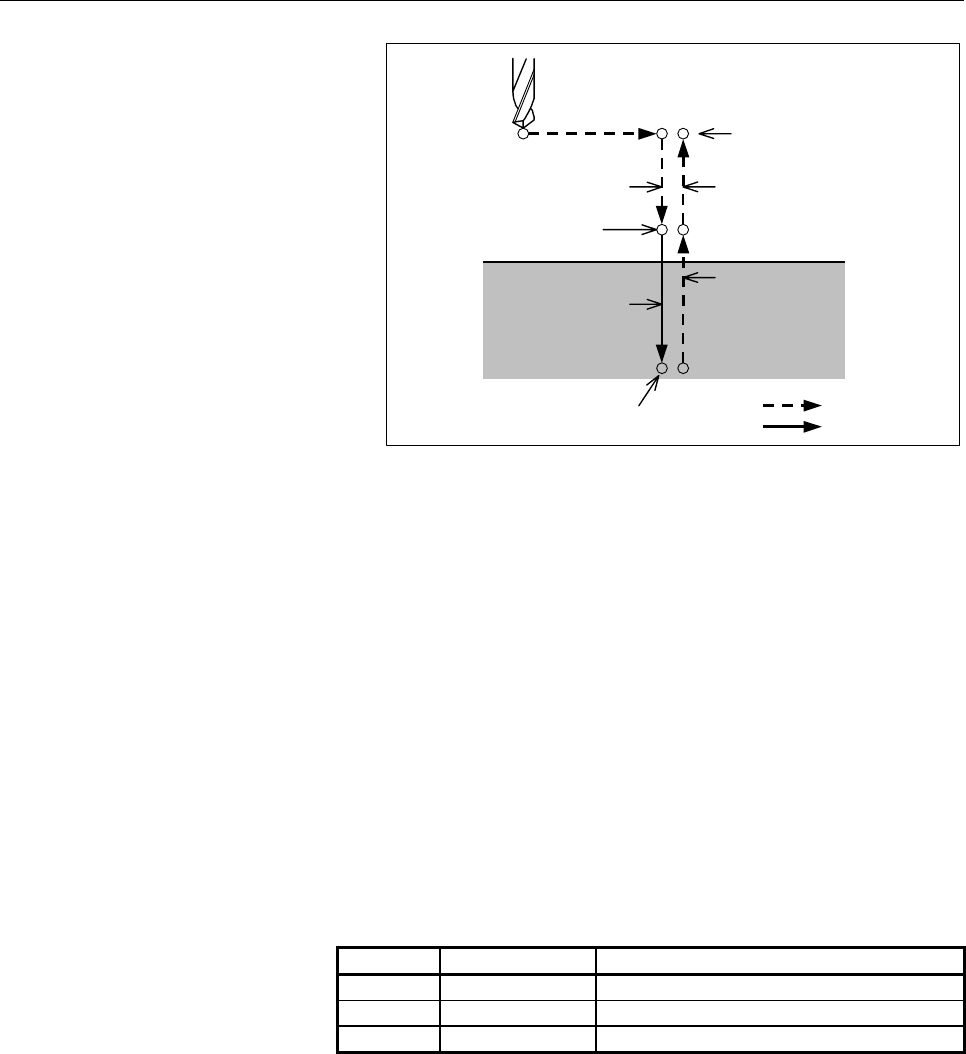

Fig. 6.5 (f) Operation sequence of canned cycle for drilling

- Positioning plane

A positioning plane is determined by plane selection with G17, G18,

and G19.

The axes other than the drilling axis are used as positioning axes.

- Drilling axis

Although canned cycles include tapping and boring cycles as well as

drilling cycles, in this chapter, only the term drilling will be used to

refer to operations implemented with canned cycles.

The basic axis (X, Y, or Z) that does not exist on the positioning plane

or its parallel axis is used as the drilling axis.

The axis address of the drilling axis specified in the same block as the

G codes (G81 to G89) determines whether a basic axis or one of

parallel axes is used as the drilling axis.

If the axis address of the drilling axis is not specified, the basic axis is

used as the drilling axis.

Table 6.5 (b) Positioning plane and drilling axis

G code Positioning plane Drilling axis

G17 Xp-Yp-plane Zp

G18 Zp-Xp-plane Yp

G19 Yp-Zp-plane Xp

Xp : X axis or its parallel axis

Yp : Y axis or its parallel axis

Zp : Z axis or its parallel axis
