B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 281 -

the zone is cut). Then, rough machining as finishing is performed

according to the finishing figure program with finishing

allowances ∆u/2 and ∆w left.

(2) When the rough cutting finishing allowance is specified

Cutting is performed by depth of cut ∆d with cutting allowances

∆u/2+∆i and ∆w+∆k left, and the tool returns to the start point

(A) after the last cutting is performed. Then, rough machining as

finishing is performed along the target figure to remove cutting

allowances ∆i and ∆k.

Upon completion of rough machining as finishing, the block next to

the sequence block specified by Q is executed.

Type II differs from type I in the following points:

(1) In the block with sequence number ns, the two axes forming the

plane (X-axis (U-axis) and Z-axis (W-axis) for the ZX plane)

must be specified. When you want to use type II without

moving the tool along the Z-axis on the ZX plane in the first

block, specify W0.

Example

ZX plane

G71 V10.0 R5.0;

G71 P100 Q200.......;

N100 X(U)_ Z(W)_ ; (Specifies the two axes forming the plane.)

: ;

N200…………;

(2) The figure need not show monotone increase or decrease in the

direction of the second axis on the plane (X-axis for the ZX

plane) and it may have concaves (pockets).

. . .

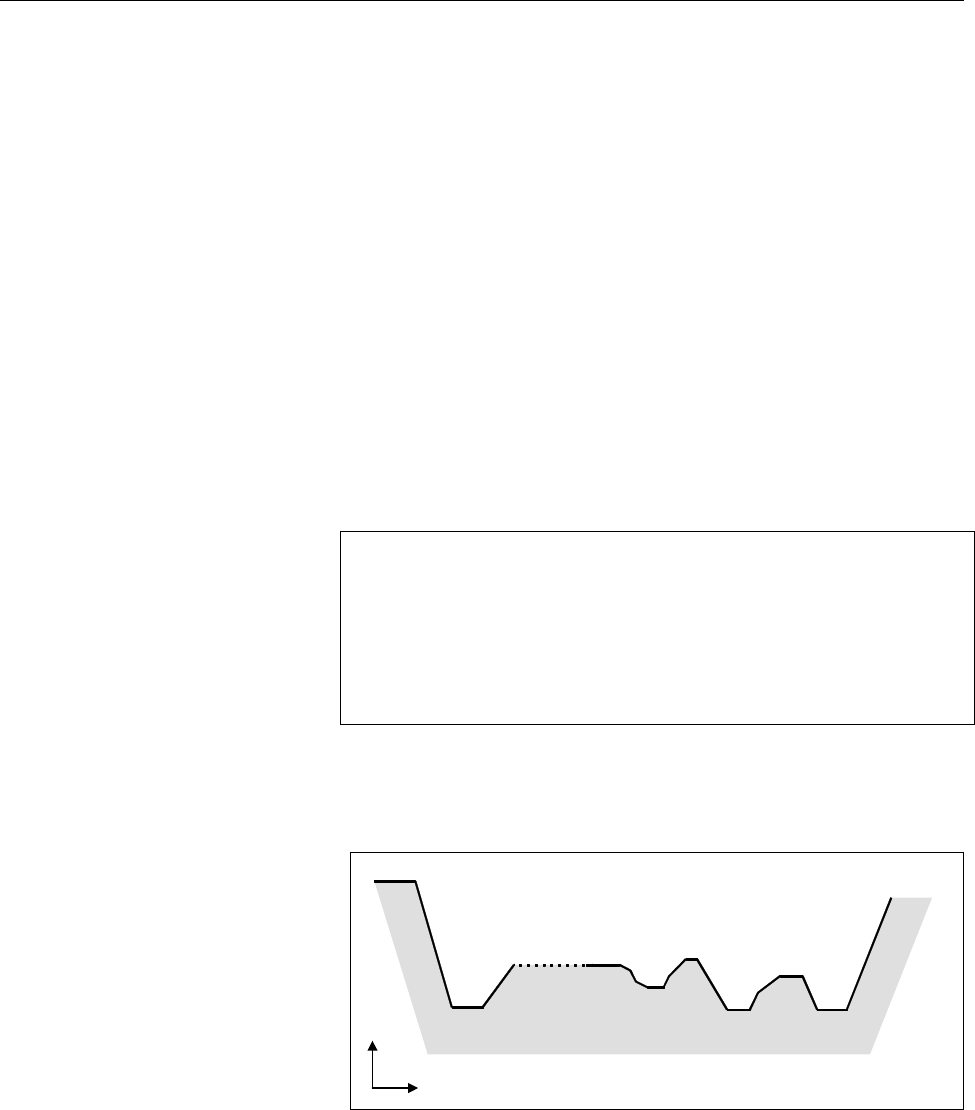

Fig. 6.4.1 (g) Figure having pockets (type II)

The figure must show monotone change in the direction of the

first axis on the plane (Z-axis for the ZX plane), however. The

following figure cannot be machined.
