30i/300i/300is-Model A, 31i/310i/310is-Model A and A5, 32i/320i/320is-Model A Users manual Page 42

Users manual

Page of 476

/ 476

3.INTERPOLATION FUNCTION PROGRAMMING B-63944EN-1/02

- 20 -

3.1 CONSTANT LEAD THREADING (G32)

Tapered screws and scroll threads in addition to equal lead straight

threads can be cut by using a G32 command.

The spindle speed is read from the position coder on the spindle in

real time and converted to a cutting feedrate for feed-per minute mode,

which is used to move the tool.

Straight thread

ered screw

Scroll thread

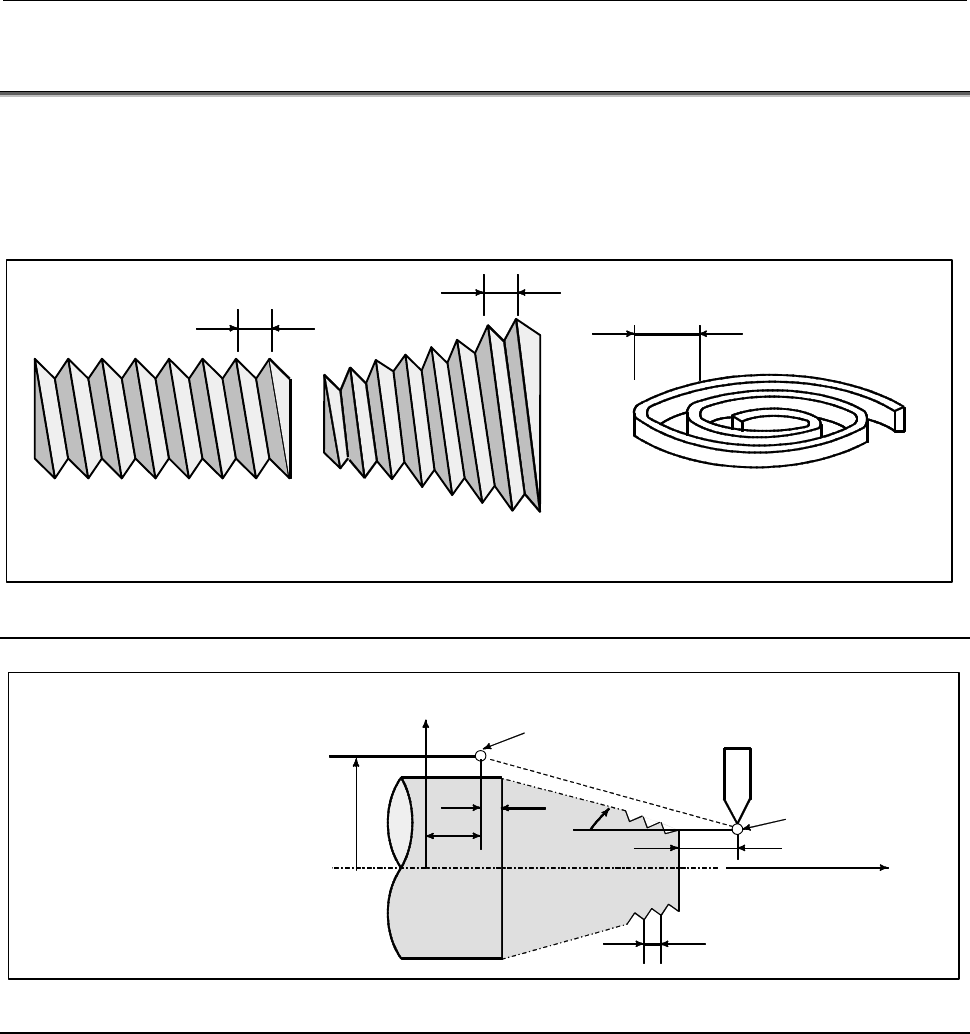

Fig. 3.1 (a) Thread types

Format

X axis

Start point

End point_

Z axis

G32IP_F_;

IP_: End point

F _: Lead of the long axis

(always radius programming)

Fig. 3.1 (b) Example of threading

Explanation

In general, threading is repeated along the same tool path in rough

cutting through finish cutting for a screw. Since threading starts when

the position coder mounted on the spindle outputs a

one-spindle-rotation signal, threading is started at a fixed point and the

tool path on the workpiece is unchanged for repeated threading. Note

that the spindle speed must remain constant from rough cutting

through finish cutting. If not, incorrect thread lead will occur.
