2.SETTING AND DISPLAYING DATA OPERATION B-63944EN-1/02

- 362 -

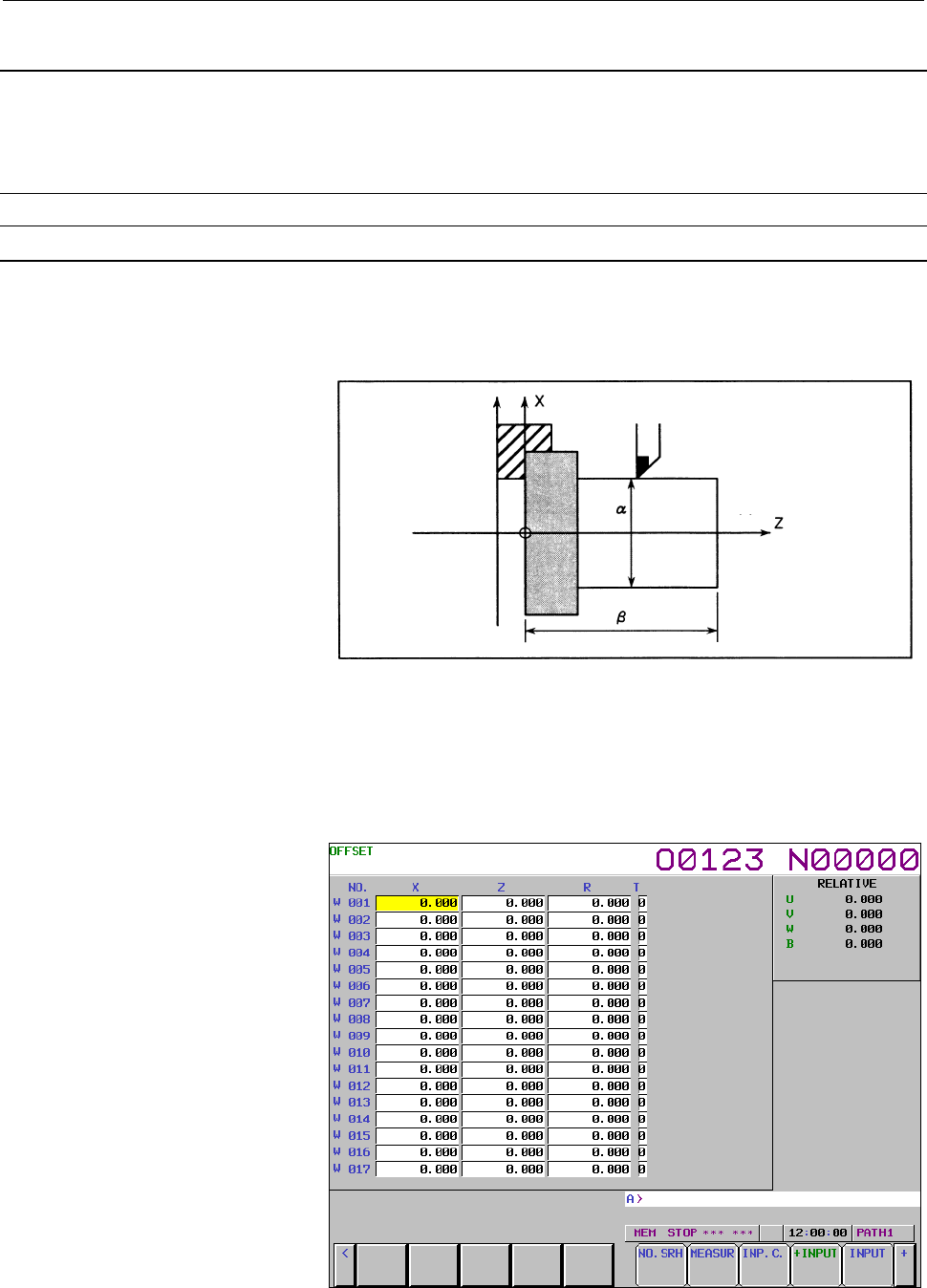

2.1.2 Direct Input of Tool Offset Value

To set the difference between the tool reference position used in

programming (the nose of the standard tool, turret center, etc.) and the

tool nose position of a tool actually used as an offset value.

Direct input of tool offset value

Procedure

- Setting of Z axis offset value

1 Cut surface A in manual mode with an actual tool.

Suppose that a workpiece coordinate system has been set.

Surface B

Surface A

Fig. 2.1.2 (a)

2 Release the tool in X-axis direction only, without moving Z-axis

and stop the spindle.

3 Measure distance β from the origin in the workpiece coordinate

system to surface A.

Set this value as the measured value along the Z-axis for the

desired offset number, using the following procedure:

Fig. 2.1.2 (b)
