2.SETTING AND DISPLAYING DATA OPERATION B-63944EN-1/02

- 378 -

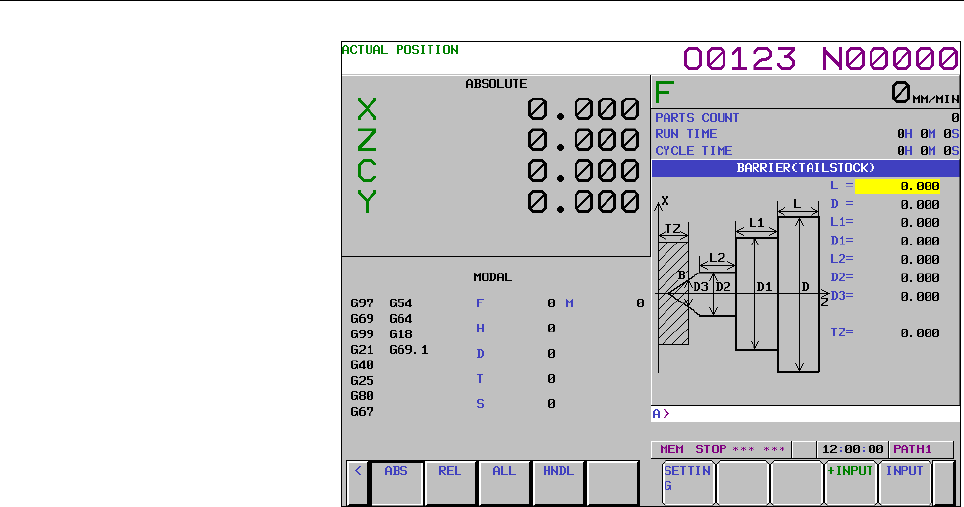

Fig. 2.1.8 (b) Tail stock barrier setting screen

4 Position the cursor to each item defining the shape of the chuck

or tail stock, enter the corresponding value, then press the

[INPUT] soft key. The value is set. Pressing the [+INPUT] soft

key after a value has been entered adds the entered value to the

current value, the new setting being the sum of the two values.

Items CX and CZ, both on the chuck barrier setting screen, and

item TZ on the tail stock barrier setting screen can also be set in

another way. Manually move the tool to the desired position,

then press the [SETTING] soft key to set the coordinate(s) of the

tool in the workpiece coordinate system. If a tool having an

offset other than 0 is manually moved to the desired position

with no compensation applied, compensate for the tool offset in

the set coordinate system. Items other than CX, CZ, and TZ

cannot be set by using the [SETTING] soft key.

Example

When an alarm is issued, the tool stops before the

entry-inhibition area if bit 7 (BFA) of parameter No. 1300 is

set to 1. If bit 7 (BFA) of parameter No. 1300 is set to 0,

the tool stops at a more inside position than the specified

figure because the CNC and machine system stop with some

delay in time.

For safety, therefore, set an area a little larger than the

determined area. The distance between the boundaries of

these two areas, L, is calculated from the following equation,

based on the rapid traverse rate.

L = (Rapid traverse rate) ×

　１

7500

When the rapid traverse rate is 15 m/min, for example, set

an area having a boundary 2 mm outside that of the

determined area.

The shapes of the chuck and tail stock can be set using

parameters Nos. 1330 to 1348
