B-63944EN-1/02 PROGRAMMING 5.COMPENSATION FUNCTION

- 173 -

If start-up is specified in circular interpolation (G02, G03) mode,

alarm PS0034 will occur.

As a start-up operation, one of the three types A, B, and C can be

selected by setting parameter SUP (No. 5003#0) and parameter SUV

(No. 5003#1) appropriately. The operation to be performed if the

tool moves around an inner side is of single type only.

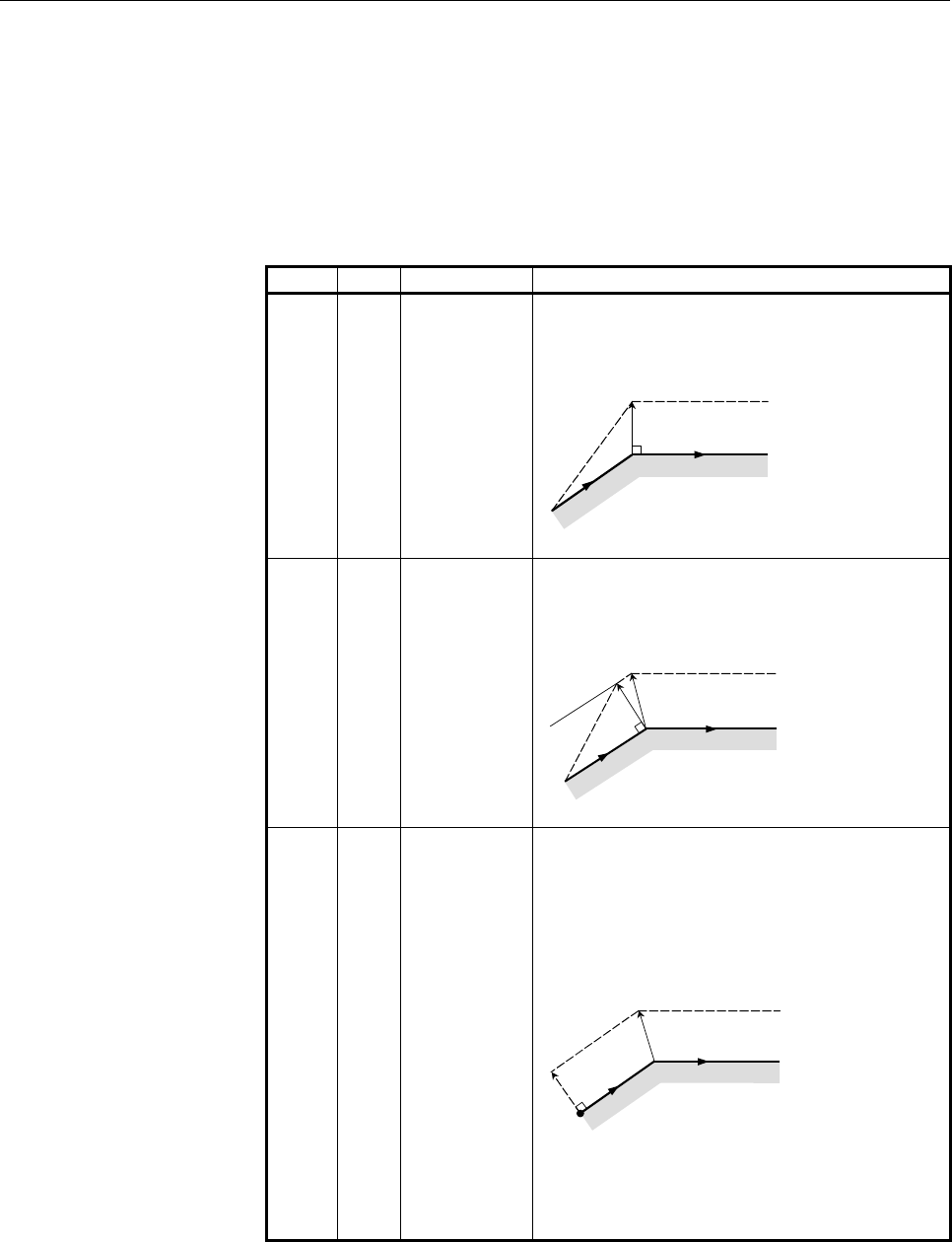

Table 5.4.1 (a) Start-up/cancel operation

SUV SUP Type Operation

0 0 Type A A compensation vector is output, which is vertical

to the block subsequent to the start-up block and

the block preceding the cancel block.

G41

Tool nose radius center path

Programmed path

0 1 Type B A compensation vector is output, which is vertical

to the start-up block and the cancel block. An

intersection vector is also output.

G41

Intersection

Tool nose radius center path

Programmed path

1 0

Type C When the start-up block and the cancel block are

blocks without tool movement, the tool moves by

the cutter or tool nose radius compensation value

in the direction vertical to the block subsequent to

the start-up block and the block preceding the

cancel block.

G41

Intersection

Tool nose radius center path

Programmed path

Programmed

path

For a block with tool movement, the tool follows

the SUP setting: If it is 0, type A is assumed and if

1, type B is assumed.
