B-63944EN-1/02 PROGRAMMING 4.FUNCTIONS TO SIMPLIFY PROGRAMMING

- 67 -

Explanation

- Operations

When a target figure passing through A, A', and B in this order is

given by a program, the specified area is removed by ∆d (depth of cut),

with the finishing allowance specified by ∆u/2 and ∆w left.

NOTE

1 While both ∆d and ∆u are specified by the same

address, the meanings of them are determined by

the presence of addresses P and Q.

2 The cycle machining is performed by G72

command with P and Q specification.

3 F, S, and T functions which are specified in the

move command between points A and B are

ineffective and those specified in G72 block or the

previous block are effective. M and second

auxiliary functions are treated in the same way as

F, S, and T functions.

4 When an option of constant surface speed control

is selected, G96 or G97 command specified in the

move command between points A and B are

ineffective, and that specified in G72 block or the

previous block is effective.

- Target figure

Patterns

The following four cutting patterns are considered. All of these

cutting cycles cut the workpiece with moving the tool in parallel to the

second axis on the plane (X-axis for the ZX plane). The signs of ∆u

and ∆w are as follows:

Both linear and circular

interpolation are possible

U(-)...W(+)...

U(-)...W(-)...

U(+)...W(+)...

U(+)...W(-)...

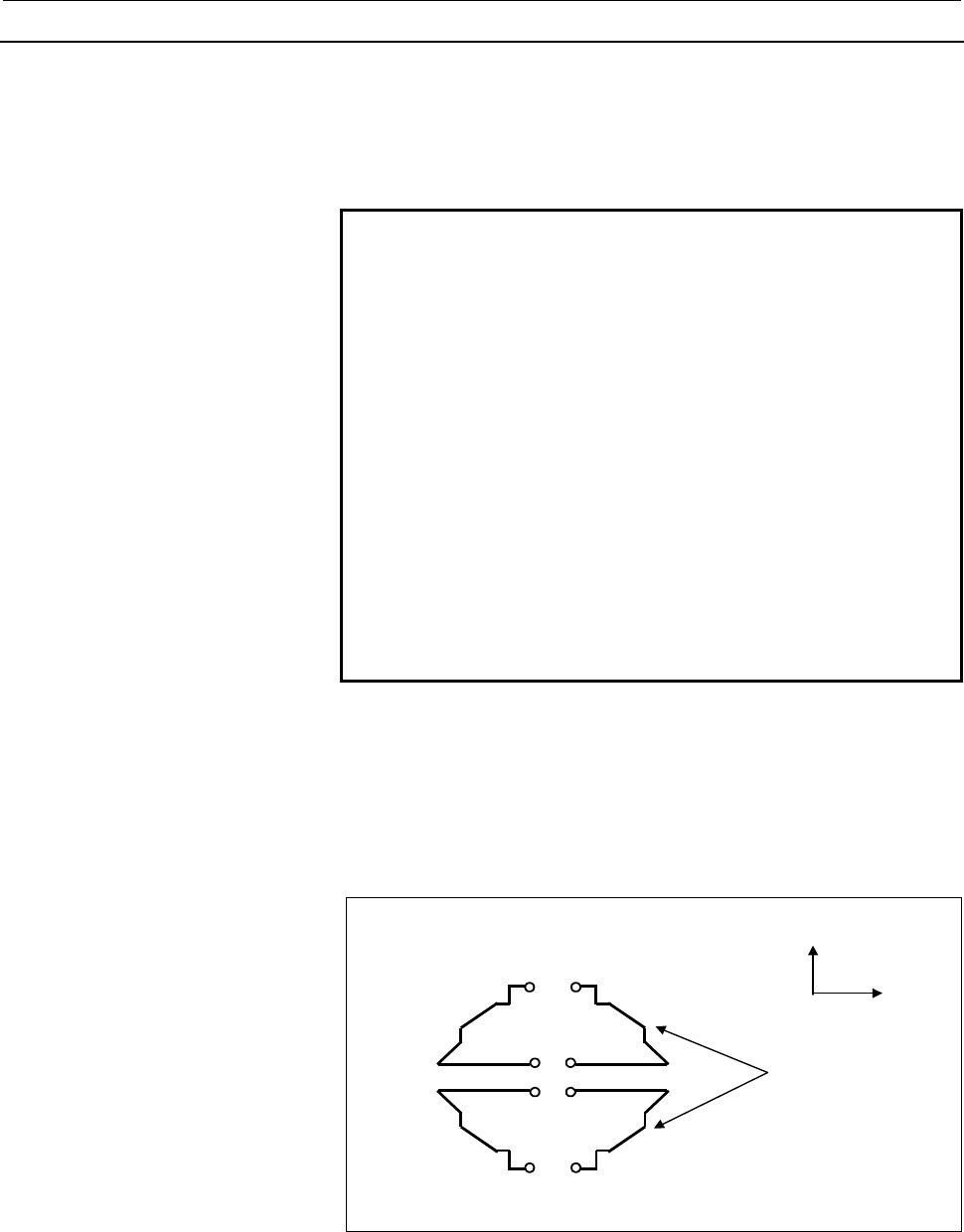

Fig. 4.2.2 (r) Signs of the values specified at U and W in stock removal
