6.MEMORY OPERATION BY Series 15 FORMAT PROGRAMMING B-63944EN-1/02

- 254 -

- Operations

A taper cutting cycle performs the same four operations as a straight

cutting cycle.

However, operation 1 moves the tool from the start point (A) to the

position obtained by adding the taper amount to the specified

coordinate of the second axis on the plane (specified X-coordinate for

the ZX plane) in rapid traverse.

Operations 2, 3, and 4 after operation 1 are the same as for a straight

cutting cycle.

NOTE

In single block mode, operations 1, 2, 3, and 4 are

performed by pressing the cycle start button once.

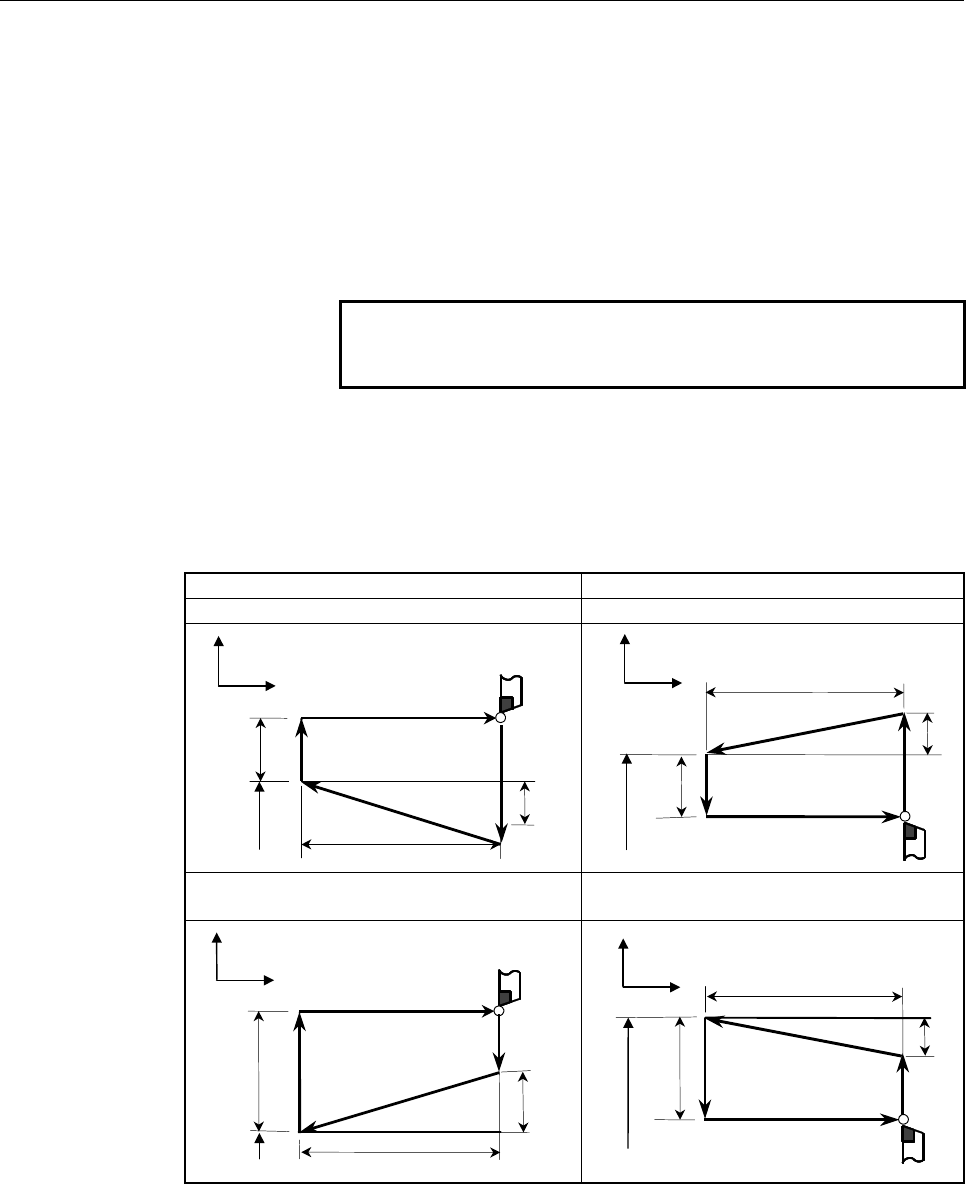

- Relationship between the sign of the taper amount and tool path

The tool path is determined according to the relationship between the

sign of the taper amount (address I, J, or K) and the cutting end point

in the direction of the length in the absolute or incremental

programming as follows.

Outer diameter machining Internal diameter machining

1. U < 0, W < 0, I < 0 2. U > 0, W < 0, I > 0

U/2

3(F)

4(R)

1(R)

2(F)

U/2 3(F)

4(R)

1(R)

2(F)

3. U < 0, W < 0, I > 0

at |I|≤|U/2|

4. U > 0, W < 0, I < 0

at |I|≤|U/2|

U/2

3(F)

4(R)

1(R)

2(F)

U/2

3(F)

4(R)

1(R)

2(F)

- Canceling the mode

To cancel the canned cycle mode, specify a group 01 G code other

than G90, G92, or G94.
