B-63944EN-1/02 PROGRAMMING 6.MEMORY OPERATION BY Series 15 FORMAT

- 327 -

6.5.4 Peck Drilling Cycle (G83)

Peck drilling is performed.

Cutting feed is performed intermittently to the bottom of the hole

while chips are discharged.

Format

G83 X_ Y_ Z_ R_ P_ Q_ F_ L_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time

Q_ : Depth of cut for each cutting feed

F_ : Cutting feedrate

L_ : Number of repeats (When it is needed.)

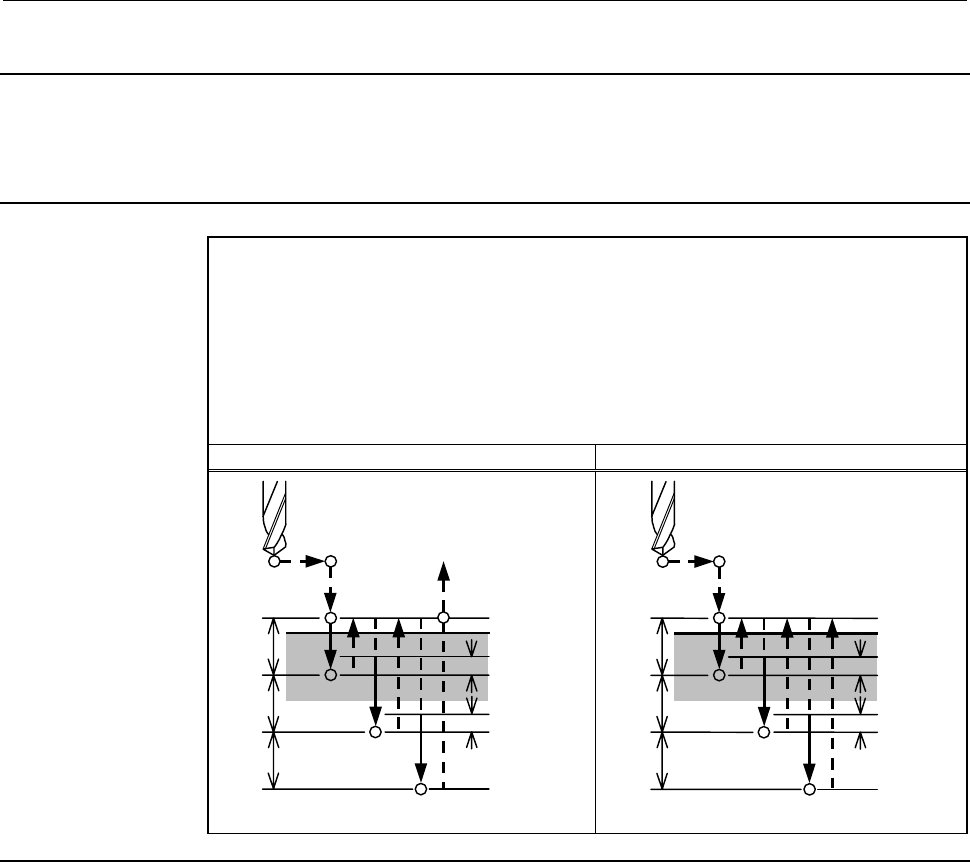

G83 (G98 mode) G83 (G99 mode)

Point R

Point Z

Initial level

Point R

Point Z

Point R level

Explanation

- Operations

Q indicates the depth of cut for each operation and is specified by an

incremental value.

In the second and later cutting operations, rapid traverse is changed to

cutting feed at the point distance "d" back from the previously drilled

position. "d" is set in parameter No. 5115.

A positive value must be specified for Q. A negative value is

ignored.

- Spindle rotation

Before specifying G83, use an auxiliary function (M code) to rotate

the spindle.

- Auxiliary function

If the G83 command and an M code are specified in the same block,

the M code is executed at the first positioning. When repetitive count

L is specified, the operation above is performed for the first time and

the M code is not performed second and later times.
